Configure Basic Features

Before You Begin

Before you begin the initial software configuration of VOS devices, do the following:

• Create an Analytics cluster to capture the log information from the VOS devices. See Set Up Analytics in Perform Initial Software Configuration.

Also, you can optionally do the following:

• Change the default private IP address space
• Change the AS number of the MP-BGP overlay network

By default, the Director node uses the IP prefix 10.0.0.0/8 when generating overlay IP addresses for each branch. To change to a different private address space, issue the following command on the primary (active) Director node in configuration mode. In this command, ip-prefix can be 10.0.0.0/8, 172.16.0.0/12, or 192.168.0.0/16, and number can be 64, 128, 256, 512, 1024, or 2048. If the number of organizations is greater than 128, the IP prefix must be 10.0.0.0/8.

Administrator@Director1% set nms sdwan overlay-address-scheme ipv4-prefix ip-prefix maximum-organizations number

For example:

Administrator@Director1% set nms sdwan overlay-address-scheme ipv4-prefix 192.168.0.0/16 maximum-organizations 128

By default, the SD-WAN overlay network uses AS number 64512 when establishing MP-IBGP adjacencies between Controllers and VOS branch devices. To change to a different 4-byte AS number, issue the following command on the primary (active) Director node in configuration mode. In this command, number can be a value from 1 through 4294967295.

Administrator@Director1% set nms sdwan global-config overlay-mpbgp-as number

For example:

Administrator@Director1% set nms sdwan global-config overlay-mpbgp-as 755128

Create Provider Organizations

An organization is a group of devices covered by a single software license. An organization includes VOS, Versa Analytics, Versa Director, and Versa Controller devices.

For provider organizations, the VOS device can support either single tenants or multiple tenants. Single tenancy is a single organization that has no child, or subordinate, organizations. Multitenancy comprises a parent-child organization hierarchy that shares hardware resources, resulting in savings in setup time and operational costs. The software license plan associated with the parent organization is automatically inherited by the child organizations.

You create provider organizations using Versa Director Workflows. This is the recommended method. However, you can also create them manually.

After you create an organization, you need to create at least one "admin" user, and it is recommended that you create at least one other, non-admin user.

root@gotham­cli(config)% set system users john password john123 login shell role admin
root@gotham­cli(config)% show | compare
 system {
    users john {
        password $1$GYdCkdSz$yiukA.B95.M8vbF3jl1pp0;
        ssh­public­key laptop {
            "ssh­rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQCyhCqGWaZmpji
xaKVqjK2Ij4QUaJuiA1T+pSTveaJxrNSiCWzfKibY+
y/QV0a3+0Y4SQ5W9gkyMbL6Mrk1afqnznp5y20gMIbt
ul58aJ/Q09Ygu2qg4ULb7iUgHBzwunk2hViKez06yMD
jbsE3JGvk5chffSbWXWrkObgwcHkn6KPLiYSW0cEbVS
Qa1bbF7GSJhIX6QWR17IWjp7MiD569aYxf6rI/WdjSI
StO1p7mm01Y93sXnYn7hLs+8mmgV7aF18ZLtMy6x6of
b7yoyov/UQZA9L7+Wy0YtHJ+BF5oM1reG7FwxBHdwbq
p/ZqKF3R9kisxDAEWbsQBcVTSYl mmehra@quake";
        }
        login shell;
        role admin;
    }
}

ssh 'john@kayak'@77.1.1.1 ­p 2024    (or)
ssh 77.1.1.1 ­l john@kayak ­p 2024
root@gotham­cli(config)% set orgs org Customer1 users john role tenant­admin
root@gotham­cli(config)% show | compare
 orgs {
     org Kayak {
       users john {
            password $1$atCDHNyk$aaHOaHcP76UXyCKV7ymoz/;
            role tenant­admin;
       }
    }
 }

root@­cli(config)% show system users
users admin {
    login shell;
    role  admin;
}
users versa {
    login shell;
    role  admin;
}

Create Customer Organizations

If your organization has customers (also called tenants), you configure organizations for them.

In Releases 22.1.1 and later, you use a workflow wizard to create a customer organization.

To add a customer organization:

1. In Director view, select the Workflows tab in the top menu bar.
2. Select Infrastructure > Organizations in the horizontal menu bar.


3. Click the Add icon.
4. Click Step 1, Basic. The Configure Basic screen displays. Enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the organization.
   Global Organization ID	The value for this field is automatically populated with the next available organization identifier. You can change the value. The organization ID must be unique across the network. Range: 1 through 31
   Parent	For multitenancy, select the name of the parent organization.
   IKE Authentication	Select the IKE authentication mode, PSK or PKI. If you select PKI, you can select a CA profile. When you select PKI, The Certificate Signing Request screen displays as Step 3.
   PSK	Click to enable preshared key IKE authentication.
   PKI	Click to enable public key infrastructure authentication and select the staging and post stating CA agent.
   Staging CA Agent	Select the CA agent for certificate agent (CA) for staging templates. The profiles displayed are those that you created, as described in Configure a Common Certificate Authority.
   Post Staging CA Agent	Select the CA agent for certificate agent (CA) for post staging templates. The profiles displayed are those that you created, as described in Configure a Common Certificate Authority.
   SCP	Shared control plane.
   Shared Control Plane	For multitenancy, click to have the organization share the control (management) plane with its parent organization or organizations. When you enable a shared control plane, the organization shares the control VR routing instance and the IPsec tunnels to the Controller nodes with its parent organization. The organization does not have either its own control VR routing instance or its own IPsec tunnels to the Controller nodes.
   CPE Deployment Type	Select a CPE deployment type.

5. Click Save to save the configuration, or click Next to continue. The Step 2, Configure Controller screen displays. Enter information for the following fields.




   Field	Description
   Controllers	Search for the Controller node or Controller nodes to associate with the organization, and click the Add icon to add them.
   WAN Interfaces	Select the WAN interface to associate with the organization or or click Select All and Add icon to add the interface or interfaces.

6. Click Save to save the configuration, or click Next to continue. The Step 3, Configure Certificate Signing Request screen displays. Note that this screen displays only if you select PKI as the IKE authentication option in the Basic screen. This screen displays the Controller nodes associated with a common CA profile.


7. To update the certificate signing request (CSR), click the controller. The Certificate Signing Request popup screen displays. The parameters depend on the values for which the CA authenticates the CSR. Enter information for the following fields.




   Field	Description
   Controller Name	Displays the name of the Controller node
   Authentication ID	Enter the authentication identifier for the CSR.
   Common Name (Required)	Enter the name of the certificate. The name is an identity that you also must configure on the certificate authority server. Both names must match so that the CA server cam issue the certificate.
   Email ID	Enter the email address of the user who downloads the certificate. This email address must be registered on the CA server.
   Shared Key (Required)	Enter the shared key to authenticate the certificate request. The shared key is a password and must match the shared key on the server.
   Country	Enter the two-letter ISO abbreviation for the country. For example, US.
   State Province	Enter th state or province where the organization is legally located, for example, California. It is recommended that you avoid abbreviations.
   Locality	Enter the city or locality where the organization is legally located. For example, Santa Clara or SC.
   Organization	Enter the exact legal name of your organization. Do not abbreviate the organization name. For example, versa-networks.com.
   Organization Unit	Enter the section of the organization. For example, IT.
   Validity	Enter the validity length of the certificate, in days. For example, 365.
   Private Key Size	Enter the size for generating a key pair.
   Auto Renewal	Click to enable automatic renewal of the generated certificate.
   Cert Domain	Select the domain to which the certificate applies. The certificate domain is either systemwide or per tenant.
   Renew Threshold	Enter the certificate renewal threshold value, which is a percentage of the certificate validity time. Range: 50 through 99 percent Default: 75 percent
   Expiry Alarm Threshold	Enter the certificate expiration alarm threshold value, which is a percentage of the certificate validity time. Range: 50 through 99 percent Default: 80 percent
   Network Name	Select the type of network to use.
   Subject Alternate Name	Enter the DNS hostname, and then click the Add icon to add it. It can be the domain name, a wildcard, or an IP address.

8. Click Save to save the configuration, or click Next to continue. The Step 4, Configure Routing Instance screen displays where you can define virtual routing instances for the organization.


9. Click the + Add icon to add routing instances. The Configure Create Routing Instance popup screen displays. Enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the routing instance.
   Description	Enter a text description for the routing instance.
   ID	Enter a numeric identifier for the routing instance.
   VPN	Click to enable a VPN on the routing instance.

10. Click Save to save the configuration, or click Next to continue. The Step 5, Configure CMS Connector screen displays. Enter information for the following fields.




    Field	Description
    Available	Search for the CMS connector or connectors to associate with the organization, and then click Add All to select them.
    Selected	Lists the connectors associated with the organization.

11. Click Save to save the configuration, or click Next to continue. The Step 6, Configure Analytics Cluster screen displays. Select the Analytics cluster or clusters to associate with the organization.


12. Click Save to save the configuration, or click Next to continue. The Step 7, Configure Supported User Roles screen displays. Enter information for the following fields.




    Field	Description
    Available	Search for the user role or roles to associate with the organization, and then click Add All to select them.
    Selected	Lists the roles associated with the organization.

13. Click Save to save the configuration, or click Next to continue. The Step 8, Configure VSA Subscription screen displays. You can configure the number of Versa Secure Access (VSA) licenses for both basic and advanced users per organization using Versa Director. Enter information for the following fields.




    Field	Description
    VSA Basic Users	Enter the number of VSA basic users for the organization. The minimum number of basic users is 50.
    VSA Advanced Users	Enter the number of VSA advanced users for the organization. The minimum number of advanced users is 50.
    VSA Basic License Period	Enter the license period for VSA basic users. The license period can be 1, 3, or 5 years.
    VSA Advanced License Period	Enter the license period for VSA basic users. The license period can be 1, 3, or 5 years.

14. Click Save to save the configuration, or click Next to continue. The Step 8, Review screen displays.


15. Click Save to add the organization.
16. Click Deploy to onboard the organization. The main pane displays the new organization as well as other organizations.

Add a Controller Node

You can deploy a Controller node on a bare-metal server or on a virtual machine (VM). For redundancy, configure two Controller nodes that operate in active-active mode.

In Releases 22.1.1 and later, you use a workflow wizard to create a Controller node.

To add a Controller node:

1. In Director view, select the Workflows tab in the top menu bar.
2. Select Infrastructure > Controllers in the horizontal menu bar.


3. Click the Add icon.
4. Click Step 1, Basic. The Configure Basic screen displays. Enter information for the following fields.




   Field	Description
   Name	Enter a name for the Controller node.
   Provider Organization	Select the name of the provider organization. When you select a provider organization that uses PKI-based IKE authentication, the Certificate Signing Request screen displays as Step 6. For more information, see Configure a Common Certificate Authority.
   Global Controller ID	ID assigned to the controller. The system populates the value automatically with the next available ID. You can change it to a different available value. Range: 1 through 511
   Staging Controller	Click to enable the Controller node to be a staging Controller node.
   Post-Staging Controller	Click to enable the Controller node to be a post-staging Controller node
   Resource (Group of Fields)
   Bare Metal	Click to deploy the Controller node on a bare-metal platform.
   IP Address	Enter the IP address of the interface address to the bare-metal server or VM.
   Peer Controllers	When you are configuring two Controller nodes for active-active mode (for redundancy), select the Controller node that is the peer of this new Controller node. When you deploy the new Controller node, the configuration is pushed to both the new Controller node and the peer Controller node. The new Controller node then establishes an IPsec tunnel and an MP-BGP session with the peer Controller node that the two Controller nodes use for communication between each other, and they form a mesh of route reflectors.
   Suborganizations	Select the suborganization to autoprovision on the Controller node.

5. Click Save to save the configuration, or click Next to continue. The Step 2, Configure Analytics Cluster screen displays. Enter information for the following fields.




   Field	Description
   Analytics Cluster	Click to select a configured analytics cluster. The Controller node sends the analytics logs to the selected cluster. If you select this, Analytics Group is disabled and vice versa. Click + Add New to create an analytics cluster.
   Analytics Group	Click to select a configured analytics group. The Controller node sends the analytics logs to the selected group. Click + Add New to create an analytics group.

6. Click Save to save the configuration, or click Next to continue. The Step 3, Configure Local Information screen displays. Enter the Controller's location information, and then click Get Coordinates to automatically populate the latitude and longitude from the controller address.


7. Click Save to save the configuration, or click Next to continue. The Step 4, Configure Control Network screen displays. You can configure the Controller node's control network interface, which is the interface that connects the Controller node to the Director node and that facilitates communication from the Director node, through the Controller node, to the branch VOS devices. Enter information for the following fields.




   Field	Description
   Network Name	Enter a name for the network.
   Interface	Select the interface to use for the network.
   VLAN ID	Enter the VLAN ID of the network.
   IP Address/Prefix	Enter the IP prefix and prefix length of the network.
   DHCP	Click to enable DHCP, to automatically allocate the network IP address.
   Gateway	Enter the IP address of the gateway device.
   Routing Protocol (Group of Fields)	Select the routing protocol to use.
   None	Click to not use a routing protocol.
   BGP	Click to use BGP. Enter information for the following fields. Peer IP Address—Enter the IP address of the BGP routing peer. Peer AS Number—Enter the peer's AS number.
   OSPF	Click to use OSPF. Enter information for the following fields.   Area ID—Enter the Controller's area ID.
   Static	Click to use static routes. Enter information for the following fields. Prefix—Enter the prefix for the static route. Next Hop—Enter the next hop for the static route. Then, click the Add icon.

8. Click Save to save the configuration, or click Next to continue. The Step 5, Configure Control Network screen displays. You enter information about the interfaces that the Controller uses to communicate with remote branches. Enter information for the following fields.




   Field	Description
   Interface	Displays the Controller interfaces. Only vni interfaces are displayed.
   VLAN ID	For VLAN interfaces, select the VLAN ID of the interface.
   Network Name	Select the name of the network.
   IPv4 (Group of Fields)
   Address	Enter the IPv4 IP address of the interface.
   Gateway	Enter the IPv4 address of the gateway.
   DHCP	Click to enable DHCP, to automatically allocate addresses.
   FQDN	Enter the fully qualified domain name for the Controller.
   IPv6 (Group of Fields)
   Address	Enter the IPv6 IP address of the interface.
   Gateway	Enter the IPv6 address of the gateway.
   DHCP	Click to enable DHCP, to automatically allocate addresses.
   FQDN	Enter the fully qualified domain name for the Controller.
   Public IP Address	Enter the public IP address of the interface.

9. Click Save to save the configuration, or click Next to continue. The Step 6, Configure Certificate Signing Request screen displays. Note that this screen displays if you select a provider organization that uses PKI-based IKE authentication on Step 1, Configure Basic screen. Staging and/or post staging Controllers display based on your selection in Step 1, Configure Basic screen. Click on the Controller to view the CSR details.


10. Click Save to save the configuration, or click Next to continue. The Step 8, Review screen displays.


    1. Click Save to add the Controller.
    2. Click Deploy to activate the Controller node.

Create Device Templates

Device templates are a baseline configuration that can be deployed across branches, saving time and effort when you are configuring and deploying similar services across a branch network. There are two types of device templates:

• Staging templates—You typically create staging templates to use when testing VOS devices in a preproduction network or proof-of-concept (POC) situation to ensure that the devices and the basic configuration work properly. Because staging templates are for testing, you can configure only a limited set of features with them. You can create staging templates for WAN interfaces only, not for LAN interfaces.
• Post-staging templates—These are production templates that contain the complete configuration required to deploy network services on VOS branch devices. Post-staging templates can include configurations for both WAN and LAN interfaces.

You can associate a group of devices with one staging template and one post-staging template.

This section describes how to create post-staging (production) device templates. For information about configuring staging (testing) device templates, see Create Staging Templates in Create and Manage Staging and Post-Staging Templates.

A post-staging template contains the complete configuration for deploying network services at the branch level. You can configure post-staging templates for both LAN and WAN interfaces.

In Releases 22.1.1 and later, you use a workflow wizard to create a device template.

To add a post-staging template:

1. In Director view, select the Workflows tab in the top menu bar.
2. Select Template > Templates in the horizontal menu bar.


3. Click the Add icon.
4. Click Step 1, Basic. The Configure Basic screen displays. Enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the template. Value: Text string from 1 through 255 characters Default: None
   Type (Required)	Select the template type: SD-WAN Post-Staging—Create a template for an operational network. SD-WAN Staging—Create a template for proof-of-concept (POC) or other test network.
   Device Type	Select the device type based on the solution tier: vCPE—For routing tiers (ProNet, Net Pro, Advanced Routing) or security tiers (NGFW, UTM). SD-WAN—For Prime SD-WAN, Prime Secure, Premier Secure, and Premier Elite SD-WAN. If you select SD-WAN, select the topological role of the VOS device: Full Mesh—VOS device is in a full-mesh topology. This is the default. Hub—VOS device is a hub in a hub-and-spoke topology. Hub Controller—VOS device is a hub-controller node (HCN) in a hub-and-spoke topology. Spoke—VOS device is a spoke in a hub-and-spoke topology. If you select this option, enter the name of the spoke group in the Spoke Group field. For more information, see Create SD-WAN Spoke Groups. Default: Full Mesh
   Subscription (Group of Fields)
   Solution Tier	Select the licensing tier: Premier Elite SD-WAN Premier Secure SD-WAN Prime SD-WAN Prime Secure SD-WAN For more information, see Licensing Overview.
   Service Bandwidth	Select the bandwidth, in Mbps or Gbps, to use for solution tier that corresponds to the license that the device is using.
   Solution Add-On Tier	(For Releases 21.1.1 and later.) Select the add-on licensing tier. You can use an add-on tier to add additional services to a licensing tier. For example, you can add NGFW or UTM to a standard SD-WAN by using an add-on.
   License Period	(For Releases 21.1.1 and later.) Select the period, in years, for which the license is valid. The options are 1 year, 3 years, and 5 years.
   Organizations (Group of Fields)
   Organization (Required)	Select the organization to which the template applies. When you select a provider organization that uses PKI-based IKE authentication, the CA Certificate Servers screen displays as Step 3. For more information, see Configure a Common Certificate Authority.
   Firewall Service	Select the Firewall type for the organization, NextGen Firewall or Stateful Firewall.
   Suborganizations	For full-mesh and hub device types, click the Add icon to associate one or more suborganizations with the template. Select the suborganization from the drop-down list. To remove a suborganization from the list, select the suborganization and click the Delete icon.
   Firewall Service	Select the Firewall type for the suborganization, NextGen Firewall or Stateful Firewall.
   Controllers (Required)	For full-mesh and hub device types, click the Add icon to associate one or more Controllers with the template. Select the controller from the drop-down list. To remove a Controller from the list, select the Controller and click the Delete icon.
   Redundant Pair (Group of Fields)	Redundant pair option generates additional configuration template for redundant/standby CPE deployed at the same site in HA pair.
   Enable	Click to create a redundant template, which is required when you are using active-active redundancy.
   VRRP	Click to enable VRRP for the redundant pair. Enabling VRRP mode automatically creates VRRP configuration on LAN interfaces in both active and standby templates.
   Cloud CPE	Click to enable a cloud-based CPE solution for redundancy.
   Redundant Template Name	Enter the name of the template to use for redundancy
   Analytics and Software Version (Group of Fields)
   Analytics Cluster	Select the Analytics cluster to use.
   Preferred Software Version	Select the preferred version of the software to deploy on the VOS device. Note that during the zero-touch provisioning (ZTP) process, the Director node upgrades a branch device to the minimum software version, which is a version that is backwards compatible with up to the two previous software versions.
   Resource Tags	(For Releases 22.1.1 and later.) Enter a tag name, and then click Add icon to add the resource tag.

5. Click Save to save the configuration, or click Next to continue. The Step 2, Configure Interfaces screen displays to configure the device's port and interfaces on the ports. Enter information for the following fields.




   Field	Description
   Device Port Configuration (Group of Fields)	Configure the WAN, LAN, and cross-connect ports on the VOS device.
   Device Model	Select a device model.
   Number of Ports	Select the number of ports on the device.
   Virtual Ports	To configure virtual ports, click Configure in the Virtual Ports box.
   WWAN (LTE in earlier releases)	(For Releases 22.1.1 and later, LTE interfaces are called WWAN interfaces.) Click Configure in the Virtual Ports box and then click Add in the WWAN box to configure WWAN on a WAN interface. You can create up to four WWAN instances per WAN interface. The VOS device automatically assigns a port number from 100 through 103 to the WWAN interface.  The term WWAN interfaces is used to represent LTE, 4G, and 5G interfaces. Click Save to commit the WWAN configuration and create the WWAN interface.
   WiFi	Click Configure in the Virtual Ports box and then click Add in the WiFi box to configure WiFi for the LAN or Layer 2 interface. (Layer 2 interfaces are supported for Releases 21.1.1 and later.) You can create up to eight WiFi interfaces on a LAN or Layer 2 interface. The VOS device automatically assigns a port number from 200 through 207 for each WiFi interface. Note that these interfaces support only DHCPv4.
   IRB	(For Releases 21.1.1 and later.) Click Configure in the Virtual Ports box and then click Add in the IRB box to configure Integrated routing and bridging (IRB) on a WAN or LAN interface. IRB associates a Layer 3 interface with a Layer 2 bridge domain so that packets can be routed to and from the bridge domain. On IRB interfaces, you can configure all standard Layer 3 interface settings, such as DHCP and VRRP.
   T1/E1	(For Releases 21.2.1 and later.) Click Configure in the Virtual Ports box and then click Add in the T1/E1 box to configure T1/E1 on a WAN or LAN interface. For a T1/E1 workflow, VLAN ID is applicable to Frame Relay encapsulation and it represents the DLCI number.
   DSL	(For Releases 21.2.1 and later.) Click Configure in the Virtual Ports box and then click Add in the DSL box to configure DSL on a WAN or LAN interface.
   WAN Interfaces (Group of Fields)	This section populates when you add a WAN, a LAN and WAN, or a PPPoE interface for a port, with one row for each port:
   Port Number	Prepopulated with the number of the WAN port you select in the Device Port Configuration box, including PPPoE and WWAN interfaces. If you select Redundancy in the General tab, this field shows port mapping of the redundant CPE. When you select a LAN interface on the Primary device, LAN interfaces are automatically selected on the redundant device. If the active, redundant CPEs are not connected to the exact same WAN networks, select a cross-connect port on the Primary device.
   Interface	Prepopulated with the vni interface and subinterface numbers based on the port you select in the Device Port Configuration box.
   VLAN ID	Enter the VLAN identifier for the subinterfaces. To parameterize the VLAN ID, click the Parameterize icon.

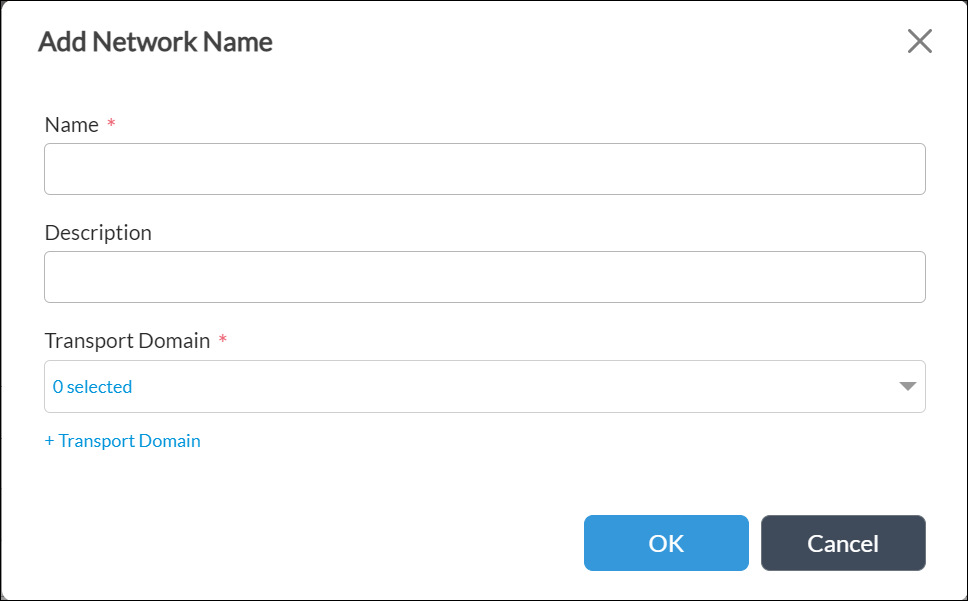

   Network Name	Select the network to which the WAN interface connects. To create a new network name, click + Add New in the network name drop-down list. In the Add Network Name popup window, enter the following information and then click OK.   Name (Required)—Enter a name for the WAN interface. Description—Enter an interface description Transport Domain (Required)—Click to select the transport domain: Internet MPLS To create a transport domain, click + Transport Domain and enter the following information: Name— (Required) Enter a transport domain name. Description—Enter a transport domain description. Transport Domain ID —(Required) Enter a transport domain ID.
   Priority	Enter a number for the link priority for WAN traffic. To parameterize the priority, click the Parameterize icon. If you do not assign a priority to a WAN circuit, the SD-WAN traffic steering engine adds the WAN interface to the default forwarding profile and assigns the default priority (which is the lowest priority) to the interface. (The traffic steering engine creates a default forwarding profile that is based on the configured priorities of the WAN circuits and uses this forwarding profile to steer all traffic originating from the site.) For example, if the traffic steering engine assigns the MPLS circuit priority 1 and the broadband circuit priority 2, the traffic uses MPLS as the primary circuit, because this circuit has a higher priority, and traffic fails over to the broadband circuit. If you do not assign a priority to the broadband circuit, the same behavior occurs because the broadband circuit has been assigned the default priority, which is the lowest priority. If you do not assign a priority to either the MPLS or broadband circuit, they both have the default priority, and traffic is load-balanced between them. It is recommended that you use the default forwarding profile for simple uses cases. To create more advanced traffic steering policies that involve SLA-based link and path prioritization, see Configure SD-WAN Traffic Steering. Default: None Range: 1 through 15 (1 is the highest priority and 15 is the lowest priority) (for Releases 22.1.1 and later); 1 through 8 (for Releases 21.2 and earlier)
   IPv4	Use IPv4 addressing on the WAN interface. Static—Use static IP addresses. When you select Static, a bind-data variable for the interface's static address is automatically generated in the template. DHCP—Use DHCP to obtain an IP address.
   IPv6	Use IPv6 addressing on the WAN interface. Static—Use static IP addresses. When you select Static, a bind-data variable for the interface's static address is automatically generated in the template. DHCP—Use DHCP to obtain an IP address.
   Circuit Type	Select access circuit type such as broadband, IP, or MPLS.
   Circuit Media	Select physical medium used by the access circuit: DSL LTE T1 T3 Cable Ethernet

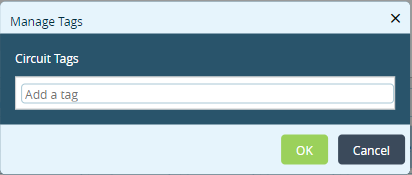

   Circuit Tags	Enter a text list of circuit tags and, then click the  Add icon.
   Subinterface	Click the Add icon to add a subinterface on the WAN port. Another row is added to the WAN Interfaces table. For the subinterface, configure all the fields described above.
   Link Monitor	Select to monitor the reachability of the next hop or remote IP address on the WAN interface. If the monitored address becomes unreachable, DIA traffic is directed to another WAN interface if possible.
   Allow SSH to CPE	Click to allow SSH sessions to the CPE device on the underlay IP address of WAN interface.
   Circuit Provider	Enter the access circuit service provider's name.
   Bandwidth (Kbps) (Group of Fields)
   Downlink	Enter the bandwidth available on the link for downloading data, in kilobytes per second (Kbps). Range: 1 through 10000000 Kbps Default: None
   Uplink	Enter the bandwidth available on the link for uploading data, in kilobytes per second (Kbps). Range: 1 through 10000000 Kbps Default: None
   LAN Interfaces (Group of Fields)	This section populates when you add LAN interfaces or WiFi ports, with one row for each port.
   Port Number	Prepopulated with the number of the port you select in the Device Port Configuration box.
   Interface	Prepopulated with the vni interface and subinterface numbers based on the port you select in the Device Port Configuration box.
   VLAN ID	Enter the VLAN ID for the subinterfaces. To parameterize the VLAN ID, click the Parameterize icon.
   Network Name	Select the network to which the interface connects.
   Organization	Select the organization to which the interface belongs.
   Zones	Select the zone to which the interface belongs. If you do not select a zone, the interface is automatically associated with a zone based on the LAN network name.
   Routing Instance	Select the organization's routing instance with which the LAN interface is associated.
   IPv4	Use IPv4 addressing on the LAN interface. Static—Use static IP address.es When you select Static, a bind-data variable for the interface's static address is automatically generated in the template. DHCP—Use DHCP to obtain an IP address.
   IPv6	Use IPv6 addressing on the LAN interface. Static—Use static IP addresses. When you select Static, a bind-data variable for the interface's static address is automatically generated in the template. DHCP—Use DHCP to obtain an IP address.
   Sub Interface	Click the Add icon to add a subinterface on the LAN port. Another row is added to the WAN Interfaces table. For the subinterface, configure all the fields described above.
   Layer 2 Interfaces (Group of Fields)	(For Releases 21.1.1 and later.) This section populates when you add Layer 2 interfaces for a port, with one row for each port.
   Basic	Click to create a simple Layer 2 configuration. Enter information for the following fields.
   Advanced	Click to create an advanced configuration, such as a service provider configuration. Enter information for the following fields.
   Spanning Tree	Select the spanning tree protocol: None MSTP RSTP STP
   Port Number	Prepopulated with the number of the Layer 2 port (wired or WiFi) that you selected in the Device Port Configuration box.
   Interface	Prepopulated with the VIN interface and subinterface numbers of the port you selected in the Device Port Configuration box.
   Unit	Autogenerated unit or subinterface number of the Layer 2 interface. The first interface has unit ID 1, and subsequent interface unit IDs are generated in sequential order. Note that a WiFi port can have only one unit.
   Organization	Select the organization to which the Layer 2 interface belongs.
   VLANs	Select a VLAN to associate with the Layer 2 interface. To parameterize the VLAN ID, click the Parameterize icon. Note that when you parameterize the VLAN ID in the device workflow, you can enter only one value. If you need IRB-LAN support for the parameterized VLAN, copy and paste the same variable name from the Layer 2 tab to the IRB LAN row in the LAN tab.
   Virtual Switch	For the Advanced option, select a virtual switch to associate with the Layer 2 interface. The drop-down list displays the virtual switches associated with the organization.
   Bridge Domain	For the Advanced option, select the bridge domain for the Layer 2 interface. Selecting a bridge domain enables VLAN translation on the subinterface.
   Mode	Select the subinterface traffic mode for the VLAN: Access Trunk For WiFi ports, the mode is always Access. If the VLANs or bridge domains have more than one VLAN ID, the mode must be trunk. If there are multiple subunits, only one subunit can be in Access mode.
   Subinterface	Click the Add icon to add a subinterface on the Layer 2 port. Another row is added to the Layer 2 Interfaces table. For the subinterface, configure all the fields described above.
   More	Click More to configure additional attributes for the interfaces. The Native VLAN ID popup window displays. Note that these attributes are configured at port level, not for subinterfaces. Native VLAN ID: enter the Native VLAN ID of the port. Native VLAN ID is required only if the mode of sub-units is Trunk. Range: 1 to 4094
   Native VLAN ID	When the subunit mode is Trunk, center the native VLAN ID of the port. Range: 1 through 4094

6. Click Save to save the configuration, or click Next to continue. The Step 3, Configure CA Certificate Servers screen displays. This screen displays if you select an organization that uses PKI-based IKE authentication in Step 1, Configure Basic screen. Enter information for the following fields.


7. Select the interface to fetch CA certificate for the organizations you select from Configure Basic screen. Select the interface and click Add to add the interface for each organization.
8. Click Save to save the configuration, or click Next to continue. The Step 4, Configure Tunnels screen displays. (You can configure site-to-site tunnels for Releases 20.2 and later.) Split tunnels allow traffic to flow from a common source to different destinations over different interfaces. For example, you can configure a split tunnel to allow traffic to flow from a common source to an SD-WAN site and a non–SD-WAN site. Enter information for the following fields.




   Field	Description
   Split Tunnels (Group of Fields)
   VRF Names	Select the name of the VRF.
   WAN Interfaces	Select the name of the WAN interface. If you select more than two WAN interfaces from the same LAN VR to configure direct internet access (DIA), the interface that is first on the list has the highest priority unless you enable load balancing by clicking Load Balance.
   DIA	Click to enable DIA. Source NATing is performed before packets are sent out to the WAN interface.
   Gateway	Click to allow the local router to act as a gateway between other SD-WAN sites and non–SD-WAN sites. The traffic between SD-WAN and non–SD-WAN sites flows through the gateway SD-WAN device. In gateway mode, routes that the router learns from an SD-WAN overlay are advertised to MPLS PE routers, and routes that the router learns from MPLS PE routers are advertised to SD-WAN overlay. Note that you do not need to configure split tunnels on SD-WAN sites.
   Add icon	Click the Add icon to add the split tunnel to the template.
   Load Balance	Click to enable balancing of the traffic load among the split tunnels if you have more than one split tunnel.
   Site-to-Site Tunnels (Group of Fields)
   Name	Enter a name for the site-to-site tunnel.
   Peer Type	Select the hosted-cloud or peer type, depending on the device at the other end of the tunnel: Azure Virtual WAN—Deploy a tunnel on Azure Virtual WAN. AWSTransitGW—Deploy a tunnel on AWS transit endpoint. Others—Deploy a tunnel on a third-party device that supports IPsec tunnels, such as Cisco, Juniper, and Palo Alto. Zscaler—Deploy a tunnel on a Zscaler endpoint.
   Tunnel Protocol	Select the tunnel protocol to use to reach the peer: IPsec—Default tunnel protocol for the peer types AWS Transit Gateway, Azure Virtual WAN, Others, and Zscaler. GRE—Select GRE for the peer type Zscaler.
   WAN/LAN Network	Select the network to use. For the peer types AWS Transit Gateway and Azure Virtual WAN, you can select only WAN networks. For the peer types Zscaler and Others, you can select any network.
   LAN VRF	Select the virtual routing instance to use to reach the LAN, to allow users in the routing instance to access the tunnel to communicate with the gateway. The virtual routing instance is the tunnel termination endpoint.
   VPN Profile	When you select the peer type Zscaler or Others and a virtual routing instance, select a VPN profile to associate with the tunnel and with the LAN VRF organization. If a VPN profile is not available, create one, as described in Step 11. When the peer type is Zscaler, you must create VPN profile with two tunnels, and this field lists only VPN profiles with two tunnels. When you select the peer type Others or Zscaler, and if a VPN profile is not available, click the + Add New VPN option in the VPN Profile field. See Steps 9 and 10, below.
   BGP Enabled	For the peer type Azure Virtual WAN, click to enable BGP. For the peer type AWS Transit Gateway, this field is checked automatically. For the peer types Zscaler and Others, this field is checked automatically if BGP is enabled in the VPN profile, and it is not checked if BGP is not enabled in the VPN profile.
   Add icon	Click the Add icon to add the site-to-site tunnel to the template.

9. If you select the peer type Others or Zscaler, and if a VPN profile is not available, click the + Add New VPN option in the VPN Profile field.


10. In the Create VPN Profile popup window, enter information for the following fields.




    Field	Description
    Tunnel Protocol (Required)	IPsec or GRE tunnel protocol for the peer type that you selected when you configured the site-to-site tunnel is selected automatically.
    VPN Profile Name (Required)	Enter a name for the VPN profile.
    IKE Version (Required	Select the IKE version: v1 v2 v2-or-v1
    IKE Transform (Required)	Select the IKE transform algorithm to use for data encryption.
    IPsec Transform (Required)	Select the IPsec transform algorithm to use for data encryption.
    BGP	Select the BGP state: Disable Enable
    No. of Tunnels (Required)	Enter how many tunnels to create between the VOS device and the Zscaler unmanaged device or between the VOS device and the third-party managed device. For Zscaler tunnels, you must create two tunnels.
    For the IPsec tunnel protocol	Enter information for the following fields.
    Primary Tunnel Peer Authenticaiton PSK Key	Enter the primary tunnel preshared key (PSK) to use with the peer. If you leave this field empty, you are prompted to enter the peer authentication key in the device bind data when you deploy the workflow.
    Primary Tunnel Peer Authentication IP Identifier Identity	Enter the primary tunnel IP address of the peer authentication device. If you leave this field empty, you are prompted to enter the peer authentication IP identifier identity under device bind data when you deploy the workflow.
    Secondary Tunnel Peer Authentication PSK Key	Enter the secondary tunnel PSK to use with the peer. If you leave this field empty, you are prompted to enter the peer authentication key in the device bind data when you deploy the workflow.
    Secondary Tunnel Peer Authentication IP Identifier Identity	Enter the secondary tunnel IP address of the peer authentication device. If you leave this field empty, you are prompted to enter the peer authentication IP identifier identity under device bind data when you deploy the workflow.
    For the GRE tunnel protocol	Enter information for the following fields:
    Primary Tunnel Destination Address	Enter the primary tunnel destination IP address of the authentication device.
    Secondary Tunnel Destination Address	Enter the secondary tunnel destination IP address of the authentication device.
    Tunnel Configuration (Required)	Select the tunnel configuration.
    Route Based	Use a route-based configuration.
    Policy Based	Use a policy-based configuration. If you select this option, click + Add icon to add a policy. In the VPN Policy Profile popup window, enter information for the following fields. Name—Enter a name for the policy. Protocol—Select a protocol: ICMP TCP UDP Source (Group of Fields)—Enter information about the traffic source: Address—Select the IPv4 address type. IPv4 Address/Prefix—Enter the IPv4 source prefix or address. Port—Enter the source port number. Destination (Group of Fields)—Enter information about the traffic destination: Address—Select the IPv4 address type. IPv4 Address/Prefix—Enter the IPv4 destination prefix or address. Port—Enter the source port number. Click OK.

11. Click Save to save the configuration, or click Next to continue. The Step 5, Configure Routing screen displays. You can configure BGP, OSPF, and static routing. For each routing protocol, click theParameterize icon to generate the routing information dynamically, or enter information for the following fields and then click the Add icon.




    Field	Description
    BGP (Group of Fields)	Configure BGP.
    Network	Select the name of the network on which to configure BGP.
    Local AS	Enter the local autonomous system (AS) number. To parameterize the local AS number. click theParameterize icon.
    Neighbor IP	Enter the IP address of the BGP neighbor (peer). To parameterize the IP address, click theParameterize icon.
    Peer AS	Enter the AS number of the peer. To parameterize the peer AS number, click theParameterize icon.
    Add icon	Click the Add icon to add the BGP configuration to the template.
    OSPF/OSPFv3 (Group of Fields)	Configure OSPF.
    Network Name	Select the name of the network on which to configure OSPF
    Area	Enter the OSPF area number.
    BFD	Click to enable BFD.
    Add icon	Click the Add icon to add the OSPF configuration to the template.
    Static Routes (Group of Fields)	Configure static routing.
    Routing Instance	Select the name of the routing instance in which to configure the static route.
    Prefix	Enter the prefix and prefix length of the static route. To parameterize the IP prefix, click theParameterize icon.
    Next Hop	Enter the IP address of the next hop. To parameterize the next hop IP address, click theParameterize icon.
    Add icon	Click the Add icon to add the static route to the template.

12. Click Save to save the configuration, or click Next to continue. The Step 6, Configure Switching screen displays. Note that this tab is displayed only when you select Layer 2 as the type of interface in the Step 2, Interfaces screen in Step 5, above. Enter information for the following fields.




    Field	Description
    Virtual Switch	Select the VLAN switch to associate with EVPN. For each virtual switch, the workflow configures the following: Unique route distinguisher (RD) and route target (RT) values VLANs for all the VLAN fields in the Interfaces tab for which EVPN is enabled Family Layer 2 VPN-EVPN in the control virtual router (VR) of the associated organization
    VLAN List	Enter the VLANs. You can specify individual VLANs or VLAN ranges, separated by commas. If you add more than one row, with different VLANs or VLAN ranges, for each virtual switch, ensure that you avoid duplicate and overlapping values. Click theParameterize icon to specify the default parameterized variable. If you edit the parameterized value, you must retain the {$v*__*} format.

13. Click Save to save the configuration, or click Next to continue. The Step 7, Configure Inbound NAT screen displays. You configure NAT rules so that traffic inbound from an external network can reach internal LAN servers. Enter information for the following fields.




    Field	Description
    Name	Enter a name for the NAT rule.
    WAN Network	Select the WAN network on which to enable inbound NAT port forwarding.
    LAN Routing Instance	Select the routing instance that connects the internal LAN server to the CPE.
    Protocol	Select the protocol of the application that runs on the internal LAN server: ICMP TCP UDP
    External Addresses	Enter the IP prefix or a range of IP addresses for the WAN interface to use for NAT. To enter a range, separate the IP addresses with a hyphen; for example, 1.1.1.1-1.1.1.2.
    External Ports	Enter the external ICMP, TCP, or UDP port or port range for the WAN interface to use for NAT.
    Internal Addresses	Enter the IP prefix or a range of IP addresses of the LAN servers to which to send NATed traffic. To specify a range, separate the IP addresses with a hyphen; for example, 1.1.1.1-1.1.1.2.
    Internal Ports	Enter the external ICMP, TCP, or UDP port or port range to which to send NATed traffic.
    Add icon	Click the Add icon to add the inbound NAT instance.

14. Click Save to save the configuration, or click Next to continue. The Step 8, Configure Management Servers screen displays.




    Field	Description
    NTP Servers (Group of Fields)	Configure NTP servers.
    Reachability via	Select the network to use to reach the NTP server.
    IP Address	Enter the IP address of the NTP server. To parameterize the IP address, click theParameterize icon.
    Add icon	Click the Add icon to add the NTP server to the template
    Syslog Servers (Group of Fields)	Configure syslog servers.
    Reachability via	Select the network to use to reach the syslog server.
    IP Address	Enter the IP address of the syslog server. To parameterize the IP address, click theParameterize icon.
    Add icon	Click the Add icon to add the syslog server to the template
    TACACS+ Servers (Group of Fields)	Configure TACACS+ servers.
    Reachability via	Select the network to use to reach the TACACS+ server.
    IP Address/FQDN	Enter the IP address or fully qualified domain name of the TACACS+ server. To parameterize the IP address or domain name, click theParameterize icon
    Authentication Key	Enter the authentication key, or password, of the TACACS+ server. To parameterize the key, click theParameterize icon.
    Actions	Select one or both TACACS+ server actions: Accounting—Log all TACACS+ activity. Authentication—Use TACACS+ authentication to determine whether a user can access a system.
    Add icon	Click the Add icon to add the TACACS+ server to the template
    RADIUS Servers (Group of Fields)	Configure RADIUS servers.
    Reachability via	Select the network to use to reach the RADIUS server.
    IP Address/FQDN	Enter the authentication key, or password, of the TACACS+ server. To parameterize the key, click theParameterize icon.
    Authentication Key	Enter the authentication key, or password, of the RADIUS server. To parameterize the key, click theParameterize icon.
    Actions	Select one or more RADIUS server actions: Accounting—Log all RADIUS activity. Authentication—Use RADIUS authentication to determine whether a user can access a system. WiFi Authentication—Use RADIUS authentication to allow a device to access a WiFi network.
    Add icon	Click the Add icon to add the RADIUS server to the template
    SNMP Managers (Group of Fields)	Configure SNMP servers.
    Versions	Select the version or versions of version to use: v1 v2c v3
    Community	Enter the SNMP community string to use to access the SNMP server.
    Username	For SNMPv3, enter the username to access the SNMP server. To parameterize the username, click theParameterize icon.
    Password	For SNMPv3, enter the password to access the SNMP server. To parameterize the password, click theParameterize icon.
    Reachability via	Select the network to use to reach the SNMP server.
    IP Address	Enter the IP address of the SNMP server. To parameterize the IP address, click theParameterize icon.
    Add icon	Click the Add icon to add the SNMP server to the template
    LDAP Servers (Group of Fields)	Configure LDAP servers.
    Reachability via	Select the network to use to reach the LDAP server.
    IP Address/FQDN	Enter the IP address or fully qualified domain name of the LDAP server. To parameterize the IP address or domain name, click theParameterize icon.
    Domain Name	Enter the domain name in which the LDAP server resides. To parameterize the domain name, click theParameterize icon.
    Base DN	Enter the point from which the LDAP server searches for users. For example, DC=example-domain,DC=com
    Bind DN	Enter the user and user's location in the LDAP directory tree. For example, CN=username,CN=Users,DC=example-domain,DC=com
    Bind Password	Enter the password to use to authenticate the user.
    Add icon	Click the Add icon to add the LDAP server to the template.

15. Click Save to save the configuration, or click Next to continue. The Step 9, Review screen displays.


16. Click Save to add the template.
17. Click Deploy to associate a post-staging template with the Controller nodes, organizations, and other selected entities.

Create Service Templates

You create service templates so that you are able to configure the application-steering, NGFW, QoS, service chain, stateful firewall, and secure access properties for VOS devices. After you create a service template, you associate it with a device template.

To create a service template:

1. In Director view:
   1. Select the Configuration tab in the top menu bar.
   2. Select Templates > Service Templates in the horizontal menu bar.
   3. Select an organization in the main pane.
2. Click the Add icon to add a service template. In the Add Service Template popup window, enter information for the following fields.




   Field	Description
   Name	Enter a name for the service template.
   Organization	Select the organization to associate with the service template.
   Type	Select the type of the service template: Stateful Firewall—Allows you to configure the following services: DoS protection Security and security settings NextGen Firewall—Allows you to configure the following services: Authentication Decryption DoS protection Security and security settings Secure web proxy QoS—Allows you to configure the following services: AppQoS Associate interfaces and networks Drop profiles Forwarding class map QoS profiles Read-write rules Schedulers Scheduler maps General—Allows you to configure all available services. Application Steering—Allows you to configure the following services: Class of service CoS and SD-WAN policy Zones Service Chain—Allows you to configure the following objects: Address Address groups Cloud profiles Custom objects Schedules SNAT pools Secure Access—Allows you to configure the following objects: Secure access routes DNS resolvers Secure access servers Secure access profiles Secure access portal and/or gateway
   Dynamic Tenant Configuration	(For Releases 22.1.3 and later.) Click to automatically select the service template and associate it with the VOS device when an organization is being dynamically instantiated.

3. Click OK. The main pane lists the service template.



To clone, import, or export a template, select the template from the main pane and click the Clone, Import, or Export icon. For more information, see Create and Manage Staging and Post-Staging Templates.

To view the service template configuration in the CLI, click the Eye icon in the View column. For example:

To associate a service template with a device template:

1. In Director view:
   1. Select the Configuration tab in the top menu bar.
   2. Select Templates > Device Templates in the horizontal menu bar.
   3. Select an organization in the main pane.
2. Click the Edit icon.
3. Click the Service Templates tab.
4. From the Organization list, select the name of the organization.
5. From the Override list, select an policy override option:
   • No Conflict—Do not override the provider policies defined in the service template
   • Override Referred Template
   • Override with Referred Template
6. Click the Security button to select the type of security protocol in Service Templates list:
   • Stateful Firewall
   • NextGen Firewall
7. In the Service Class section, select the name of the service template in the Service Templates list.
8. In the General section, select the name of the template from the Service Templates list.
9. Click OK.

Create Devices and Device Groups

In Releases 22.1.1 and later, you use a workflow wizard to create devices and device groups. Note that the order of the wizard screens depends on what you selected for the Deployment Type and Device Group fields in the Step 1, Basic screen.

1. In Director view, select the Workflows tab in the top menu bar.
2. Select Devices > Devices in the horizontal menu bar. The following screen displays.


3. Click the + Add to add a device.
4. Click Step 1, Basic. The Configure Basic screen displays. Enter information for the following fields. Note that the URL-Based ZTP tab is displayed only when you select a device group for which URL-based ZTP is enabled. The Tunnel Information tab is displayed when you select a device group that has a template associated with it and the template includes tunnels.




   Field	Description
   Name	Enter a name for the device.
   Global Device ID	Displays ID assigned to the device. The system populates the value automatically with the next available ID. You can change it to a different available value between 1 and 31.
   Organization	Select the organization to which the device belongs.
   Deployment Type	Select the type of deployment: CPE Bare-Metal Device CPE Public Cloud If you select CPE Public Cloud, Step 2 displays the Cloud Profile tab. For more information, see Configure a Public Cloud Device To Be a Virtual CPE Router or an SD-WAN Gateway.
   Serial Number (Required)	Enter the chassis/device ID for the branch device. This must be a unique value per device. Click Generate Serial Number to generate a unique serial number.
   Device Group	Select the device group to which the device belongs. If you select a device group on which URL-based ZTP is enabled, Step 3 displays the URL-Based ZTP screen. For more information, see Activate VOS Devices. If you select a device group that has a template associated with it and the template includes tunnels, Step 3 (displayed as Step 4 if URL-Based ZTP is Step 3) displays the Tunnel Information screen. For more information, see Configure Site-to-Site Tunnels.
   Model Number	Select the model of the device.
   Resource Tags	(For Releases 22.1.1 and later.) Enter a tag name, and then click Add icon to add the resource tag.
   Admin Contact Information	Enter the contact email address and phone number of the administrator.
   Subscription (Group of Fields)	For Releases 21.1.1 and later.
   Service Bandwidth	Select the bandwidth, in Mbps or Gbps, to use for service that the device offers.
   License Period	Select the period, in years, for which the device license is valid. Values: 1, 3, 5 years

Note that once you deploy a device, you cannot change the name of the device in Versa Director. To change the device name, you must delete the device and add a new device. If you open the Add Device screen after the device has been deployed, the Name field is grayed out (not editable), as shown in the following screenshot.

3. To create a device group, click + Device Group. Enter information for the following fields.




   Field	Description
   Name	Enter a name for the device group.
   Description	Enter a text description for the group.
   Tags	Enter a text string or phrase to associate with the rule. Tags allow you to locate a group when you perform a filtered search of all groups. Value: Text string from 1 through 255 characters Default: None
   Organization	Select the organization to which the device group belongs.
   Enable Two-Factor Authentication	Click to be notified through email when a branch performs zero-touch provisioning (ZTP).
   CA in Data Center	Click to enable certificate authority. If enabled, during global ZTP, the CSR request goes over the IPSec tunnel, and the branch receives a CA-signed certificate. All tunnels that are established use this certificate.
   Staging Template	Select the name of a staging template.
   Post-Staging Template	Select the name of a post-staging template.
   General	Select the name of a general template.
   Contact Information (Group of Fields)
   Email	Enter the email ID to use for two-factor authentication.
   Phone	Enter the phone number to use for two-factor authentication.
   Post-Staging Template Association (Tab)	Click the Edit icon to edit the post-staging template association information.
   Tenant	Enter the name of the tenant.
   Category	Select the tenant category.
   Template	Select the post-staging template to associate with the template.
   Devices Tab	Click the Delete icon to delete device information.

4. Click OK to complete adding a device group.
5. Click Save to save the configuration, or click Next to continue. The Step 2, In the Location Information tab displays. Enter the applicable location information of the Controller node, or click Generate to automatically populate the latitude and longitude from the Controller address.


6. Click Save to save the configuration, or click Next to continue. The Step 3, Device Service Template Screen displays. Add the required values to add a service template associated with the device. For more information, see Associate a Device-Specific Service Template with a Device below.


7. Click Save to save the configuration, or click Next to continue. The Step 3, Device Service Template Screen displays. In the Bind Data tab, add the required field values for the templates for which you have not enabled DHCP. If you enable DHCP for a template, the system populates the values dynamically. Note that the system validates the bind data variables per the specified variable type. If they do not match, an error message displays.


8. Click a variable to edit the values.


9. Select the Autogenerated tab to view and edit the values.


10. Click a variable to edit the values.
11. Click Save to save the configuration, or click Next to continue. The Step 5, Review screen displays.


12. Click Deploy to onboard the device.



Supported Software Information

Releases 20.2 and later support all content described in this article, except:

• Release 20.2.1 adds support for device-level service templates.
• Release 21.1.1 adds support for Layer 2 ports and interfaces tab in the Create Template window > Interfaces tab. The Interfaces tab also supports configuration of Integrated routing and bridging (IRB) on a WAN or LAN interface.
• Release 21.1.1 adds support for the Solution Add-On Tier and License Period fields in the Create Template > Basic tab.
• Release 21.1.1 adds support for the Switching tab (for Layer 2 interfaces) in the Create Template window.
• Release 21.1.1 adds support for the Service Bandwidth and License Period fields in the Add Device window > Basic tab.
• Release 21.2.1 adds support for the T1/E1 and DSL interfaces in the Workflows > Template > Templates > Interfaces tab.
• Releases 22.1.1 adds workflows to create customer organizations, controller nodes, device templates, and devices are via wizards; adds support for PKI-based certificates in workflows; increases the WAN link priority value from 8 to 15; adds support for the GRE tunnel protocol for the peer type AWS Transit Gateway; renames LTE interfaces to WWAN; add support for Resource Tag field in workflows templates.
• Release 22.1.3 add support for the dynamic tenant configuration field in the Add Service Template window.

Additional Information

Configure Interfaces
Configure Multitenancy
Create and Manage Staging and Post-Staging Templates
Director GUI Overview
Licensing Overview
Understand SD-WAN Interface Numbering
