Configure BGP

Start Configuring BGP

1. In Director view:
   1. Select the Configuration tab in the top menu bar.
   2. Select Templates > Device Templates in the horizontal menu bar.
   3. Select an organization in the left menu bar.
   4. Select a post-staging template in the main pane. The view changes to Appliance view.
2. Select the Configuration tab in the top menu bar.
3. Select Networking > Virtual Routers in the left menu bar.
4. Click the  Add icon. The Configure Virtual Router popup window displays.
5. Select the BGP tab.

Configure Basic BGP

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the General tab, and enter information for the following fields.





   Field	Description
   Description	Enter a text description for the BGP instance.
   Instance ID (Required)	Enter the ID assigned of the BGP instance. A virtual router can have multiple BGP instances. Range: 1 through 65535
   Disable	Disable all static neighbors in the BGP instance
   Router ID (Required)	Enter the IP address of the router. Click the Tool icon to parameterize the value for this field.
   Local AS (Required)	Enter the local AS number. Click the Tool icon to parameterize the value for this field. Range: 0 through 4294967295, or (0 through 65535.0 through 65535)
   Peer AS	Enter the remote peer's AS number. Click the Tool icon to parameterize the value for this field. Range: 0 through 4294967295, or (0 through 65535.0 through 65535)
   Local Address	Select the IP address or interface of the BGP instance. Click the Tool icon to parameterize the value for this field.
   Hold Time	Enter the hold time, in seconds, to negotiate with a peer. Range: 3 through 65535 seconds
   TTL	Enter the time-to-live value, which is the number of hops that a packet can travel in a network before the packet expires. Range: 1 through 255 Default for EBGP: 64 (Note that you do not need to enable EBGP multihop.) Default for IBGP: 64
   Password	Enter the password to authenticate the BGP instance.
   Local Network Name	Select the network to which the BGP instance belongs. The drop-down lists the names of user-defined networks.
   IBGP Preference	Enter the preference value to assign to routes learned from IBGP. Range: 1 through 255 Default: 200
   EBGP Preference	Enter the preference value to assign to routes learned from EBGP. Range: 1 through 255 Default: 20
   Local AS Mode	Select the BGP AS mode to use on the local device: 1—Peering session is established with the local AS configured in BGP instance or with a BGP group or neighbor. When importing routes, an AS number is not inserted in the AS path. When exporting routes, the selected local AS number is prepended to the AS path. 2—Peering session is established with local AS configured as a BGP group or neighbor. When importing routes, the local AS number of the group or neighbor is inserted in AS path. When exporting routes, the local AS number configured on the BGP group or neighbor and the local AS number configured for the BGP instance are prepended to the AS path. This is the default. 3—Peering session is established with the local AS configured for the BGP group or neighbor. When importing routes, no AS number is inserted in the AS path. When exporting routes, the local AS configured for the BGP group or neighbor and and the local AS number configured for the BGP instance are prepended to AS path. 4—Peering session is established with the local AS number configured for the BGP group or neighbor. When importing routes, no AS number is inserted in the AS path. When exporting routes, the local AS number configured for the BGP group or neighbor is prepended to the AS path. 5—(For Releases 22.1.1 and later.) Peering session is established with the local AS number configured for the BGP group or neighbor. When importing routes, the local AS in the BGP group or neighbor is inserted in the AS path. When exporting routes, the local AS number configured in the BGP group or neighbor is prepended to the AS path. Default: 2
   AS Origination Interval	Enter the minimum time that must elapse between successive advertisements of Update messages that report changes within the advertising BGP speaker's own AS. Range: 1 through 65535
   SLA Community	Enter the extended community value to use for SLAs.
   Suppress Peer AS	(For Releases 21.2.1 and later.) Click to suppress and not advertise routes received from an EBGP neighbor to another neighbor that is in the same AS as originating neighbor.
   Relax First AS Check	(For Releases 21.2.1 and later.) Click to relax the check that the first (left-most) AS number in an AS path receives from an EBGP neighbor is same as neighbor's AS.
   Community 4 Byte	(For Releases 21.2.1 and later.) Click to process the community using 4-byte AS numbers.
   Passive	Click to have BGP only accept traffic, and not transmit routes.
   Remove All Private AS Numbers	Click to remove all private AS numbers from a route's AS path of the route before sending the route to peers.
   Route Reflector Client	Click to have an IBGP router function as a route reflector. A route reflector broadcasts the routes of all the other routers in the network
   Enable Alarms	Click to enable alarm generation.
   Site of Origin	Enter the site-of-origin community to use while redistributing routes.
   Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.
   Prefix Limit (Group of Fields)	Limit the number of prefixes received from a session with a BGP neighbor.
   Maximum	Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647
   Threshold	Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reach, the VOS device sends an SNMP trap warning message. Range: 1 through 100 percent
   Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
   Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
   Family (Group of Fields)	Configure the following fields, and then click the Add icon to add a BGP family.
   Family	Select the protocol for the family: IPv4 Layer 3 VPN Unicast—Use for Layer 3 VPN. IPv4 Multicast—Use for BGP. IPv4 Unicast—Use for BGP. IPv4 Versa Private—Use for SD-WAN. IPv4 VPN Multicast—Use for Layer 3 VPN. IPv6 Multicast—Use for BGP. IPv6 VPN Multicast—Use for Layer 3 VPN. IPv6 Unicast—Use for BGP. IPv6 VPN Unicast—Use for Layer 3 VPN. L2VPN EVPN—Use for Layer 2 VPN.
   Loop Count	Enter the number of times the detection of the local device’s AS in the AS PATH attribute is allowed for the BGP address family. If the count exceeds the loop count value, the system discards the route. Range: 1 through 255
   Prefix Limit	Limit the number of prefixes received from a session with a BGP neighbor: Maximum—Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647 Threshold—Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reach, the VOS device send an SNMP trap warning message.. Range: 1 through 100 percent
   Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
   Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
   Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.

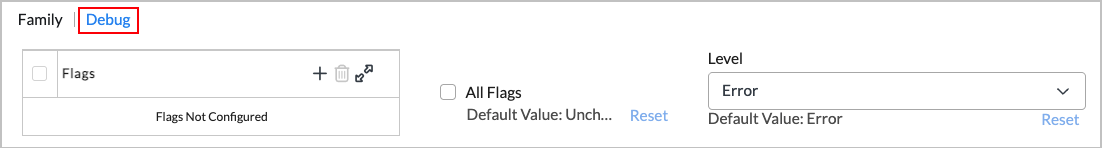

   Debug (Group of Fields)
   Flags Table	Click the Add icon to select a debug flag. You can add multiple debug flags.
   All Flags	Click to use all debug flags.
   Level	Select a debug level.

9. Click OK.

Configure BGP Prefix Lists

Peer group policy uses prefix lists to change the attributes of routes, and to allow or deny advertising routes to the peer routers.

To configure a BGP prefix list:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Prefix List tab.


9. Click the Add icon. The Add BGP Instance Add Prefix List popup window displays.


10. Click the Add icon to add a prefix list. Enter information for the following fields.



    Field	Description
    Sequence Number (Required)	Enter a number for the order or sequence number of the prefix list.
    Action	Select the action to take on the routes: Deny—Select to deny routes on this prefix list. Permit—Select to allow routes on this prefix list.
    Address Family	Select the broadcast family protocol of the route: IPv4 IPv6
    SAFI (Required)	Select the subaddress family indicator.
    IP Address (Group of Fields)	Configure an IP address to group the routes for this prefix list.
    IP Address/Mask	Enter the IPv4 or IPv6 address of the routes grouped in this prefix list.
    Minimum Prefix Length	Enter the minimum number of prefix length to match. For IPv4 prefix: Range: 0 through 32 For IPv6 prefix: Range: 0 through 128
    Maximum Prefix Length	Enter the maximum number of prefix length to match. For IPv4 prefix: Range: 0 through 32 For IPv6 prefix: Range: 0 through 128

11. Click OK.

Configure a BGP SLA Profile

For Releases 22.1.1 and later.

A peer group policy can use SLA parameters to change the attributes of routes, and to allow or deny the advertising of routes to the peer routers. You define SLA parameters in SLA profiles, and you can use the profiles in match lists for peer and peer group policies.

Before configuring an SLA profile, you can do the following:

• For better control plane performance, enable soft reconfiguration. You can enable it for the BGP instance, the peer group, or neighbor (peer).
• Configure an application monitor on the gateway for the application. The application monitor collect metrics, as seen from the gateway, for traffic sent towards a SaaS application. The gateway sends the application monitor metrics to directly connected SD-WAN branches. Branches receive metrics from multiple gateways, and they can use the metrics to select the best path towards the SaaS application. For more information, see Add a SaaS Application Monitor in Configure SaaS Application Monitoring.

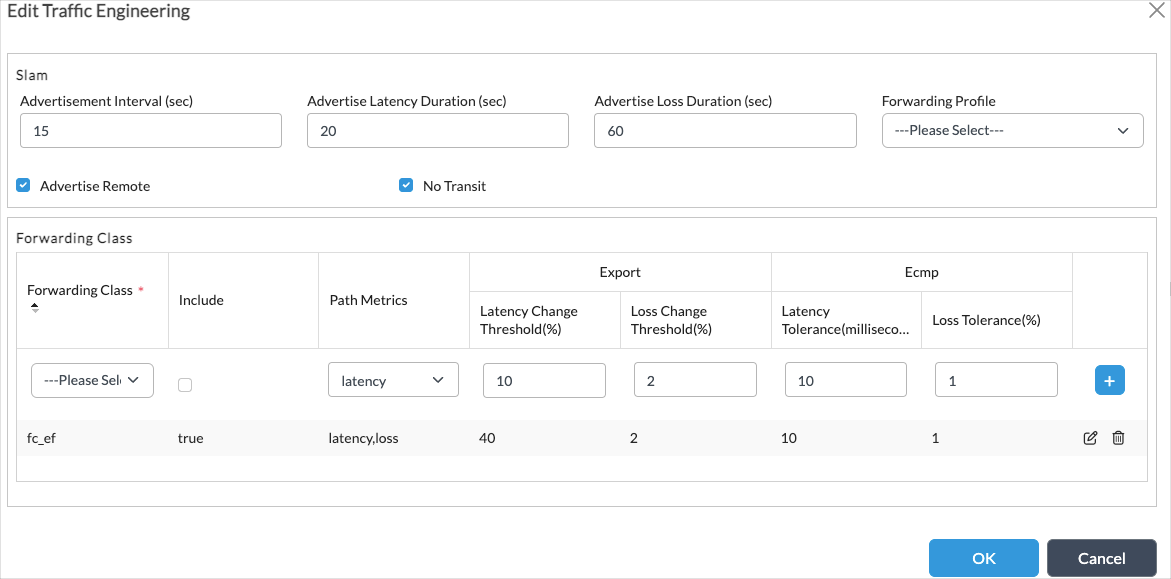

• Configure SD-WAN traffic engineering. Note that for end-to-end metric comparison, the path metrics that you use in the traffic-engineering configuration must be consistent with the threshold that you configure for the BGP SLA profile used for end-to-end metric comparison. For example, if you use delay for best SLA selection in the SLA profile, you must configure the delay in path metrics for traffic engineering. For more information, see Configure SD-WAN Traffic Engineering.



To configure a BGP SLA profile:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the SLA Profile tab.



9. Click the Add icon. The Add BGP Instance Add SLA Profile popup window displays.


10. Enter a name for the SLA profile, and then click the Add icon. In the Add BGP Instance Add SLA Profile Add Sequence popup window, enter information for the following fields.




    Field	Description
    Sequence Number (Required)	Enter a number for the sequence. Range: 0 through 4,294,967,295 Default: None
    Application Monitor	Enter the name of an SaaS application monitor.
    SLA Measurement Scope	Select the SLA measurement scope to use for end-to-end path metrics: Gateway to Application Site to Application Site to Gateway
    Best Next-Hop Selection Criteria	Select the criteria to use for selecting the next hop among multiple gateways: Best Score—Select the SLA with the best Versa link score (VLS). Least Latency—Select the SLA with the least latency. Least Packet Loss—Select the SLA with the least packet loss.
    Maximum Threshold (Group of Fields)	Configure the maximum threshold for end-to-end path metrics. Note that the threshold settings must be consistent with the SD-WAN traffic-engineering path metrics to ensure that the data path used for traffic is consistent with the next-hop selection for BGP that is based on SLA profiles.
    Latency	Enter the maximum latency, in milliseconds. The path metrics in the traffic-engineering configuration must be consistent with the SLA profile
    Loss	Enter the maximum loss, as a percentage.
    Forwarding Class	Select a forwarding class to use for SLA measurement. Range: 0 through 15

11. Click OK.

For an example of configuring SLA-based routing, see Example of Configuring BGP SLA-Based Routing, below.

Configure BGP Peer and Peer Group Policy

A peer group policy filters the routes defined in the BGP prefix list. For matching routes, the policy can change route attributes. The policy allows or denies the advertising of these routes to the peers.

BGP peer and peer group policies consist of one or more terms for filtering BGP routes that are received from or advertised to remote BGP peers. The policy executes terms in the order in which they are listed in the term name table. Each term consists of match conditions and actions to apply to matching routes. If a route matches, an Accept or Reject action is performed by an accept term or a reject term.

A Reject term results in the rejection of the route, and no further terms are evaluated.

An Accept term sets route attributes. A BGP peer and peer group policy has the following types of Accept terms :

• Generic Accept term—Terms that are configured with the Accept action and that are not part of an AND series or an OR series. For these types of terms, the policy collects the route attributes listed on the Action tab and then continues with the next term.
• AND series—A sequence of Accept terms. The policy evaluates all terms in the sequence, and if all the terms result in a match, the policy collects the route attributes listed on the Action tab of the last term. Route attributes for other terms in the series are ignored. Evaluation continues with the next term after the AND series. You create an AND series by configuring a sequence of terms using the Next-Term field, and, in all but the last term, selecting the value AND Series in the Next-Term Action field.
• OR series—A sequence of Accept terms. The policy evaluates the terms in the sequence in order, and, for the first matching term in the series, the policy collects the route attributes listed on the Action tab for that term. After a term matches, the remaining terms in the OR series are not evaluated. Evaluation continues with the next term after the OR series. You create an OR series by configuring a sequence of terms using the Next-Term field, and, in all but the last term, selecting value OR Series in the Next-Term Action field. An example OR series configuration is shown in Configure Support for ECMP across Gateways, below.

If the policy evaluation completes the last term without rejecting the route, all attributes that are collected for accept terms, AND series, and OR series are applied to the route.

To configure a peer and peer group policy:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab in the left menu bar. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Peer/Group Policy tab.


9. Click the Add icon. The Add BGP Instance Add Peer/Group Policy popup window displays.


10. Enter a name for the peer group policy, and then click OK.
11. Click the Add icon. In the Add BGP Instance Add Peer/Group Policy Add Term popup window, select the Match tab and then enter information for the following fields.




    Field	Description
    Term Name (Required)	Enter a name for the policy term. Note that a policy executes terms in the order in which they are listed in the Term Name table.
    Family	Select the protocol family to match: IPv4 Layer 3 VPN Unicast—Use for Layer 3 VPN. IPv4 Multicast—Use for BGP. IPv4 Unicast—Use for BGP. IPv4 Versa Private—Use for SD-WAN. IPv4 VPN Multicast—Use for Layer 3 VPN. IPv6 Multicast—Use for BGP. IPv6 Unicast—Use for BGP. IPv6 VPN Multicast—Use for Layer 3 VPN. IPv6 VPN Unicast— Use for Layer 3 VPN. L2VPN EVPN—Use for Layer 2 VPN.
    AS Path	Enter the number of the AS path to match.
    Metric	Enter the BGP multiple exit discriminator (MED) value to match.
    NLRI	Select the network layer reachability information (NLRI) from the user-defined prefix lists to match.
    Source Address	Select the source address of the prefix list from the list of user-defined prefix lists to match.
    Next Hop	Select the IP address of the prefix list to use as the next hop from the user-defined prefix lists to match.
    Well-Known Community	(For Releases 21.2.1 and later.) Select a well-known community to match: no_advertise—A BGP device that receives a route containing this community value must not advertise the route to any external or internal peer. no_export—A BGP device that receives a route containing this community value must not advertise the route to its external BGP peers. However, the BGP device can advertise the route to its IBGP peers and to confederation peers in other member ASs within its local confederation. no_export_subconfed—A BGP device that receives a route containing this community value must not advertise the route to any external peer including peers in other member ASs within its confederation. If you select a well-known community, you cannot also configure a string in the Community field.
    Community	Enter the BGP community string to match. A BGP community is a group of destinations with a common property. This path attribute in BGP update messages identifies community members and performs actions at a group level instead of to an individual level. BGP communities help identify and segregate BGP routes, enabling a smooth traffic flow. If you configure a community string, you cannot also select a community in the Well-Known Community field.
    Extended Community	Enter the extended BGP community string to match. In an extended community, you can group a larger number of destinations than in a community.
    Origin	Select the source of the route: Local EGP Remote IGP Unknown Heritage
    SLA Profile (Group of Fields)	(For Releases 22.1 and later.)
    Name	Select an SLA profile.
    Next Hop	Select a next hop. You can select an individual next hop in this field, or you can configure a list of next hops in the Next-Hop List field.
    Local Circuit Name	Select a local circuit name. You can select an individual local circuit in this field, or you can configure a list or circuits in the Local Circuit List field.
    Next-Hop List	Select the sites to include in the next-hop list by clicking the box preceding the site name in the Next-Hop List table. A checked blue box indicates that a site is selected. To select or deselect all the sites in the table, click Next-Hop List. To add sites to the table, click the Add icon and then choose a site.
    Local Circuit List	Select local circuits to include in the local circuit list by clicking the box preceding the circuit name in the Local Circuit table. A checked blue box indicates that a circuit is selected. The circuit names in the local circuit list are considered for best circuit selection to reach the best next hop from the next-hop list. If you do not configure a local circuit list, the local circuit with the best SLA is used.   To select or deselect all circuits in the table, click Local Circuit List. To add circuits to the table, click the Add icon and then choose a circuit.

12. Select the Action tab to enter information for the action to take for routes that meet the match criteria. Enter information in the following fields.




    Field	Description
    Accept/Reject	Select whether to either accept or reject the route.
    Damping	Enter a value for BGP route-flap damping.
    Enable ECMP for BGP Routes in RIB	Select to perform ECMP for BGP paths in the route table. BGP performs equal-cost multipath load balancing when two or more routes have the same administrative distance.
    Origin	Select the source of the route: Local EGP Remote IGP Unknown Heritage
    Next Hop	Enter the IP address of the next hop.
    Local Preference	Enter local preference value to use to choose the outbound external BGP path. Range: 0 through 2147483647
    AS Path	Select a regular expression to match the AS path for the route: No AS path action. Prepend the local AS path the number of times specified in the Local AS Prepend Count (local-as-prepend-count) field. Remove all the AS numbers that match those specified in the Match AS Path (match as-path) field. Remove all the AS numbers that match those specified in the Match AS Path (match as-path) field, and prepend the local AS the number of times specified in the Local AS Prepend Count (local-as-prepend-count) field.
    Local AS Prepend Count	Enter the number of times to prepend the local AS number to the AS path. Range: 1 through 255
    AS Path Prepend	Enter the number of times to prepend the AS number to the AS path. Range: 1 through 4294967295
    Community Action	Select how to match the community list for a route: Community field is ignored. Remove all communities from the route. Remove all communities with the single community specified by set-community. Remove all communities that match set-community. Append the value of a single community specified by set-community to the list of communities.
    SLA Community Action	(For Releases 22.1.1 and later.) Click to enable the SLA community action, which automatically sets the community using the gateway with the best SLA.
    Well-Known Community	(For Releases 21.2.1 and later.) Select a well-known community: no_advertise—A BGP device that receives a route containing this community value must not advertise the route to any external or internal peer. no_export—A BGP device that receives a route containing this community value must not advertise the route to its external BGP peers. However, the BGP device can advertise the route to its IBGP peers and to confederation peers in other member ASs within its local confederation. no_export_subconfed—A BGP device that receives a route containing this community value must not advertise the route to any external peer including peers in other member ASs within its confederation. If you select a well-known community, you cannot also configure a string in the Community field.
    Community	Enter the BGP community string to match. A BGP community is a group of destinations with a common property. This path attribute in BGP update messages identifies community members and performs actions at a group level instead of to an individual level. BGP communities help identify and segregate BGP routes, enabling a smooth traffic flow. If you configure a community string, you cannot also select a community in the Well-Known Community field.
    Preference for this Route	Enter the preference value for the route. Range: 1 through 255
    Extended Community Action	Select how to match the extended community list for a route: Append the value of a single community specified by set-community to the list of communities. Ignore the community field. Remove all communities from the route. Remove all communities with the single community specified by set-community. Remove all communities that match set-community.
    Extended Community	Enter a value for the BGP extended community.
    Metric Action	Select a metric action to take: Add—Add constant to attribute. IGP—Track the IGP metric. Set value—Absolute value of the metric to set. Subtract—Subtract a constant value from the attribute.
    Metric	Enter the metric value to assign to the route. Range: 1 through 4294967295
    Next Term	Select the name of the next term to evaluate. You can use this field to create a sequence of terms, and then you use the Next-Term Action field to configure the sequence as an AND or OR series.
    Weight	(For Releases 21.2.1 and later.) Enter a weight value to use when receiving routes from all neighbors in the peer group. The weight value is a locally significant parameter. Range: 1 through 2147483647 Default: 0
    Next-Term Action	(For Releases 22.1.1 and later.) When you use the Next Term field, select whether to create an AND series and an OR series: AND Series—Add this term to an AND series. OR Series—Add this term to an OR series.

13. Select the Standby Action tab to enter information for the action to take when the VOS device is an interchassis high availability (HA) standby device. Enter information for the following fields.




    Field	Description
    Standby AS Path	Select the AS path action to take when the VOS device is an interchassis HA standby device: No AS path action. Prepend the local AS the number of times specified by the local AS prepend count value. Remove all AS numbers that match the AS path. Remove all AS numbers that match the AS path and prepend the local AS the number of times specified by the local AS prepend count value.
    Standby Local AS Prepend Count	Enter the number of times the local AS number is prepended to the AS path. Range: 1 through 255
    Standby AS Path Prepend	Enter the number of times to prepend the specified AS numbers to an AS path when the device is a interchassis HA standby device Range: 1 through 4294967295
    Standby Metric Action	Enter the metric action to take when the VOS device is an interchassis HA standby device: Add—Add a constant to the attribute. IGP—Track the IGP metric. Set value—Enter the absolute value of the metric to set. Subtract—Subtract a constant value from the attribute.
    Standby Metric	Enter the metric value. Range: 1 through 4294967295
    Standby Local Preference	Enter the local preference for the route while the device is an interchassis HA standby device. Range: 1 through 2147483647

14. Click OK.

Configure a BGP Peer Group

To configure a group of BGP peers, or neighbors:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Peer Group tab.


9. Click the Add icon. In the Add BGP Instance Add Peer Group popup window, enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the peer group.
   Description	Enter a text description for the peer group.
   Type	Select the type of peer group: EBGP IBGP
   Peer AS	Enter the peer's AS number.
   Local Address	Enter the IP address of the local end of a BGP session.
   Disable	Click to disable all static neighbors in the BGP group.
   Hold Time	Enter the hold time to use when negotiating with a peer. Range: 3 through 65535
   TTL	Enter the time-to-live value, which is the number of hops a packet can travel in a network before the packet expires. Range: 1 through 255 Default for EBGP: 64 (Note that you do not need to enable EBGP multihop.) Default for IBGP: 64
   Password	Enter the MD5 password that the peer group uses.
   AS Origination Interval	Enter the minimum time that must elapse between successive advertisements of Update messages that report changes within the advertising BGP device's own AS. Range: 1 through 65535
   Local Network Name	Select the network to which the peer group belongs. The name can be the network name or the local address of the peer group.
   Local AS	Enter the local AS number.
   Local AS Mode	Select the BGP AS mode to use on the local device: 1—Peering session is established with the local AS configured in the BGP instance or with a BGP group or neighbor. When BGP is importing routes, an AS number is not inserted in the AS path. When BGP is exporting routes, the selected local AS number is prepended to the AS path. 2—Peering session is established with local AS configured as a BGP group or neighbor. When BGP is importing routes, the local AS number of the group or neighbor is inserted in AS path. When BGP is exporting routes, the local AS number configured on the BGP group or neighbor and the local AS number configured for the BGP instance are prepended to the AS path. This is the default. 3—Peering session is established with the local AS configured for the BGP group or neighbor. When BGP is importing routes, no AS number is inserted in the AS path. When BGP is exporting routes, the local AS configured for the BGP group or neighbor and and the local AS number configured for the BGP instance are prepended to AS path. 4—Peering session is established with the local AS number configured for the BGP group or neighbor. When BGP is importing routes, no AS number is inserted in the AS path. When BGP is exporting routes, the local AS number configured for the BGP group or neighbor is prepended to the AS path. 5—(For Releases 22.1.1 and later) Peering session is established with the local AS number configured for the BGP group or neighbor. When BGP is importing routes, the local AS in the BGP group or neighbor is inserted in the AS path. When BGP is exporting routes, the local AS number configured in the BGP group or neighbor is prepended to the AS path. Default: 2
   Weight	(For Releases 21.2.1 and later.) Enter a weight value to use when receiving routes from all neighbors in the peer group. The weight value is a locally significant parameter. Range: 1 through 2147483647 Default: 0
   Suppress Peer AS	(For Releases 21.2.1 and later.) Click to suppress and not advertise routes received from an EBGP neighbor to another neighbor that is in the same AS as originating neighbor.
   Relax First AS Check	(For Releases 21.2.1 and later.) Click to relax the check that the first (left-most) AS number in an AS path receives from an EBGP neighbor is same as neighbor's AS.
   Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.
   Next Hop Unchanged	Click to preserve the BGP next hop when forwarding routes to the EBGP peer.

10. Select the General tab to configure global information for the BGP peer group. Enter information for the following fields.


    Field	Description
    Family (Required)	Select the protocol family for the peer group: IPv4 Unicast—Applicable to BGP IPv4 Multicast—Applicable to BGP IPv4 Versa Private—Applicable to SD-WAN IPv4 Layer 3 VPN Unicast—Applicable to Layer 3 VPN IPv4 VPN Multicast—Applicable to Layer 3 VPN IPv6 Unicast—Applicable to BGP IPv6 Multicast—Applicable to BGP IPv6 VPN Unicast— Applicable for Layer 3 VPN IPv6 VPN Multicast—Applicable for Layer 3 VPN L2VPN EVPN—Applicable for Layer 2 VPN
    Loop Count	Enter the number of times the local AS is allowed in the received AS path. For example, if you set the loop value to 5, the local AS in received AS paths can appear five times.
    Prefix Limit (Group of Fields)	Limit the number of prefixes received from a session with a BGP neighbor.
    Maximum	Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647
    Threshold	Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reached, the VOS device send an SNMP trap warning message. Range: 1 through 100 percent
    Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
    Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
    Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.
    Next Hop Unchanged	Click to preserve the BGP next hop when forwarding routes to the EBGP peer.

11. Select the Neighbors tab to configure BGP peers.



12. Click the Add icon. In the Add BGP Instance Add Peer Group Add Neighbor popup window, enter information for the following fields.




    Field	Description
    Neighbor IP (Required)	Enter the peer's IP address.
    Peer AS	Enter the peer's AS number.
    Local Address	Enter the IP address of the the local end of the BGP session.
    Hold Time	Enter the hold time to use when negotiating with the peer. Range: 3 through 65535 seconds
    TTL	Enter the number of hops a packet can travel in a network before the packet expires. Range: 1 through 255 Default for EBGP: 64 (Note that you do not need to enable EBGP multihop.) Default for IBGP: 64
    Password	Enter the MD5 password for the neighbor.
    Local Network Name	Select the network to which the neighbor peer group belong. The name can be the network name or the local address of the peer group.
    Local AS	Enter the local AS number.
    Local AS Mode	Select the BGP AS mode to use on the local device: 1—Peering session is established with the local AS configured in BGP instance or with a BGP group or neighbor. When BGP is importing routes, an AS number is not inserted in the AS path. When BGP is exporting routes, the selected local AS number is prepended to the AS path. 2—Peering session is established with local AS configured as a BGP group or neighbor. When BGP is importing routes, the local AS number of the group or neighbor is inserted in AS path. When BGP is exporting routes, the local AS number configured on the BGP group or neighbor and the local AS number configured for the BGP instance are prepended to the AS path. This is the default. 3—Peering session is established with the local AS configured for the BGP group or neighbor. When BGP is importing routes, no AS number is inserted in the AS path. When BGP is exporting routes, the local AS configured for the BGP group or neighbor and and the local AS number configured for the BGP instance are prepended to AS path. 4—Peering session is established with the local AS number configured for the BGP group or neighbor. When BGP is importing routes, no AS number is inserted in the AS path. When BGP is exporting routes, the local AS number configured for the BGP group or neighbor is prepended to the AS path. 5—(For Releases 22.1.1 and later.) Peering session is established with the local AS number configured for the BGP group or neighbor. When BGP is importing routes, the local AS in the BGP group or neighbor is inserted in the AS path. When BGP is exporting routes, the local AS number configured in the BGP group or neighbor is prepended to the AS path. Default: 2
    AS Origination Interval	Enter the minimum amount of time that must elapse between successive advertisements of Update messages that report changes within the advertising BGP speaker's own AS. Range: 1 through 65535
    Weight	(For Releases 21.2.1 and later.) Enter a weight value to use when receiving routes from all neighbors in the peer group. The weight value is a locally significant parameter. Range: 1 through 2147483647 Default: 0
    Description	Enter a text description for the BGP peer.
    Suppress Peer AS	(For Releases 21.2.1 and later.) Click to suppress and not advertise routes received from an EBGP neighbor to another neighbor that is in the same AS as originating neighbor.
    Relax First AS Check	(For Releases 21.2.1 and later.) Click to relax the check that the first (left-most) AS number in an AS path receives from an EBGP neighbor is same as neighbor's AS.
    Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.
    Next Hop Unchanged	Click to preserve the BGP next hop when forwarding routes to the EBGP peer.
    Disable	Disable all static neighbors in the BGP group.
    General (Tab)
    Family	Select the protocol family of the neighbor peer group: IPv4 Layer 3 VPN Unicast—Use for Layer 3 VPN. IPv4 Multicast—Use for BGP. IPv4 Unicast—Use for BGP. IPv4 Versa Private—Use for SD-WAN. IPv4 VPN Multicast— Use for Layer 3 VPN. IPv6 Multicast—Use for BGP. IPv6 VPN Multicast—Use for Layer 3 VPN. IPv6 Unicast—Use for BGP. IPv6 VPN Unicast— Use for Layer 3 VPN. L2VPN EVPN—Use for Layer 2 VPN.
    Loop Count	Enter the number of times the local AS is allowed in the received AS path.
    Prefix Limit (Group of Fields)	Limit the number of prefixes received from a session with a BGP neighbor.
    Maximum	Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647
    Threshold	Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reached, the VOS device send an SNMP trap warning message. Range: 1 through 100 percent
    Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
    Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
    Soft Reconfiguration	(For Releases 21.2.1 and later.) Click to keep received routes even if the routing peer policy rejects the routes.
    Next Hop Unchanged	Click to preserve the BGP next hop when forwarding routes to the EBGP peer.
    Advanced (Tab)	In the Advanced tab, enter information for the following fields.

    Passive	Select to have BGP accept traffic only and not transmit any routes.
    Remove All Private AS	Select to remove all private AS numbers before advertising routes.
    Route Reflector Client	For IBGP, select to have the router function as a route reflector and to broadcast the routes of all other routers in the network
    AS Override	Select to replace neighbor AS numbers with the local AS numbers from the AS path.
    Prefix Limit (Group of Fields)	Limit the number of prefixes received from a BGP neighbor.
    Maximum	Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647
    Threshold	Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reach, the VOS device send an SNMP trap warning message. Range: 1 through 100 percent
    Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
    Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
    Policy (Group of Fields)
    Import	Select the peer group policy to apply to routing updates coming from remote BGP peers.
    Export	Select the peer group policy to apply to routing updates advertised to remote BGP peers.
    Non-Exit Policy	Select the policy that defines the route being withdrawn. Routes matching the advertised policy are advertised to peers only if no routes in the local route table match the non-exist policy.
    Advertise Policy	Select the policy that defines the route to be advertised to the BGP peer after the route in the non-exist policy is withdrawn.
    Enable BFD	Click to enable BFD on the interface, to allow BFD to report when a static route becomes unavailable.
    Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds.
    Multiplier	Enter the multiplier value to use to calculate the final minimum receive interval and minimum transmit interval.
    Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds.

13. Click OK to add the BGP neighbor.
14. In the Add Peer Group popup window, select the Allow tab to allow BGP peers to form a session with the local device. When you enable allow, you do not have to configure a neighbor for the allowed addresses or address range in the Neighbors tab. Enter information for the following fields.



    Field	Description
    Allow All v4	Click to allow incoming BGP peering sessions from any IPv4 peer neighbor request.
    Allow All v6	Click to allow incoming BGP peer sessions from any IPv6 peer neighbor request.
    IP Address/Mask	Click the Add icon, and then add the IP address or IP address network range of peers that are allowed to form peering sessions with the local device.

15. In the Add Peer Group popup window, select the Advanced tab to configure the peer group routes to accept. Enter information for the following fields.



    Field	Description
    Passive	Click to have BGP accept traffic only and not transmit any routes.
    Remove All Private AS Numbers	Click to remove all private AS numbers before advertising routes.
    Route Reflector Client	For IBGP, click to have the router function as a route reflector and to broadcast the routes of all other routers in the network
    Next-Hop Self	Click to use the IP address of the prefix list.
    AS Override	Click to replace neighbor AS numbers with the local AS numbers from the AS path.
    Share ARO	Click to share all the routes of the Adj-RIB-Out (ARO) RIB among all neighbors in an IBGP group. Enabling this option saves internal memory. This option works only when all members of the BGP peer group use the same outbound BGP policy. For this option to take effect after you configure it, you must bring down the established BGP peer sessions that are part of the peer group and then bring them back up again. One way to do this is to disable the peer group and then re-enable it.
    Prefix Limit (Group of Fields)	Limit the number of prefixes received from a session with a BGP neighbor.
    Maximum	Enter the maximum number of prefixes that can be received from the BGP neighbor. Range: 1 through 2147483647
    Threshold	Enter a threshold of prefixes as a percentage of the maximum number of prefixes. When the threshold is reached, the VOS device send an SNMP trap warning message. Range: 1 through 100 percent
    Restart Interval	When the Action field is set to Drop, enter how long to wait, in seconds, to re-establish a session that is dropped when the maximum prefix limit is reached. Range: 30 through 86400 seconds
    Action	Select the action to take when the maximum prefix limit is exceeded: Drop—Drop the BGP session to the neighbor. Warn—Send a warning message.
    Policy (Group of Fields)	Advertise routes matching the advertise policy to peers only if no routes in the local route table match the non-exist-policy.
    Import	Select the peer group policy to apply to outgoing routing updates.
    Export	Select the peer group policy to apply to incoming routing updates.
    Non-Exist Policy	Select the name of a policy to use when you are configuring conditional route advertisements. In the Non-Exist Policy field, select the policy that defines the route being withdrawn. For more information, see Configure BGP Conditional Route Advertisements, below.
    Advertise Policy	Select the name of a policy to use when you are configuring conditional route advertisements. In the Advertise Policy field, select the policy that defines the route to be advertised to the BGP peer after the route in the non-exist policy is withdrawn. For more information, see Configure BGP Conditional Route Advertisements, below
    Enable BFD	Click to enable BFD on the interface, to allow BFD to report when a static route becomes unavailable.
    Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds.
    Multiplier	Enter the multiplier value used to calculate the final minimum receive interval and minimum transmit interval.
    Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds.

8. Click OK.

Configure Route Aggregation

In BGP, you can aggregate routes to minimize the number of entries in a a routing table and to minimize the number of routing tables required in an IP network.

To configure route aggregation:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Route Aggregation tab.



9. Click the Add icon in the IPv4 Unicast, IPv4 Multicast, or IPv6 Multicast section, and in the popup window, enter information for the following fields.



   Field	Description
   Prefix	Enter the IPv4 or IPv6 address to advertise as the aggregate route.
   Passive	Click to create an aggregate route even when there are no contributing routes on the device.
   Reject	Click to assign the reject next hop to the aggregate route. When you select this option, if a more specific route to the destination does not exist on the device, the packet is dropped and an ICMP unreachable message is sent to the sender.
   Summary Only	Click to automatically suppress contributing routes and advertise only the aggregate (summary) route to peers.
   AS Set	Click to add the AS numbers of contributing routes to the AS path of the aggregate route as an AS set.
   No Advertise Policy	Select the routing peer policy that defines the contributing routes that should not be advertised.
   Non-Contributing Policy	Select the routing peer policy that defines the set of routes that do not act as contributing routes.
   Attribute Policy	Select the name of the policy that allows the setting of aggregated route attributes.

10. Click OK.

Configure Damping Policy

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the  Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab in the left menu bar. The main pane displays a list of the BGP instances that are already configured.
7. Click the  Add icon. The Add BGP Instance popup window displays.
8. Select the Damping Policy tab.


9. Click the  Add icon, and enter information for the following fields.




   Field	Description
   Damping Name	Enter a name for the damping policy.
   Suppress	Enter the cutoff threshold limit. Routes exceeding this level are suppressed.
   Maximum Suppress Time	Enter the maximum time a route can be suppressed (held), in minutes
   Reuse	Enter the reuse threshold of a suppressed route.
   Half Life OK	Enter the decay half life time, in minutes, to define the stability of the route while it is still reachable
   Half Life Ng	Enter the decay half life time, in minutes, to define the stability of the route while it is unreachable.
   Maximum Time OK	Enter the maximum time, in minutes, any memory of a previous instability is retained for a reachable route.
   Maximum Time Ng	Enter the maximum time, in minutes, any memory of a previous instability is retained for an unreachable route.

10. Click OK. The Add BGP Instance popup window displays the configured damping policies.

Enable BGP Versa Private TLVs

For Releases 21.2.1 and later.

You can enable the BGP Versa private type-length-value (TLV) site information on the provider's virtual router (VR) so that the gateway and group FQDNs are distributed to all the other gateways. In this way, each gateway can learn which gateways are part of a group.

Note that in a multitenant deployment, that is, in a deployment with a provider that has additional tenants, you enable the Versa private TLV information in the multiprotocol BGP (MP-BGP) instance associated with the provider organization (that is, in the provider control VR), not in the tenant control virtual routers.

To enable BGP Versa private TLV site information:

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab in the left menu bar. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Versa Private TLV tab, and then enter information for the following fields.




   Fields	Description
   Site Information (Group of Fields)
   Announce Local	Click to enable gateways or hub-controller nodes (HCN) to support selection of the best gateway.
   Announce Remote	Click only if the gateways and hub-controller nodes are not in a full-mesh topology.

9. Click OK.

Configure Advanced BGP Settings

1. If you have already started configuring BGP, skip to Step 8.
2. Otherwise, in Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
3. Select the Configuration tab in the top menu bar.
4. Select Networking > Virtual Routers in the left menu bar.
5. Click the Add icon. The Configure Virtual Router popup window displays.
6. Select the BGP tab in the left menu bar. The main pane displays a list of the BGP instances that are already configured.
7. Click the Add icon. The Add BGP Instance popup window displays.
8. Select the Advanced tab and enter information for the following fields.





   Field	Description
   Cluster ID	Enter the cluster ID of the reflector clients.
   Path Selection (Group of Fields)
   Always Compare MED	Click to compare multiexit discriminators when sending routes to another router. A route with a lower MED is given priority.
   Cisco Nondeterministic	Click to use Cisco nondeterministic path selection. The active path is always first. All non-active, but eligible paths follow the active path and are maintained in the order in which they are received, with the most recent path first. Ineligible paths remain at the end of the list. When a new path is added to the routing table, path comparisons are made without removing from consideration those paths that should not be selected because those paths lose the MED tie-breaking rule.
   AS Path Ignore	(For Releases 21.2.1 and later.) Click to exclude the AS path from BGP best path computation.
   AS Path Multipath Relax	(For Releases 21.2.1 and later.) Click to allow different AS paths to be considered for multipath if the AS path length is equal.
   Enable BFD	Click to mark the link as down whenever the BFD is down.
   Minimum Receive Interval	Enter the time interval, in milliseconds, to mark the link as down if the routing updates are not received.
   Multiplier	Enter value to use to compute the final minimum receive interval.
   Minimum Transmit Interval	Enter how often BGP instances communicate with each other, in milliseconds.
   Route Flap Option (Group of Fields)
   Free Maximum Time	Enter the maximum time to remember an assigned penalty to the router, in seconds. A penalty is assigned to a router when its routes go up and down.
   Reuse Maximum Time	Enter the time corresponding to the last reuse list, in minutes.
   Reuse Size	Enter the number of reuse lists.
   Reuse Array Size	Enter the size of the reuse index arrays.
   Enable Graceful Restart (Group of Fields)	Click to enable BGP graceful restart.
   Maximum Restart Time	Enter the restart time, in seconds, that is advertised to a neighbor on which graceful restart is enabled. Range: 1 through 3600 seconds (1 hour) Default: 3600 seconds (for Controller BGP sessions)
   Stale Path Time	Enter the maximum time, in seconds, that BGP waits before removing stale routes from a neighbor after a graceful restart of the neighbor's session. Enter the maximum amount of time, in seconds, that a helper device waits for an End-of-RIB marker from a peer. When this time period expires, all stale path are deleted. Range: 1 through 3600 seconds (1 hour) Default: 3600 seconds (for Controller BGP sessions)
   Recovery Time	Enter the estimated recovery time, in seconds, after a restart. Range: 1 through 3600 seconds (1 hour) Default: 120 seconds
   Defer Time	Enter how long, in seconds, a restarting router defers its BGP best-path calculation after a restart occurs and while BGP peering sessions are establishing themselves. This time should should be long enough so that all peers have enough time to send all their routes to the restarting BGP router. Range: 1 through 3600 seconds (1 hour) Default: 30 seconds (for Controller BGP sessions)
   Dynamic Peer Restart Time	Enter the minimum time, in seconds, for a peer to dynamically reconnect after the BGP process restarts. Range: 1 through 3600 seconds (1 hour) Default: 120 seconds
   Multiplier	Enter a multiplier value that, when multiplied by the stale path time, provides a value that is used to hold the routes from a peer that are in RIB/RIB in the stale state after the BGP session with that peer goes down. Note that this multiplier value is not related to the BFD multiplier. Range: 1 through 255 Default: 8 (for Controller BGP sessions)
   Family (Group of Fields)	Protocol family for NLRIs in updates.
   Family	Select the protocol: IPv4 Unicast—Use for BGP IPv4 Multicast—Use for BGP IPv4 Versa Private—Use for SD-WAN IPv4 Layer 3 VPN Unicast—Use for Layer 3 VPN IPv4 VPN Multicast—Use for Layer 3 VPN IPv6 Unicast—Use for BGP IPv6 Multicast—Use for BGP IPv6 VPN Unicast— Use for Layer 3 VPN IPv6 VPN Multicast—Use for Layer 3 VPN L2VPN EVPN—Use for Layer 2 VPN
   Forwarding State Bit	Select the forwarding state bit to preserve the forwarding state associated with the AFI/SAFI.

9. Click OK.

Configure BGP Conditional Route Advertisements

To have BGP to advertise a route based on a specific situation, you configure a conditional route advertisement. To configure the conditional route, you define the prefixes and then you create policies and apply the policies to the BGP peer group.

To illustrate how to configure BGP conditional route advertisements, let's consider a situation where you want BGP to advertise a route only when another route is withdrawn and becomes unavailable. For this example, you configure the following:

• Two prefix lists, one for the unavailable prefix and one for the backup prefix to advertise.
• Two policies, one with a term that matches the unavailable prefix (which here is called Non-exist) and one with a term that matches the backup prefix to advertise (which here is called Advertise).
• A BGP peer group that refers to the two policies

In the example, the two routes are for the prefixes 192.168.0.0/24, which is the primary prefix that is used in the non-exist policy, and 192.168.1.0/24, which is the backup prefix used in the advertise policy.

To configure a BGP conditional route advertisement:

1. In Director view:
   1. Select the Administration tab in the top menu bar.
   2. Select Appliances in the left menu bar.
   3. Select an appliance in the main pane. The view changes to Appliance view.
2. Select the Configuration tab in the top menu bar.
3. Select Networking > Virtual Routers in the left menu bar.
4. Click the Add icon. The Configure Virtual Router popup window displays.
5. Select the BGP tab The main pane displays a list of the BGP instances that are already configured.


6. Click the Add icon. The Add BGP Instance popup window.
7. Select the Prefix List tab. Here, you create two prefix lists, Non-Existent, for the prefix 192.168.0.0/24, and Advertise, for 192.168.1.0/24.


8. To create the Non-Existent prefix list, click the Add icon and enter the prefix list name as Non-Existent.


9. To add a prefix list sequence, click the Add icon, and then select Permit in the Action field and enter the prefix 192.168.0.0/24.


10. Click OK.
11. To create the Advertise prefix list, click the Add icon on the Prefix List tab, and then enter the prefix list name as Advertise. To add a prefix list sequence, click the Add icon, and then select Permit in the Action field and enter the prefix 192.168.1.0/24.
12. Click OK.
13. Click OK to return to the BGP Instance screen.
14. Select the Peer/Group Policy tab. Here, you create two peer group policies, one for the Non-Existent prefix list and the second for the Advertise prefix list. You must create both policies.


15. To create the Non-Existent peer group policy, click the Add icon and enter a name for the policy.


16. To create a term, click the Add icon. Enter a name for the term. Then, select the Match tab, and in the NLRI field, select the prefix list Non-Existent. In the Action tab, use the default action, which is Accept.


17. Click OK.
18. To create the Advertise peer group policy, click the Add icon and enter a name for the policy.
19. To create a term. Click the Add icon. Then, select the Match tab, and in the NLRI field, select the prefix list Advertise. In the Action tab, use the default action, which is Accept.


20. Click OK.
21. Click OK to return to the BGP Instance popup window.
22. To associate the policies with the BGP peer group, select the Peer Group tab. In this example, we want to advertise the prefix 192.168.1.0/24 to the peer only if the prefix 192.168.0.0/24 is withdrawn from the route table (RIB). Select the peer group, and then select the Advanced tab. In the Policy group of fields, in the Non-Exist Policy. field select the Non-Existent policy, and in the Advertise Policy field select the Advertise policy. With this configuration, the BGP peer does not receive the route shown in the Advertise field until the route show in the Non-Exist field is withdrawn.



23. Click OK.

Example of Configuring BGP SLA-Based Routing

For Releases 22.1.1 and later.

This section shows an example of how to configure BGP SLA-based routing. In this example, gateways propagate application SLA metrics using multiprotocol BGP messages to all reachable branch devices. The branches can use these metrics in routing policies to influence the priority of routes, to mark specific communities, and to influence AS path manipulation, so that the branch can select the best route based on SLA metrics.

In the example, we configure peer and peer group policies on two VOS devices, Branch1 and Gateway1 (POP1 GW1), as illustrated in the topology shown in the following figure. The topology consists of two regions, with two branch devices and two gateway devices in each region. Each branch device has a circuit to each gateway in its region.


In the example, we configure the following types of profiles and policies:

• On the VOS branch devices:
  • SLA profiles to use in the peer and peer group policies. See Configure SLA Profiles on the VOS Branch Devices.
  • A peer and peer group import policy. See Configure the Peer and Peer Group Import Policy on the VOS Branch Devices.
  • A peer and peer group export policy. See Configure the Peer and Peer Group Export Policy on the VOS Branch Devices.
  • A peer and peer group export policy to support equal-cost multipath routing (ECMP) across gateways. See Configure Support for ECMP across Gateways.
• On the gateways:
  • A peer and peer group policy to influence the AS paths length. See Configure Terms on the Gateways To Influence the AS Path Length.

Supported Software Information

Releases 20.2 and later support all content described in this article, except:

• Release 21.2.1 adds the following BGP configuration fields: AS Path Ignore, AS Path Multipath Relax, Community 4-Byte, Relax First AS Check, Soft Reconfiguration, Suppress Peer AS, Weight, Well-Known Community, and Private TLV .
• Release 22.1.1 adds support for configuring next-term action and SLA profiles.

Additional Information

Configure Stateful Interchassis HA
Configure IP Multicast
Configure IP SLA Monitor Objects
Configure Virtual Routers
Troubleshoot Routing Protocols
