Manage Organization Settings

Add Custom Log Profiles

Titan Portal sends syslog messages when the following match conditions are met:

• Firewall—Add security rules and select custom logs. For more information, see Manage Firewall Policies.
• Steering—Add profile rules and select custom logs. For more information, see Create a Traffic-Steering Profile.
• Decryption—Add rule and select custom logs. For more information, see Configure TLS Decryption.

To add a customer flow log profile in the Titan Inventory:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.



2. Select Custom Logs Profile and enter information for the following fields.




   Field	Description
   Profile Name	Enter a name for the profile.
   IP Address	Enter the IP address of the syslog server. Click the icon to add multiple IP addresses.
   Port Number	Enter the port number.
   Protocol	Select the protocol: TCP UDP
   Log Type	Select the log message format: IPFIX Syslog
   Region	Select a region.

3. Click Add. The flow log profile is displayed.
4. Click the icon to edit the profile.

Add an SNMP Profile

You can configure SNMP at the branch level. You specify the SNMP version that the Titan device supports and the SNMP server to which the Titan device connects. You must configure an SNMP on at least one device to which the SNMP server is attached. For more information, see Configure Miscellaneous Parameters.

If you want to modify an SNMP profile configuration, you must lock the device, make the changes, and then deploy the device for the changes to take effect.

To add SNMP profile in the Titan Inventory:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.

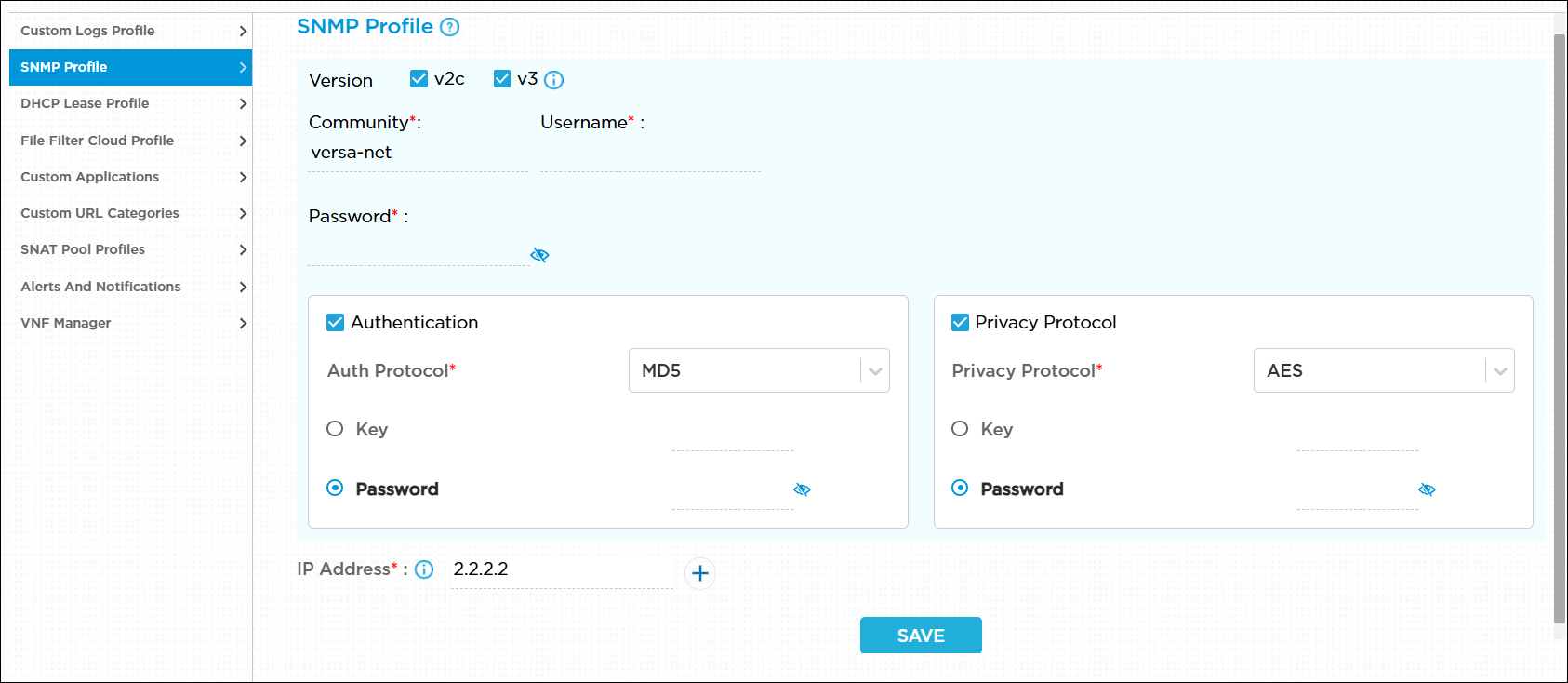

2. In the Management Profile popup window, click SNMP Profile and then enter information for the following fields.




   Field	Description
   Version	Select one or more SNMP versions: v2c v3
   Community (Required)	For SNMPv2c, enter the SNMP community string to use to access the SNMP server.
   Username (Required)	For SNMPv3, enter the username to use to access the SNMP server
   Password (Required)	For SNMPv3, enter the password for the username.
   IP Address	Enter the IP address of the SNMP server. Click the + icon to add multiple SNMP server IP addresses.

3. Click Save.

Add a DHCP Lease Profile

A DHCP lease profile specifies the duration and properties of the lease profile.

To add a DHCP lease profile:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.

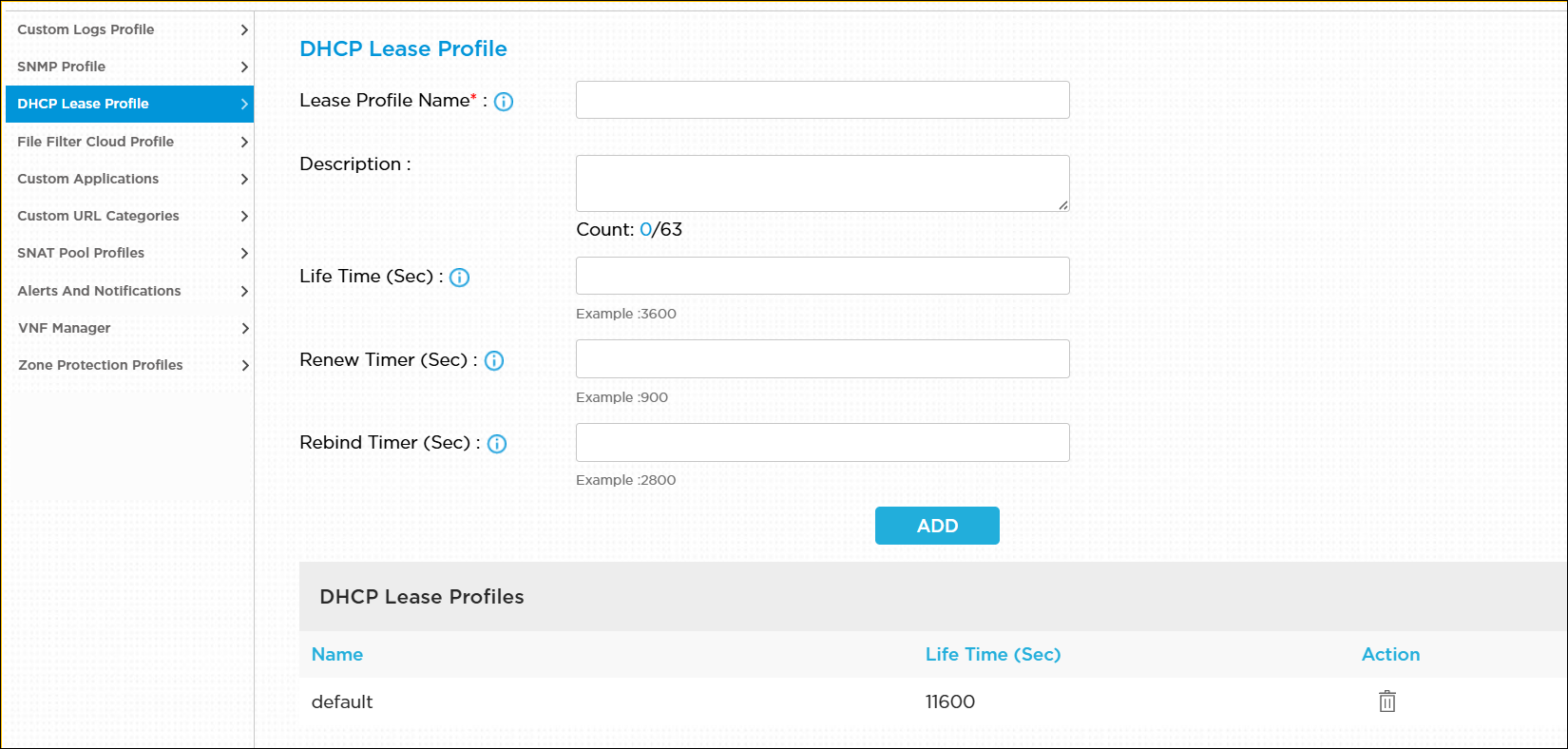

2. Select DHCP Lease Profile, and enter information for the following fields.




   Field	Description
   Lease Profile Name (Required)	Enter a name for the lease profile. The name cannot include any spaces.
   Description	Enter a text description for the lease profile.
   Life Time	Enter how long the lease profile is valid. Range: 60 through 31536000 seconds Default: 11600 seconds
   Renew Timer	Enter the time during which a client can renew the lease profile. You can configure the renew timer to be less than or equal to 50 percent of the valid lifetime. Range: 60 through 31536000 seconds Default: 10000 seconds
   Rebind Timer	Enter the time during which a rebind request can be sent by a client after a period of inactivity. You can configure the rebind timer to be less than or equal to 80 percent of the valid lifetime. Range: 60 through 31536000 seconds Default: 20001 seconds

3. Click Add. The lease profile is displayed.
4. Click the icon to delete the profile. You cannot edit a lease profile.

Add a Cloud Profile for File Filtering

If you enable cloud lookup on Titan Portal, you can configure a cloud profile to look up information about the file on a cloud server. After completing the lookup, the profile marks the file for further action. If you configure a reputation-based action, you must create a cloud profile. See Configure File Filtering.

To configure a cloud profile for file filtering:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.

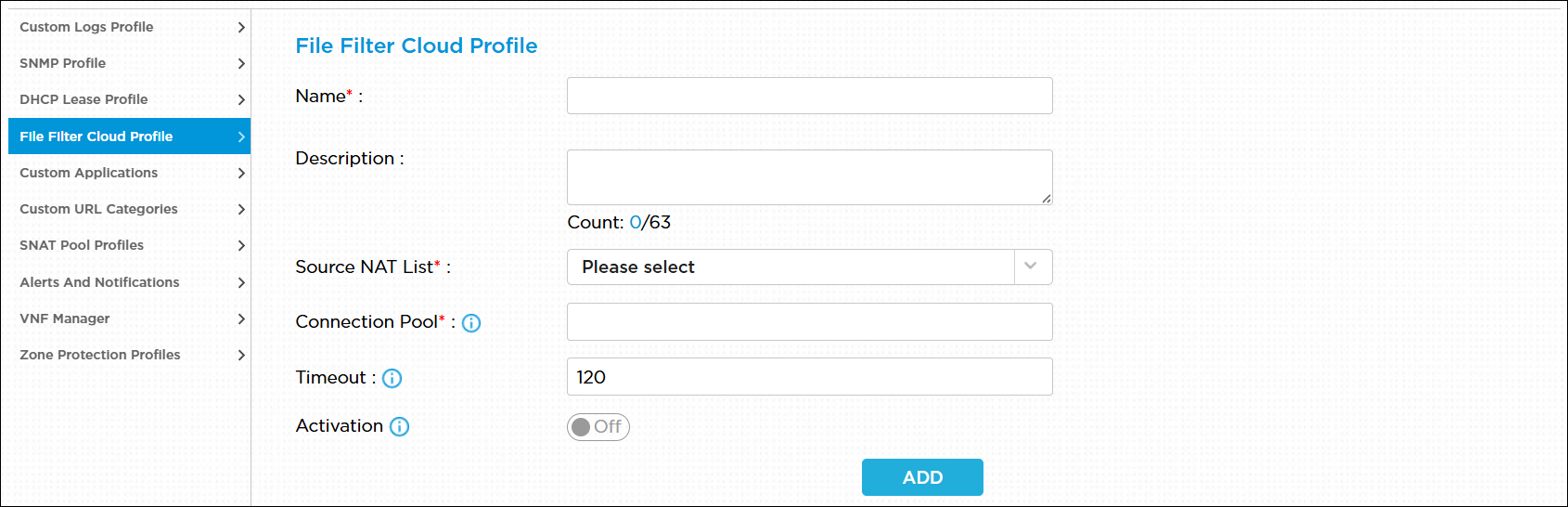

2. Select File Filter Cloud Profile and enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the cloud profile.
   Description	Enter a text description for the cloud profile.
   Source NAT List (Required)	Select the SNAT pool to configure cloud lookup for file filtering. The SNAT pool is linked to a routing instance that connects to the cloud server. To create an SNAT pool profile, see Add SNAT Pool Profiles.
   Connection Pool (Required)	Enter the number of simultaneous connections to the SSL cloud server. Range: 1 to 100000 Default: None
   Timeout	Enter the maximum timeout period to wait for a response from the SSL cloud server, in seconds. Range: 1 through 4294967295 seconds Default: 120 seconds
   Activation	Click the toggle to activate the cloud lookup profile.

3. Click Add. The cloud profile displays in the list.
4. Click the Edit icon to update the cloud profile, and then click Update to save the changes.
5. Click the icon to delete the cloud profile. You cannot edit a lease profile.

Add Custom Applications

You can create custom application on a per-tenant basis, and then the custom application objects becomes available to all devices to use for configuration. When you add a custom application, it is added automatically to the custom application list on Versa Director and VOS devices for all active devices. If a device is down, you can publish the custom application after the device is up.

To add custom applications:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.


2. Select Custom Applications and enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the application.
   Description (Required)	Enter a text description for the application.
   Precedence (Required)	Enter a unique priority number to use when multiple applications match the traffic. The application with a higher precedence value is matched first. Range: 0 through 65535
   Application Timeout	Enter how long to wait, in seconds, for the application to timeout because of inactivity.

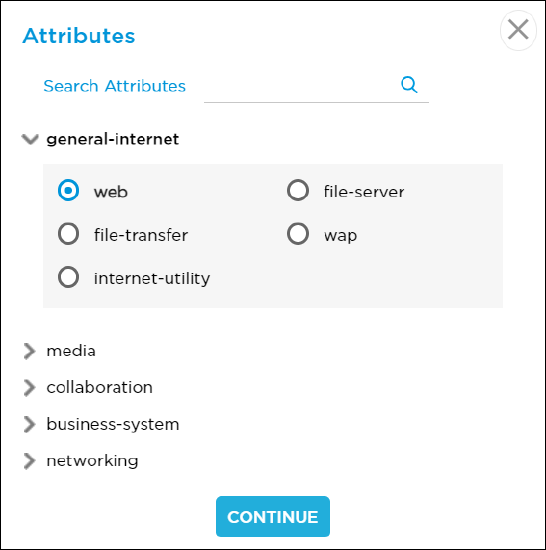

   Attributes (Required)	Click Select. In the Attribute popup window, select an attribute and then click Continue.
   Match Information (Group of Fields)
   Name (Required)	Enter a name for the match rule name for the custom application.
   Host Pattern	Enter the host pattern to detect.
   Protocol Value	Enter the applications protocol value to detect.
   Source IP Address	Enter the source IP address of the application on which the rule is applicable.
   Destination IP Address	Enter the destination IP address of the application on which the application rule is applicable.
   Source Port	Click to enable and assign a custom source port for the application.   Value—Select to enable the Source Port Value field, and then enter the application port on which the security policy is applicable. Range—Select to enable the Low and High fields, and then enter the lowest and highest source port numbers on which the security policy is applicable.
   Destination Port	Click to enable, and assign a custom destination port for the application. Value—Select to enable the Source Port Value field, and then enter the application port on which the security policy is applicable. Range—Select to enable the Low and High fields, and then enter the lowest and highest destination port numbers on which the security policy is applicable.

3. Click Add. The match information is added to the list.
4. Click Add Application. The custom application profile is added to the list.
5. Click the Edit icon to update the custom application profile, and then click Update Application to save the changes.
6. Click the icon to delete the custom application profile.
7. Click the icon, select a device from the Device List popup window, and then click Publish to publish the profile to the device.

Add Custom URL Categories

You can create custom URL category objects on a per-tenant basis. Each custom URL category has a unique name. For a custom URL category, you configure a string or pattern match to define the URLs to match. You can associate a reputation value with the URL category. You can use a custom URL category in SD-WAN policy rules to specify match criteria for a Layer 7 URL category.

A custom URL category is added automatically to the user-defined URL category list on the Director and VOS devices for all active devices. If a device is down, you can publish the custom URL category after the device comes up.

To add custom URL categories:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.


2. Select Custom URL Categories and enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the custom URL category profile. The name cannot include any spaces.
   Description (Required)	Enter a text description of the URL category.
   Confidence (Required)	Enter a confidence value for the URL category. The confidence value is used to break a tie when multiple URL categories match a single URL. A higher confidence value takes precedence. Range: 1 through 100
   URL Pattern	Click to configure a URL pattern.
   Pattern (Required)	Enter the URL pattern to match. You can include regex patterns. If you include a backslash (\) or an open curly brace ({) in the regex pattern, you must escape it by preceding it with a backslash. For example: www.versa-networks.com www.example.* www.*.example.com
   URL Reputation (Required)	Select a predefined reputation from the list to assign it to the URL match pattern.
   Add icon	Click the Add icon to add additional patterns.
   URL String	Click to configure a URL string.
   String (Required)	Enter a URL string. For example: https://example.com/profile http://example.com/profile example.com https://.*example.com https://example.* *.example.com
   URL Reputation (Required)	Select a predefined reputation from the list to assign it to the URL string.
   Add icon	Click the Add icon to add additional strings.

3. Click Add. The custom URL category is added to the list.
4. Click the Edit icon to update the custom URL category profile, and then click Update to save the changes.
5. Click the icon to delete the custom URL category profile.
6. Click the icon, select a device from the Device List popup window, and then click Publish to publish the profile to the device. You can publish the failed devices again.

Add VPN Profiles

VPN profiles is not supported.

Add SNAT Pool Profiles

You can create SNAT pools and associate them with DNS proxy and ;file-filtering profiles.

To create SNAT pool profiles:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.


2. In the Management Profile popup window, click SNAT Pools Profiles, and then enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the SNAT pool. By default, the cpsp_ prefix is added to the name of the SNAT profile.
   Egress Network (Required)	Select an egress network to associate with the SNAT pool.

3. Click Add.
4. Click the icon to delete the SNAT pool profile.

Configure Alerts and Notifications

If you configure an email for any specific alarms, Titan Portal sends an email to the user informing them about an alarm, when there is an alarm generated.

To configure email notifications for alarms:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.


2. Click Alerts and Notifications, and enter information for the following fields.




   Field	Description
   Rule Name (Required)	Enter a name for the rule.
   Alert on Clear	Click to send an email notification when an alarm clears.
   Email (Required)	For email notifications, enter one or more email recipients, and then click the  icon.
   CC	For email notifications, enter one or more recipients to copy on the email, and then click the  icon.
   Message	For email notifications, enter the text of the email message.
   Custom Condition Set	Displays the name for the match conditions set. The name is automatically generated and is based on the name of the notification rule.  To add a condition, Click the  icon. In the Add Conditions popup window, select one or more conditions to match. If you select more than one, all conditions must match for the rule to take effect. That is, the conditions are an AND operation. Note that in a single condition, you can specify only one of each attribute type (that is, only one alarm text, only one device name, and so forth. Condition Set (Required)—Displays the name for the match conditions set. The name is automatically generated and is based on the name of the notification rule. Attributes (Required)—Select the criteria to use to determine when to send an email notification: Alarm Text—Send a notification based on the text in an alarm message. Alarm Type—Send a notification based on the alarm type.  Count, Wait—Send a notification based on the number of alarms that occur within a wait time window. In the Count field, specify the number of alarms that occur in the wait time window, in minutes. In the Wait field, specify the length of the time window in which to count alarms, in minutes. The window is not a fixed period of time, but rather is a sliding window. As it slides, alarms that are too old fall out of the window and are no longer counted. If the number of alarms does not reach the configured count value within the wait window, no email is sent. You must define values for both the Count and Wait parameters. If you configure the Count and Wait parameters, you cannot also configure a value in the Soak Time fields. These fields are mutually exclusive. Device Name—Send a notification based on the device name that appears in an alarm. Severity—Send a notification based on the alarm message severity. The alarm severity can be one of the following: Cleared Critical Indeterminate Major Minor Warning Soak Time—Do not send a notification unless the conditions that trigger the rule are still present after the specified amount of time, in seconds. Configure a soak time to damp the sending of repetitive notifications. If you configure the Soak Time parameter, you cannot also configure Count and Wait parameters. These fields are mutually exclusive. Operator (Required)—Select the operator to use to match the attribute. Note that not all operators are available for all attributes. Contains—String that you specify in the Value field is present in the attribute type. Equals—String that you specify in the Value field exactly matches the string in the attribute type. Note that for the Soak Time and Wait attributes, Equals is the only operator that is available. Like—String that you specify in the Value field is contained in the attribute type. Use an asterisk (*) as the wildcard character. For example, for a value of a*, the Like operator matches all strings that begin with "a", and for a value of *a*, it matches all strings that contain "a". Not Like—String that you specify in the Value field is not contained in the attribute type. Use an asterisk (*) as the wildcard character. For example, for a value of a*, the Not Like operator matches all strings that do not begin with "a", and for a value of *a*, it matches all strings that do not contain "a". Not Equals—String that you specify in the Value field exactly matches any string except the string in the attribute type. Value(Required)—Enter a value for the type of attribute that you selected in the Attributes field: Alarm Text—Enter a text string. Alarm Type—Select a VOS alarm type.  Count—Enter a number. Device Name—Select a device from the list of those being managed by the Director node. Severity—Select an alarm severity.  Soak Time—(For Releases 22.1.1 and later.) Enter a time, in seconds. Wait—Enter the time to wait, in seconds. Click the  icon to add a condition. Click the  icon to delete a condition. Click Continue.

3. Click Add.

Create VNF Manager

The Virtual Network Functions (VNF) manager IP is the IP address assigned to the Versa VNF manager, which is used to manage and monitor VNFs within Versa SD-WAN environment.

To create a VNF manager:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and then select Management Profiles.


2. Click VNF Manager, and enter the IP address/prefix of the SNMP server that you want to be able to poll the Versa Portal and receive its SNMP traps. Click the + Add icon to add an address.


3. Click Add.
4. Click the  icon to delete the VNF manager.

Configure LDAP Profiles

You configure an LDAP server profile to define how NGFW connects to and authenticates the Active Directory (AD) server, how it searches the Active Directory, and how it retrieves the group list and list of associated members. Before you begin the configuration process, ensure that you have the bind distinguished name (DN) authentication credentials and the bind password. You can get this information from the LDAP administrator.

For LDAP authentication to work, you must enable or disable SSL mode. If SSL mode is enabled, the LDAP session supports secure LDAP (LDAP over SSL) and start TLS (LDAP over TLS) modes. The LDAP server profile configuration accepts all the parameters needed to communicate with an external LDAP server​.

You associate the LDAP authentication profile created when you create an authentication profile and authentication rule. Before you create an authentication profile, you must create an LDAP authentication profile. For more information, see Configure Authentication Rules.

User and group authentication provides a mechanism for verifying the identities of users so that only genuine users have access to applications. For each organization, you can configure one user or group profile in an LDAP server profile. If you migrate a device from an earlier release to Titan Portal Release 10.0, all user and group parameters that are hard-corded in the earlier release are editable, and you can publish the changes.

You can add custom filters for LDAP users or groups with the users and groups available in an LDAP server. Only the users or groups that are added using the custom filter can connect to the Versa SASE client, multitenant gateway, and remote access VPN devices. Note that you must enable appliance proxy for the SASE gateway, multitenant gateway, or remote access VPN to use the custom filter. To enable appliance proxy, see Enable Appliance Proxy for a Tenant.

To configure an LDAP server for Active Directory authentication and to configure a user and group mapping profile:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Authenticator.



2. In the LDAP Server Profile page, enter information for the following fields.


   Field	Description
   LDAP Name (Required)	Enter a name for the LDAP server profile. NGFW uses this name to connect to the LDAP directory to retrieve group mapping information and to select the usernames and group names for the profile.
   LDAP Server (Required)	Click the icon. In the Server popup window, enter the following information for LDAP server, and then click Add.     IP Address (Required)—Enter the IP address of the LDAP server. Port (Required)—Enter the number of the listening port on the LDAP server. This is the port that communicates with the LDAP directory service. Routing Instance—Select the routing instance to use to reach the LDAP server. FQDN—Enter the full domain name of the LDAP server.
   SSL Mode Enabled (Required)	Click to enable or disable SSL mode: Click Yes to use SSL for the LDAP session. Click No to not use SSL for the LDAP session.
   SSL Mode (Required)	Select the SSL mode for the LDAP session: LDAPS—Use secure LDAP (LDAP over SSL). Start TLS—Use LDAP over TLS.
   CA Chain (Required)	Select the Certificate Authority (CA) to use for the secure LDAP connection. Custom—Click custom to upload a .crt file, and then click Browse file to upload your CA chain certificate. Default—Click default to use the default CA chain certificate.
   Bind-DN Name (Required)	Enter the bind distinguished name (DN) authentication credentials for binding to the LDAP tree.
   Domain Name (Required)	Enter the domain name in which the LDAP server resides.
   Bind-DN Password (Required)	Enter the bind password.
   Base-DN (Required)	Enter the base DN of the LDAP directory location. NGFW initiates a search for user and group information at this location.
   Bind Timeout (Required)	Enter the bind timeout period, in seconds. Default: 30 seconds
   Search Timeout	Enter the search timeout period, in seconds. Default: 30 seconds
   User/Group (Group of Fields)
   Name (Required)	Enter a name for the user and user group profile.
   Group Object Class (Required)	Enter the group object class provided by your administrator.
   Group Name (Required)	Enter the group name provided by your administrator.
   Group Member (Required)	Enter the group member provided by your administrator.
   User Object Class (Required)	Enter the user object class provided by your administrator.
   User Name (Required)	Enter the format of the username. An example is User Principal Name.
   Refresh Interval (Required)	Enter how often to refresh the profile, in seconds. Range: 60 through 86400 seconds Default: 60 seconds
   Custom Filter (Group of Fields)
   User	Enter the user details to filter from the LDAP profile user or group.
   Group	Enter the group details to filter.
   Region (Required)	Select a Titan region.

3. Click Save.

Configure SAML Profiles

Security Assertion Markup Language (SAML) authenticates users so that they can access multiple services and applications. SAML is useful when you want to access multiple services or applications when each service or application requires that you authenticate yourself. SAML is a standard for exchanging authentication between parties, and it is most commonly used for web browser–based single sign-on (SSO).

You can configure SAML SSO to log in using a single sign-on and then access multiple services and applications. Similarly, you can configure SAML single sign-out to end sessions for multiple services and applications and then log out from only one session. You can use SAML authentication for services and applications that are external or internal to your organization. A user can update their SAML profile and publish the updated configuration to all devices. You can attach a SAML profile to a secure access template for SASE or remote access server for authentication, and you can associate a SAML profile while creating an authentication rule. For more information, see Configure Authentication Rules.

To configure SAML, you configure a SAML profile, which contains information about the third-party SAML IDP and other protocol information.

To configure a SAML profile:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Authenticator.
2. In the Select Authentication Method field, select Enterprise SAML Profile.



3. In the Enterprise SAML Profile page, enter information for the following fields.


   Field	Description
   SAML Name (Required)	Enter a name for the SAML profile.
   Host (Required)	Enter the name of the host to which to apply the SAML profile.
   Prefix ID (Required)	Enter the name of the external IdP.
   Single Sign-on URL (Required)	Enter the URL of the IdP to use for single sign-on.
   Single Sign-out URL(Required)	Enter the URL to point to for single sign-out.
   SP Entity ID (Required)	Enter the entity ID of the service provider (that is, the Titan device).
   IdP Entity (Required)	Enter the entity ID that uniquely identifies the SAML identity provider.
   Upload SP Certificate	Select the certificate that the service provider uses to authenticate and send a message to NGFW. NGFW uses this authentication information and provides access to the applications and services.
   Upload IdP Certificate (Required)	Select the authentication certificate issued by the identity provider. The IdP and NGFW use this certificate to sign SAML messages.

4. Click Save.

To edit or delete a SAML profile from the profile list:

• Click the Device List icon to view the devices associated to the SAML profile.
• Click the Edit icon to update a SAML profile.
• Click the Delete icon to delete a SAML profile.

Configure RADIUS Profiles

RADIUS is a distributed client–server system that secures networks against unauthorized access. A RADIUS server provides an external database that authenticates users before allowing them to access a network, a device, or related services. You configure a RADIUS server and RADIUS profile attributes to authenticate a user. If you are using external RADIUS authentication, define the information that the authenticator uses to communicate with the RADIUS server.

You can associate a RADIUS profile while creating an authentication rule. For more information, see Configure Authentication Rules.

To configure RADIUS profile for user authentication:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Authenticator.
2. In the Select Authentication Method field, select Enterprise RADIUS Profile.



3. In the Enterprise RADIUS Profile page, enter information for the following fields.


   Field	Description
   Name (Required)	Enter a name for the RADIUS profile.

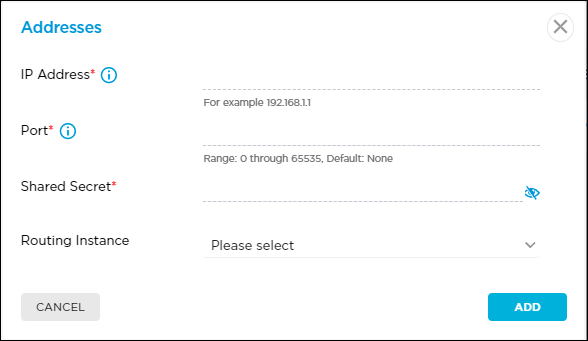

   Addresses (Required)	Click the icon. In the Addresses popup window, enter the following information for the RADIUS server, and then click Add.   IP Address (Required)—Enter the IP address of the RADIUS server. Port (Required)—Enter the number of the listening port on the RADIUS server. This is the port number to communicate with the RADIUS directory service. Range: 0 through 65535 Default: None Shared Secret (Required)—Enter a password that the Titan device uses to access the RADIUS server. Routing Instance—Select the routing instance to use to communicate with the RADIUS server. You can use the search option to find a RADIUS server from the list and do the following actions: Click the Edit Profile icon to update the RADIUS server details. Click the Delete icon to delete a RADIUS server.
   Attribute
   NAS Identifier	Enter a text string to identify the network access server (NAS) that originates the access request.
   NAS IP (Required)	Enter the IP address of the NAS that is requesting authentication.
   NAS Port (Required)	Enter the number of the physical port to use to connect to the NAS that is authenticating the user. Range: 0 through 65535 Default: None
   Region (Required)	Select a Titan region.

4. Click Save.

To view the devices associated to the RADIUS profile, edit, or delete a RADIUS profile from the profile list:

• Click the Device List icon to view the devices associated to the RADIUS profile.
• Click the Edit Profile icon to update the RADIUS profile.
• Click the Delete icon to delete a RADIUS profile.

Configure Kerberos Profiles

Kerberos provides strong authentication for users and groups, an authentication that is stronger than LDAP. Kerberos uses secret key cryptography, so it never transmits user credentials over the network. To configure Kerberos, you must also configure decryption full proxy and web proxy in transparent mode.

To use Kerberos, you upload the keytab file generated from Active Directory. You use the Kerberos keytab file to authenticate systems and services that use Kerberos without having to enter a password. Note that because the keytabs are derived from the Kerberos password, if you change the Kerberos password, you must re-create all keytabs and import the keytab files to the device again.​

You can associate a Kerberos profile with an authentication rule when you are creating the rule. For more information, see Configure Authentication Rules.

To define a Kerberos profile for authenticating a user and group:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Authenticator.
2. In the Select Authentication Method field, select Kerberos Profile.



3. In the Kerberos Profile page, enter information for the following fields.


   Field	Description
   Name (Required)	Enter a name for the Kerberos profile.
   Keytab File	Click the icon and select the keytab file (.keytab) that you uploaded.
   SPN (Required)	Enter the value for the service principal name.
   Virtual URL (Required)	Enter the Kerberos virtual URL. Note that the virtual URL must resolve through the appliance LAN IP address.
   Region (Required)	Select a Titan region.

4. Click Save.

To view the devices associated to the Kerberos profile, edit, or delete a Kerberos profile from the profile list:

• Click the Device List icon to view the devices associated to the Kerberos profile.
• Click the Edit Profile icon to update a Kerberos profile.
• Click the Delete icon to delete a Kerberos profile.

Configure WiFi RADIUS Profiles

You can associate a WiFi RADIUS profile with the security mode with an enterprise option to use to transmit data from the WiFi access point. For more information, see Configure WiFi Networks.

If you added a RADIUS server added in Releases 10.2 or earlier, this server is displayed in the WiFi RADIUS list and the RADIUS server is automatically assigned a name and associated with a device.

You can associate a WiFi RADIUS profile with an authentication rule when you create the rule. For more information, see Configure Authentication Rules.

To define a WiFi RADIUS profile for authenticating a user and group:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Authenticator.
2. In the Select Authentication Method field, select WiFi RADIUS Profile.



3. In the WiFi RADIUS Profile page, enter information for the following fields.


   Field	Description
   Name (Required)	Enter a name for the WiFi RADIUS profile.
   Description	Enter a text description for the RADIUS profile.
   IP Address (Required)	Enter the IP address of the RADIUS server to use for authentication.
   Port (Required)	Enter the number of the listening port on the RADIUS server. This is the port number used to communicate with the RADIUS directory service. Range: 0 through 65535 Default: ;None
   Shared Secret (Required)	Enter a password that the Titan device uses to access the RADIUS server.
   Source LAN (Required)	Select the LAN where the RADIUS server is attached to.

4. Click Save.

To view the devices associated to the WiFi RADIUS profile, edit, or delete a WiFi RADIUS profile from the profile list:

• Click the Device List icon to view the devices associated to the WiFi RADIUS profile.
• Click the View Profile icon to view or update a WiFi RADIUS profile.
• Click the Delete icon to delete a WiFi RADIUS profile.

Upload a Custom Captive Portal Page

If you do not want to use one of the default captive portal pages, you can upload a custom captive portal page. You must compress the files for the captive portal webpage into a .zip file. The main index file in the .zip file must be named index.htm, and it must contain the custom captive portal page HTML files, CSS files, and image files.

You can use the following variables in the index.htm file:

• $category—Display the URL category to which the URL belongs.
• $host—Display the IP address of the client machine.
• $message—Display a message to the user.
• $reputation—Display the reputation of the URL.
• $url—Display the URL that the user is attempting to access.
• $user—Display the name of the user.

To upload a custom captive portal page:

1. Click Org Settings in the left menu bar to open the organization settings dashboard, and select Custom Captive Portal.

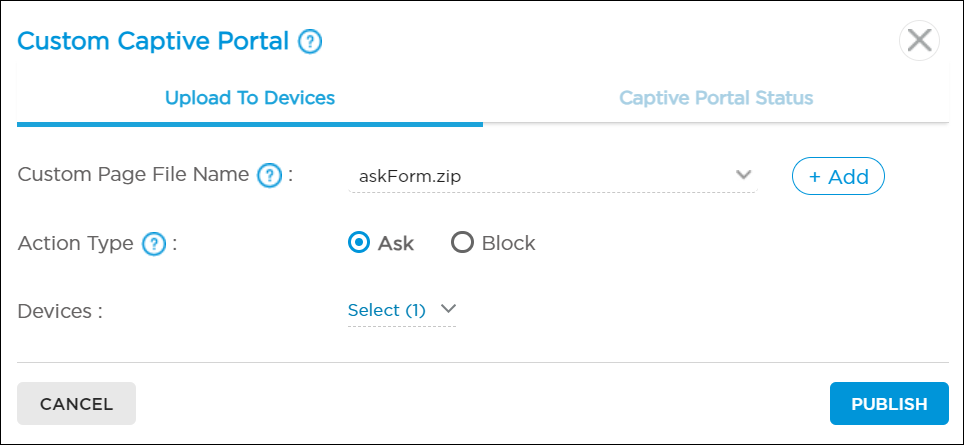

2. In the Custom Captive Portal popup window, select Upload to Devices tab and enter information for the following fields.




   Field	Description
   Custom Page Filename	Select the custom page file from the list of uploaded custom page .zip files. To add a new custom captive portal page file to the list, click icon. Click icon, select a custom page .zip file, and then click icon. Click Continue.
   Action Type	Select the action to take when a user attempts to access a URL: Ask—The browser presents an information page that allows user to either cancel the operation by clicking Cancel or Continue with the operation by clicking OK (for HTTP and HTTPS). Block—Block the URL and generate an entry in the URL-filtering log. No response page is displayed, and the user cannot continue with the website.
   Devices	Select the devices to upload the custom page and click Continue. Choose a custom page file before selecting a device.

3. Click Publish.
4. To view the custom captive portal status, select Captive Portal Status tab.


5. To delete a custom captive portal page from a device, select the device and click Delete.
