Configure SASE BGP Peer Policies

For supported software information, click here.

BGP peer policies consist of one or more terms for filtering BGP routes that are received from remote BGP peers or that are advertised to remote BGP peers. You can configure import policies to modify or reject routes coming from remote BGP peers, and you can configure export policies to apply policies to routes that are advertised to BGP peers. After you configure BGP peer policies, you use them when configuring site-to-site tunnels. For more information about site-to-site tunnels, see Configure SASE Site-to-Site Tunnels.

To configure BGP peer policies:

1. Go to Configure > Secure Services Edge > Settings.

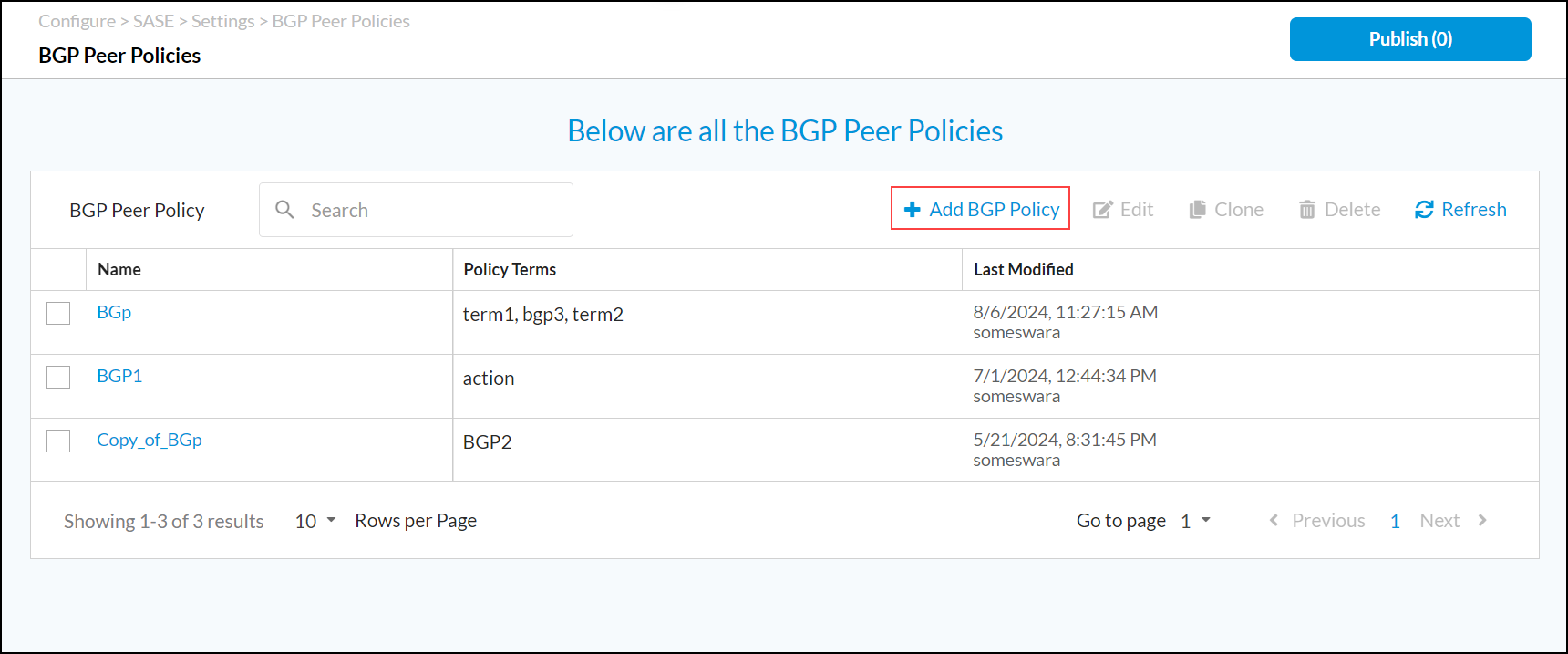

2. Click BGP Peer Policies. The screen displays all configured peer policies.



3. Click + Add BGP Policy to add a new peer policy. The Add BGP Peer Policy screen displays.

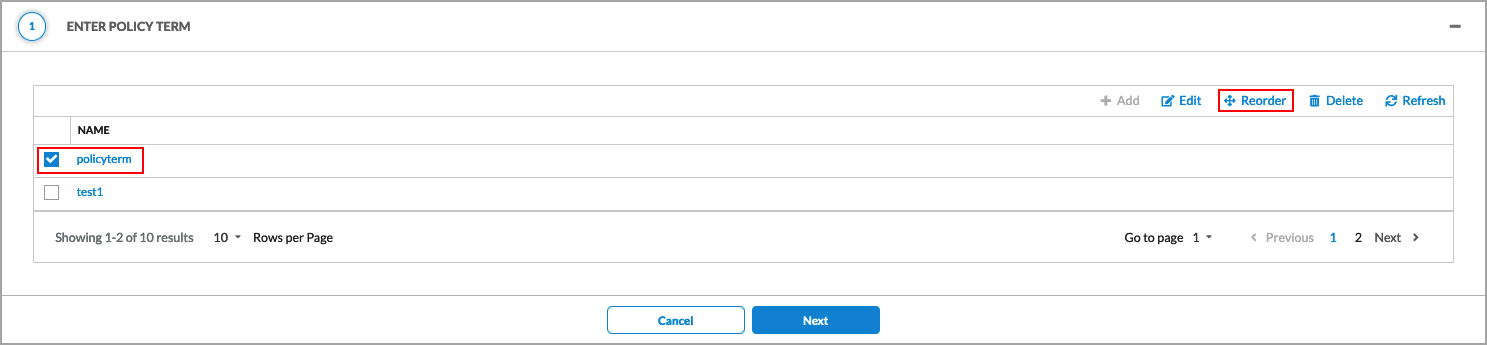

4. Click + Add under Enter Policy Term. The Add Policy Term screen displays.



5. Click Criteria to specify the match criteria. Enter information for the following fields.


   Field	Description
   Criteria (Group of Fields)
   Community	Enter the BGP community string to match. A BGP community is a group of destinations with a common property. This path attribute in BGP update messages identifies community members and performs actions at a group level instead of at an individual level. BGP communities help identify and segregate BGP routes, enabling smooth traffic flow.
   Extended Community	Enter the extended BGP community string to match. In an extended community, you can group a larger number of destinations than in a community. Range: 0000000000000000 to FFFFFFFFFFFFFFFF Default: None
   AS Path	Enter the AS path number to match.
   Metric	(For Releases 12.2.1 and later.) Enter the metric value to assign to the route. Range: 0 through 4294967295
   IPv4 NLRI (Group of Fields)
   IPv4 Prefixes	Enter information about the IPv4 prefix: IPv4 Subnet—Enter a valid IPv4 prefix, for example, 10.1.1.0/24. Minimum Length—Enter the minimum prefix length to match. The minimum prefix length must be less than the maximum prefix length. Range: 24 through 32 Default: None Maximum Length—Enter the maximum prefix length to match. The minimum prefix length must be less than the maximum prefix length. Range: 0 through 32 Default: None Action—Select the Permit or Deny action from the drop-down list. Click the Plus icon to add additional IPv4 prefixes. Click the Minus icon to remove IPv4 prefixes.
   IPv6 NLRI (Group of Fields)
   IPv6 Prefixes	Enter information about the IPv6 prefix: IPv6 Subnet—Enter the IPv6 prefix, which must be 2001::/24. Minimum Length—Enter the minimum prefix length to match. The minimum prefix length must be less than the maximum prefix length. Range: 0 through 128 Default: None Maximum Length—Enter the maximum prefix length to match. The minimum prefix length must be less than the maximum prefix length. Range: 0 through 128 Default: None Action—Select the Permit or Deny action from the drop-down list. Click the Plus icon to add additional IPv6 prefixes. Click the Minus icon to remove IPv6 prefixes.

6. Click Action, and then enter information for the following fields.




   Field	Description
   Action (Group of Fields)
   Action	Select the action to take on the routes: Accept Reject
   Local Preference	Enter the local preference value to use to choose the outbound external BGP path. Range: 0 through 2147483647
   Next Term	(For Releases 12.2.1 and later.) Select the name of the next term to evaluate. You can use this field to create a sequence of terms, and then you use the Next-Term Action field to configure the sequence as an AND or OR series.
   Next Term Action	(For Releases 12.2.1 and later.) When you use the Next Term field, select whether to create an AND series and an OR series: AND Series—Add this term to an AND series. OR Series—Add this term to an OR series.
   Enabled ECMP for BGP Routes in RIB	Select to perform equal-cost multipath (ECMP) for BGP paths in the route table. BGP performs ECMP load balancing when two or more routes have the same administrative distance.
   Route Preference	Enter a route preference value for routes learned from EBGP. Range: 0 through 255 Default: None
   Metric Action	Select the metric action to take: Set Value IGP (interior gateway protocol) Add Subtract
   Metric	Enter a metric value. If you select the IGP metric action, do not configure a metric value. Range: 0 through 4294967295.
   Community (Group of Fields)
   Community Action	Select how to match the community list for a route: Community field is ignored. Remove all communities from the route. Replace all communities with the single community specified by set-community. Remove all communities that match community value. Append the value of community value into the communities list.
   Community Value	Enter the community value. The value should be a set of communities separated by a space in the format 2-byte decimal:2-byte decimal. Note that not all extended community actions require a community value. Range: 0 through 65535
   Extended Community Action	Select how to match the community list for a route: Community field is ignored. Remove all communities from the route. Replace all communities with the single community specified by set-community. Remove all communities that match community value. Append the value of community value into the communities list.
   Extended Community Value	Enter the BGP extended community value. The extended community value should be 16 characters. Range: 0000000000000000 to FFFFFFFFFFFFFFFF Default: None
   AS Path (Group of Fields)
   AS Path Action	Select a regular expression to match the AS path for the route: No AS path action. Prepend the local AS path the number of times specified by local AS prepend count. Remove all AS numbers matched by match as-path. Remove all AS numbers matched by match as-path and prepend the local AS the number of times specified by the local AS prepend count.
   AS Path Prepend	Select how to prepend the AS number to an AS path. Range: 1 through 4294967295
   Local AS Path Count	Enter a value from 1 through 255.

7. Click General Information, and enter information for the following fields.




   Field	Description
   Term Name (Required)	Enter a name for the policy term.
   Description	Enter a text description for the policy term.



8. Click Save to save the policy term.
9. Click the Enter Name, Description & Tags box, and then enter information for the following fields.




   Field	Description
   Name (Required)	Enter a name for the BGP peer policy.
   Description	Enter a text description for the BGP peer policy.
   Tags	Enter one or more tags. A tag is an alphanumeric descriptor, with no white spaces or special characters, that you can use to search the objects.

10. Click Save to save the BGP peer policy.
