Configure Certificate Servers
For supported software information, click here.
To configure a Versa Operating SystemTM (VOSTM) device to use certificates, you configure a server that hosts the certificates. When the branch or Controller device requires a certificate, it sends a certificate request to the server.
To configure a certificate server:
- In Director view:
- Select the Configuration tab in the top menu bar.
- Select Devices > Devices in the horizontal menu bar.
- Select an organization in the left menu bar.
- Select a device in the main pane. The view changes to Appliance view.
- Select the Configuration tab in the top menu bar.
- Select Objects & Connectors > Connectors > Certificate Manager in the left menu bar.

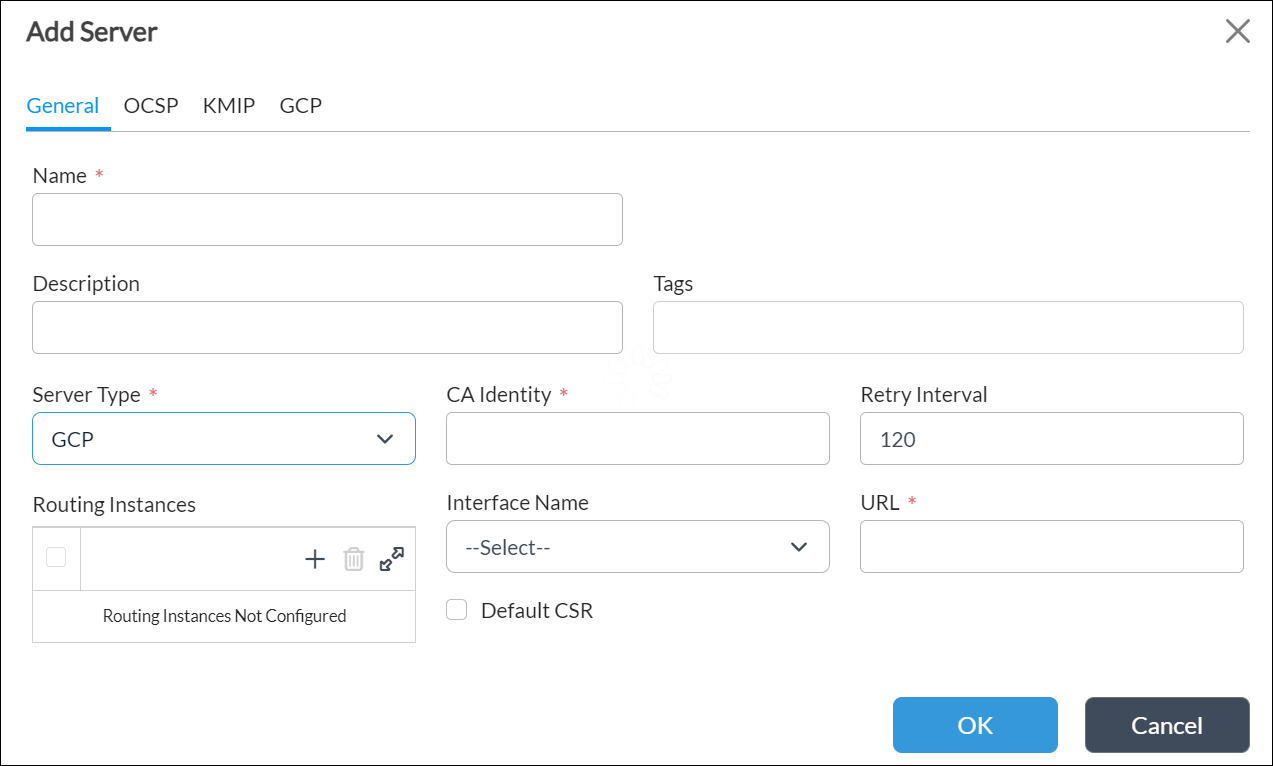

- Select the Servers tab in the horizontal menu bar, and then click + Add. In the Add Server popup window, select the General tab, and then enter information for the following fields. For Releases 21.2.3 and earlier, the General and OCSP fields are displayed on a single window.
Field Description Name (Required) Enter a name for the certificate server. Description Enter a text description for the certificate server. Tags Enter tags to identify the certificate server. A tag is an alphanumeric text descriptor with no spaces or special characters that you use to search for multiple certificate servers. Server Type (Required) Select the type of certificate authority (CA) server:
- ACME—(For Releases 22.1.3 and later.) Automatic Certificate Management Environment
- CMP—Select if the CA server is using the Certificate Management Protocol for enrollment.
- GCP—(For Releases 22.1.3 and later.) Select if the CA server uses Google Cloud Platform for enrollment.
- SCEP—Select if the CA server is using the Simple Certificate Enrollment Protocol.
CA Identity (Required) Enter the name of the CA server:
- For the server type CMP, enter CN=CA-name
- (For Releases 22.1.3 and later.) For the server type GCP, enter GCP-CA
- For the server type SCEP, enter CA-name. The following screenshot shows an example entry for a Microsoft CA server in which the CA identity is WINSUBCA-CA.
Retry Interval Enter the interval, in seconds, at which a branch or a Controller device retries to retrieve the certificate. Routing Instance Select the routing instance to use to reach the certificate server. If you select the eth0 (management) interface, you do not need to select a routing instance. Interface Name Select the interface to use to communicate with the certificate server. Default CSR (For Releases 22.1.3 and later.) Click to have the server generate a certificate signing request (CSR) that contains the device ID as the common name. If you select this option, you do not need to configure additional certificate-signing request options. URL (Required) Enter the URL of the CA server enrollment service. This is the URL to which CA certificate and enrollment requests are sent. The following figure shows the URL for an SCEP server type with the Microsoft Network Device Enrollment Service (NDES; SCEP and NDES are available for Releases 20.2.1 and later).
- Select the OCSP tab, and then enter information for the following fields.
Field Description Responder URL
Enter the URL of the OCSP responder. The OCSP responder reports the status of a certificate. Sign Request
Click to have the OCSP responder verify the signature before responding to certificate requests. Hash Algorithm
Select the hash algorithm to use when preparing the OCSP request. Verify Signature
Click to have the VOS device verify the signature of OCSP responder. Response Cache Period
Enter how long, in hours, to cache OCSP responses.
Range: 0 through 168 hours
Default: 0 (no cache is created)
Monitor Interval
Enter the time interval at which to verify the validity of the certificate status.
Range: 0 through 1440 minutes
Default: 0 (monitoring is disabled)
On Response Unknown
(For Releases 22.1.3 and later.) Select the action to take on the IPsec tunnel when an unknown response is received from the OCSP responder:
- Tunnel Down—Bring the IPsec tunnel down.
- Tunnel Up—Bring the IPsec tunnel up.
- (For Releases 22.1.1 and later.) Select the KMIP tab, and then enter information for the following fields. You configure Key Management Interoperability Protocol (KMIP) information for the certificate server to use to interface with a key management server (KMS) using KMIP to perform key management and cryptographic operations such as generation of a symmetric key and an asymmetric key-pair. For more information, see Configure a KMIP Client.
Field Description Username
Enter the username of the KMS administrator to use to authenticate KMIP requests from the VOS KMIP client. Password Enter the KMS administrator password to useto authenticate KMIP request from the VOS KMIP client. Certificate Domain Select the KMS client certificate location:
- System
- Tenant
Certificate Name Select the certificate to use to establish HTTPS or TLS connection from the VOS KMIP client to the KMS. CA Chain Select the CA chain name to use to establish HTTPS or TLS connection from the VOS KMIP client to the KMS. - (For Releases 22.1.3 and later.) Select the GCP tab, and then enter information for the following fields.
Field Description Authentication URL Enter the URL for the GCP Open Authorization (OAuth) 2.0 server's web service that is used for authenticating the VOS client before enrolling. Use the token_uri value from the JSON file downloaded during service account creation. Service URL Enter the URL https://privateca.googleapis.com/v1.
Service Account Email ID Enter the client email ID that is associated with the service account. Service Key ID Enter the private key ID that is associated with the service account. Service Type Select CA. Private Key Domain Select Tenant. Private Key Name Enter the name of the GCP service account private key filename. Project Name Enter the project_id value that is associated with the service account. Location Enter the location of the CA pool. CA Pool Name Enter the name of the CA pool. - Click OK.
- Select the Requests tab in the horizontal menu bar.

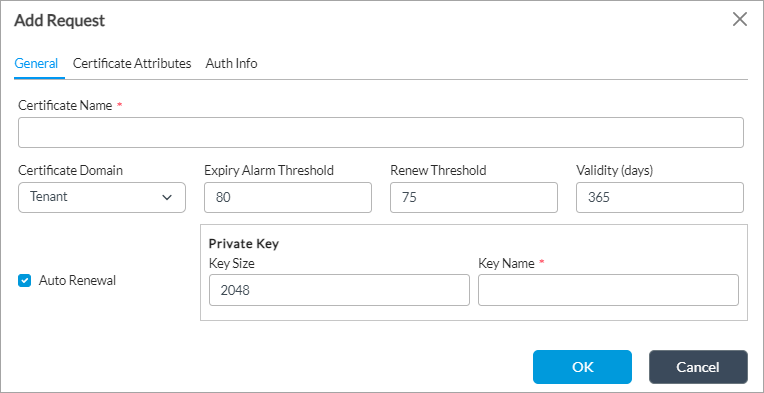

- Click + Add to add a request. In the Add Request popup window, select the General tab, and then enter information for the following fields. In Releases 21.2.3 and earlier, the General, Certificate Attributes, Authorization Information fields are displayed in a single window.
Field Description Certificate Name (Required) Enter a name for the branch certificate. Certificate Domain Select the domain to which the certificate applies. Expiry Alarm Threshold (For Releases 22.1.3 and later.) Enter the certificate expiration alarm threshold value, which is a percentage of the certificate validity time.
Range: 50 through 99 percent
Default: 80 percent
Renew Threshold (For Releases 22.1.3 and later.) Enter the certificate renewal threshold value, which is a percentage of the certificate validity time.
Range: 50 through 99 percent
Default: 75 percent
Validity Enter the number of days for which the certificate is valid.
Default: 365 days
Autorenewal Click to renew the request automatically. Private Key (Group of Fields) - Key Size
Enter the size of the key to generate. The standard size is 1024 MB.
Default: 2048 bytes
- Key Name (Required)
Enter the name of the key to generate. - Select the Certificate Attributes tab, and then enter information for the following fields.
Field Description Server (Required)
Select the name of the certificate server. Subject Alternate Name
(For Releases 22.1.3 and later.) Enter the DNS hostname. You can specify it as a domain name, a wildcard, or an IP address. Common Name (Required)
Enter the name of the certificate server. This name is also an identity, which you must also configure in the CA server. Both the names should match. Only then does the CA server issue the certificate. Email ID
Enter the email address of the user who downloads the certificate. This email address must be registered in the CA server. Country Name
Enter the country in which the VOS device is deployed. State or Province
Enter the state or province in which the VOS device is deployed. Locality
Enter the location where the VOS device is deployed. Organization
Enter the name of the organization associated with the certificate. Organizational Unit
Enter the name of the organizational unit associated with the certificate. Onboard Notification (For Releases 22.1.3 and later.) Click to send a notification when the certificate is issued and loaded onto the VOS device. - Select the Authentication Information tab, and then enter information for the following fields.
Field Description Mode Select the type of authentication to use - PSK
Click to use a preshared key. - Certificate
Click to use a certificate. The following fields then display:
User ID If you select PSK authentication, enter the user identifier. Shared Key
If you select PSK authentication, enter the password that to use in enrollment requests. The CA server’s enrollment service uses this password to authenticate client enrollment requests. For example, if you use Microsoft NDES (available for Releases 20.2.1 and later), the password can be retrieved as shown in the following sample screenshot:
Authentication Certificate Name If you select certification authentication, select the certificate. Authentication CA Chain If you select certification authentication, select the CA chain. Provider Organization If you select certification authentication, select the provider organization to which the certificate applies.
Key Name If you select certification authentication, select the name of the key. Key Passphrase If you select certification authentication and a key name, enter the password to use with the key. Certificate Domain If you select certification authentication, select the domain to which the certificate applies. - Click OK. The main pane displays the certificate request.
