Configure SASE Secure Client Access Profiles in Release 12.1.1

Configure Secure Client Access Profiles

To configure SASE secure client access application monitors, browser access, DNS resolvers, and routes:

1. Go to Configure > Security Service Edge > Secure Client Access > Profiles.



   If you have not configured a secure access client profile, the Welcome to the Secure Access Profile page displays. On this page, you can choose to configure one of the following types of profiles:

   • Client-based profile
   • Clientless access profile

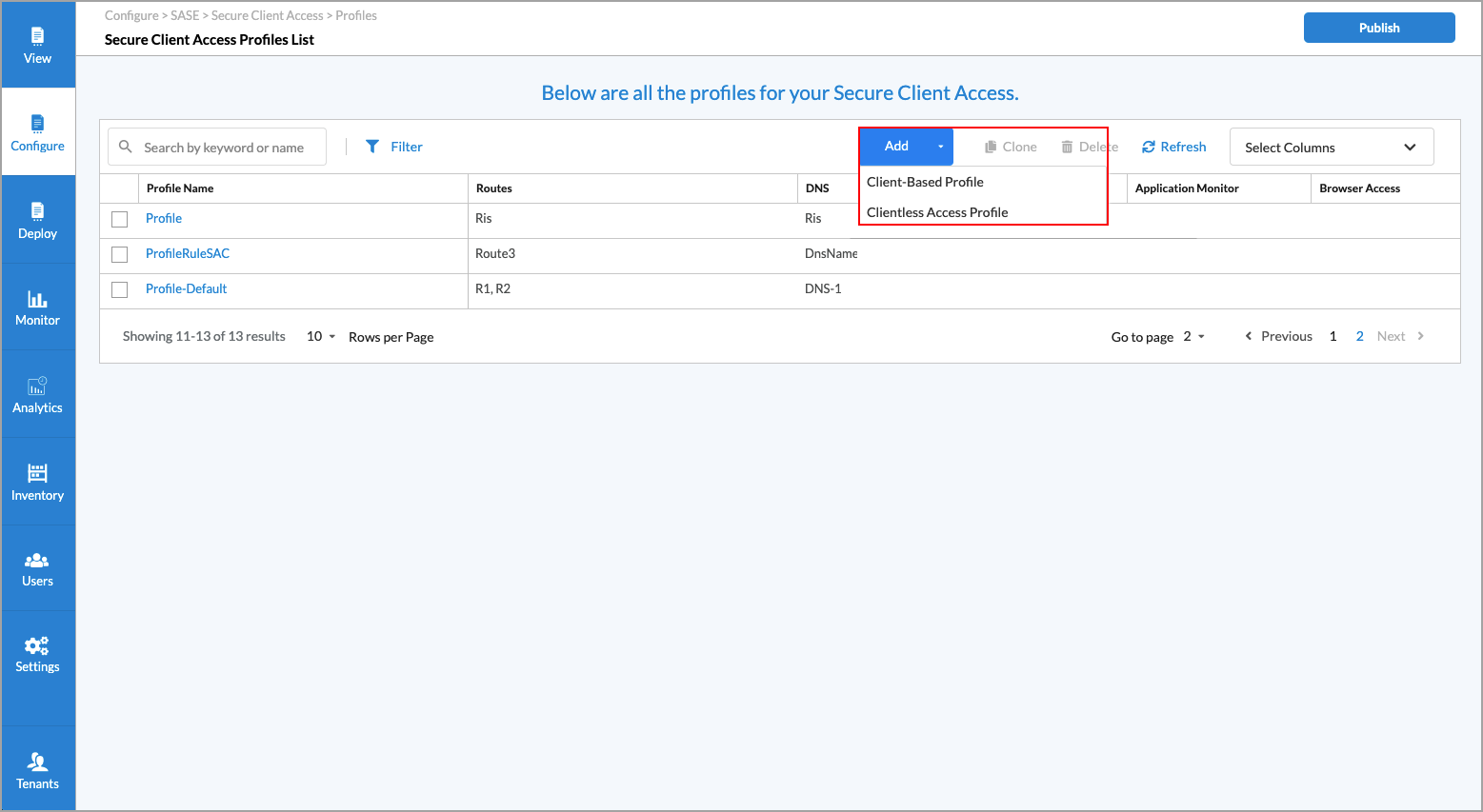

     If you have configured one or more secure access client profiles, the Secure Client Access Profile List screen displays the profiles that are already configured.


2. In the horizontal menu bar, you can select one of the following operations.


   Operation	Description
   Add	Create a new secure client access profile. This button is active when no existing profile is selected.
   Clone	Clone the selected secure client access profile. When you click Clone, the configuration wizard for the profile displays. You can edit the configuration. In the Review & Deploy screen, rename the default name of the cloned profile, if needed, and then click Save.
   Delete	Delete the selected access control policy. A popup window similar to the following displays:   Click Yes to delete the profile, or click No to retain the profile.
   Refresh	Refresh the list of existing policies.
   Select Columns	To select the columns that you want to display, click the down arrow. To return to the default column selection, click Reset.

3. To edit an existing profile, click the profile name, edit the entries as needed, and then click Save.
4. To configure a new profile, click the icon, then select a type of profile to create, and then click Next.



   • Client-Based Profile—You are then prompted to configure routes, DNS resolvers and applications for monitoring. Then you are prompted to review and deploy the profile.


   • Clientless Access Profile—For browser access, you are prompted to select custom and predefined applications for clientless VPN access. Then you are prompted to review and deploy the profile.

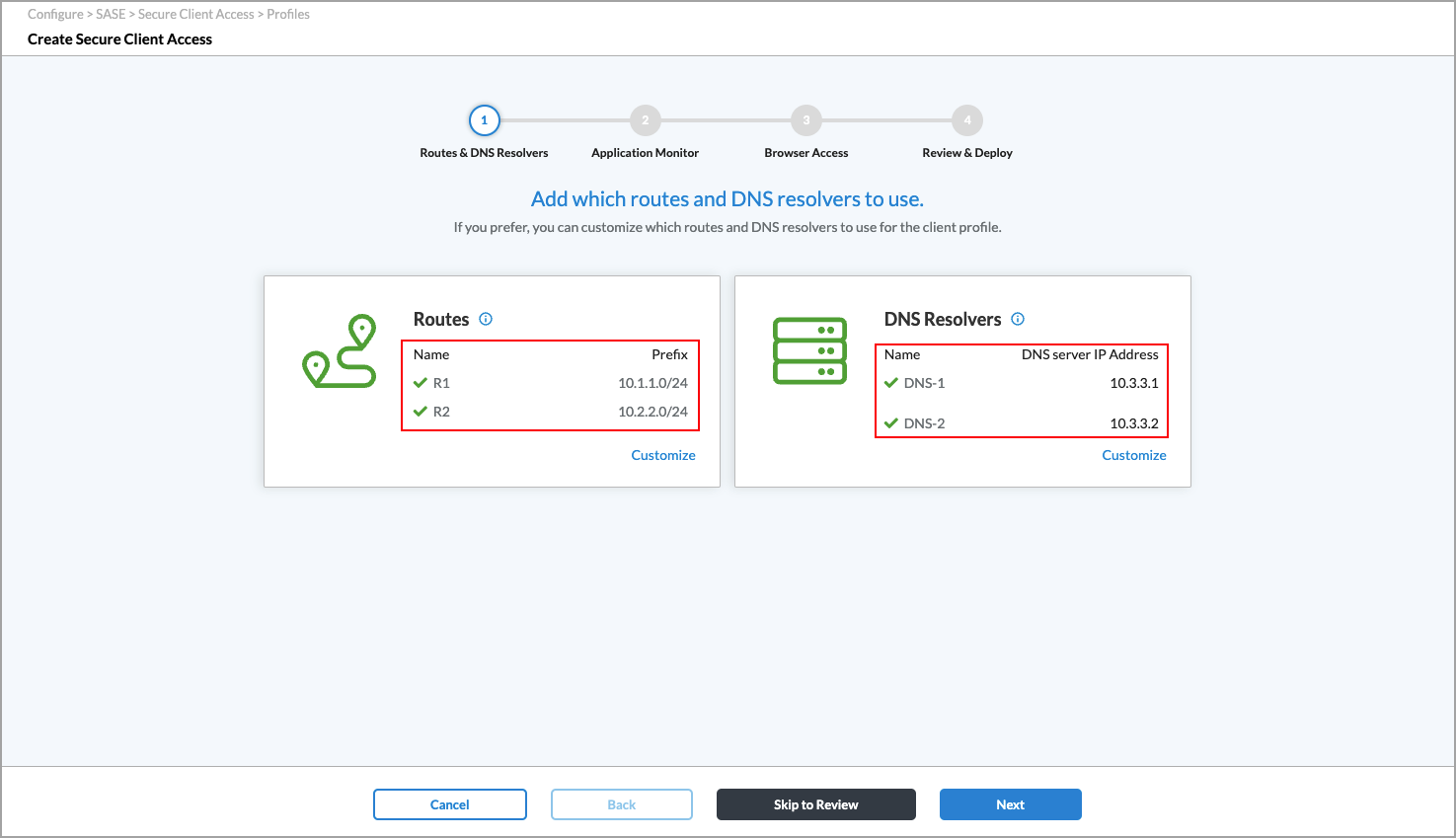

5. In Step 1, Routes and DNS Resolvers, click Customize in the Routes pane to add routes to the profile. Routes are prefixes that can be reached over the remote access VPN. The Routes pane displays the routes that are already configured.

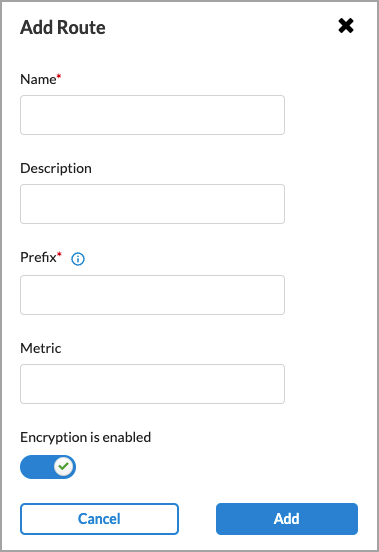

6. Click + Add to add a new route. In the Add Route popup window, enter information for the following fields.




   Field	Description
   Name Required)	Enter a name for the route.
   Description	Enter a text description for new route.
   Prefix (Required)	Enter a prefix for the route. By default, if you are using Versa Secure Internet Access (VSIA), the 0.0.0.0/0 subnet is advertised to the client. If you are using Versa Secure Private Access (VSPA), the prefix must be in the private access subnet range as defined in RFC 1918 (10.0.0.0/8, 172.16.0.0/12, or 192.168.0.0/16 ).
   Metric	Enter a value for the route metric. Range: 0 through 4294967295 Default: None
   Encryption	Select to encrypt the route and to route the traffic for applications and domains to an encrypted tunnel. By default, encryption is enabled.   To disable encryption, click the slider.   If you disable encryption, traffic is routed on an encrypted or non-encrypted (clear-text) route, depending on the configuration, for applications and domains. If the route is not encrypted, the Versa secure client access creates two tunnels, encrypted and clear text, and then routes traffic. In this case, you might consider securing the application using a different method, such as SSL/TLS.

7. Click Add. The Routes screen displays the new route.
8. Click Back. The Routes and DNS resolvers screen displays.
9. To add DNS resolvers to the profile, click Customize in the DNS Resolvers pane. The DNS Resolvers screen displays the DNS resolvers that are already configured.

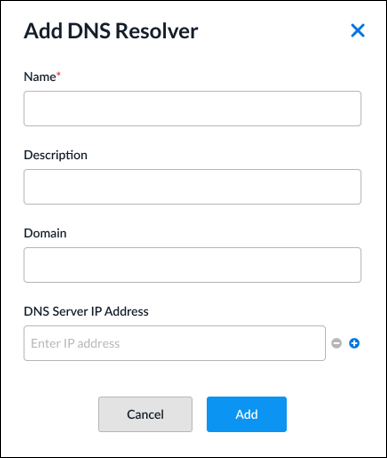

10. Click + Add to add a new DNS resolver. In the Add DNS Resolver popup window, enter information for the following fields.




    Field	Description
    Name	Enter a name for the DNS resolver.
    Description	Enter a text description for the DNS resolver.
    Domain	Enter a valid domain name for the DNS resolver to send to the client. The client uses the DNS resolver to perform DNS lookups for all traffic.
    DNS Server IP Address	Enter a valid IP address for the DNS server. To enter additional addresses, click the Plus icon.

11. Click Add to add the new DNS resolver to the secure client access profile. The DNS Resolvers screen displays the new DNS resolver.
12. Click Back. The Routes and DNS resolvers screen displays the routes and DNS resolvers that you added.

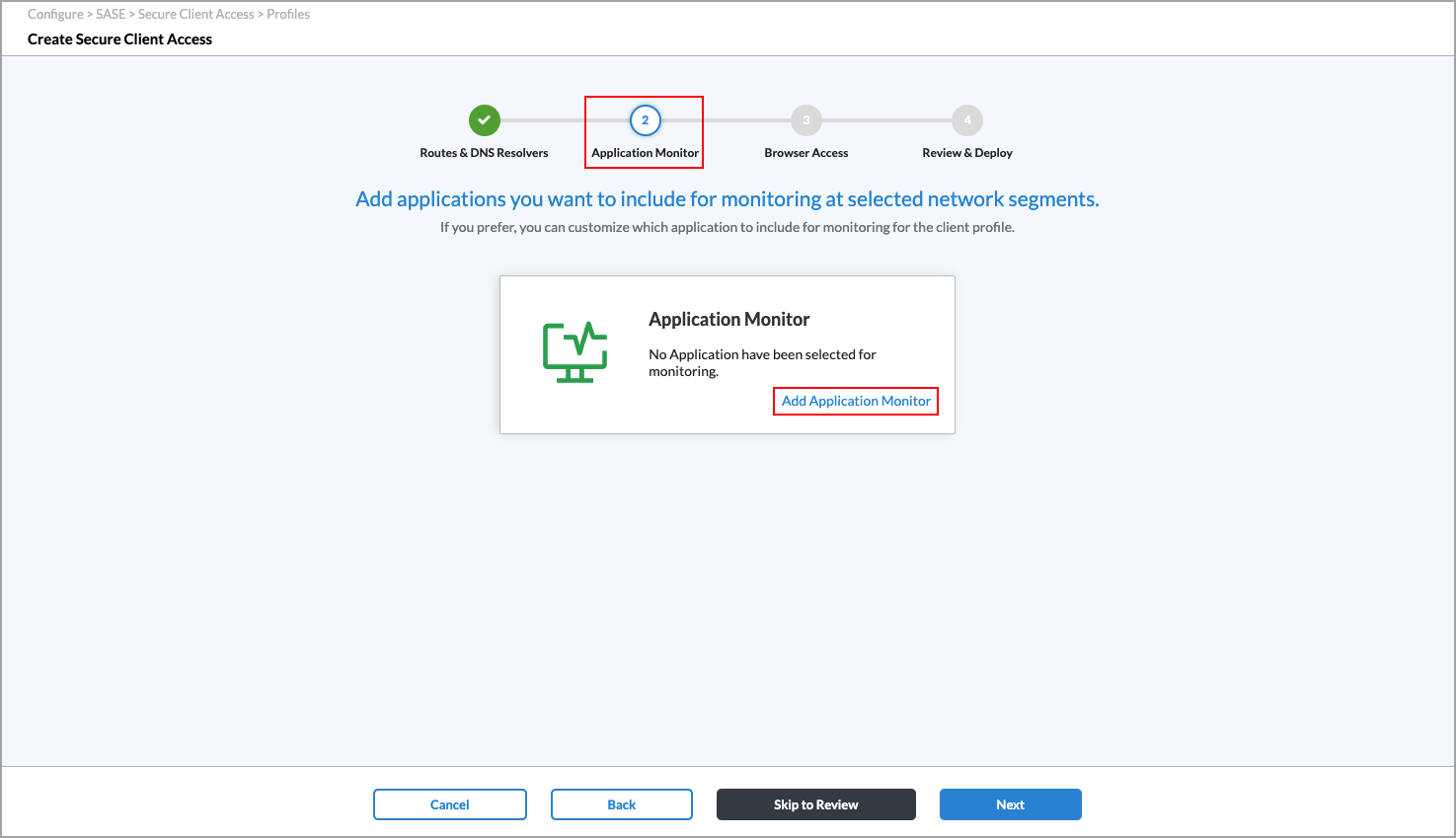

13. Click Next to continue to Step 2, Application Monitor. To configure DEM, click Customize in the Application Monitor pane.



14. In the Application Monitor screen, enter information for the following fields. These parameters are downloaded to the SASE client when a user registers the client with the SASE client portal.




    Field	Description
    Network Segments (Group of Fields)
    Device Monitoring	Click to monitor the health of devices, including memory, CPU, disk utilization, and battery life.
    Internet Monitoring	Click to monitor internet performance, including delay, hops, hop-by-hop latency, jitter, and packet loss.
    Local Network Monitoring	Click to monitor the performance of the local network, including latency, jitter, packet loss, WiFi SSID, and signal strength.
    Interval	Enter how often to monitor an application, in seconds.
    Application Monitoring (Group of Fields)
    Custom Applications	Select one or more user-defined applications.
    Predefined Application	Select one or more predefined applications.

15. Click Back. The Application Monitor screen displays the applications that you added.



16. Click Next to continue to Step 3, Browser Access. To select custom and predefined applications for clientless VPN access, click Customize in the Browser Access pane.



17. In the Browser Access screen, select custom applications or predefined applications, or both.



18. Click Back. The Browser Access screen displays with custom and predefined applications that you added.



19. Click Next. In the Review & Submit screen, enter information for the following fields.




    Field	Description
    Name (Required)	Enter a name for the profile.
    Description	Enter a text description for the profile.
    Tags	Enter one or more tags. A tag is an alphanumeric text descriptor with no spaces or special characters. You can specify multiple tags added for the same object. The tags are used for searching the objects.

20. Review the remaining information. Click the Edit icon to make changes to any of the sections.
21. Click Submit.

Supported Software Information

Releases 11.1.1 and later support all content described in this article, except:

• Release 12.1.1 allows you to clone Private Application Protection Profiles; supports Digital Experience Monitoring (DEM).
