Manage SD-WAN Policies and Profiles

Edit Policies and Profiles

This section describes how to edit SD-WAN policies and profiles that are reusable. All profiles are reusable and all policies are reusable except for policies that are marked as non-reusable. For more information about non-reusable policies, see Manage Non-Reusable Policies, below.

To edit reusable policies and profiles:

1. Navigate to the object table for the object type. For example, to edit a CGNAT policy, go to Configuration > SD-WAN >
   Network Services > CGNAT Policies.
2. For the object you want to edit, check the number of versions in the Version column of the table:

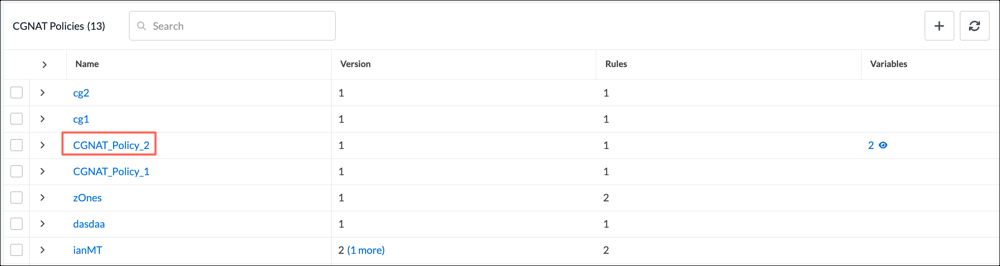

   • If there is only one version, click the object name in the Name column. The Edit workflow displays. Continue to Step 3.

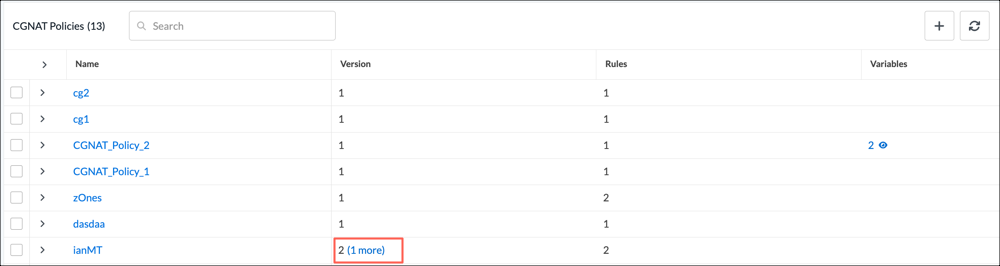

   • If the object has more than one version:
     1. Click the link in the Version column of the object table.

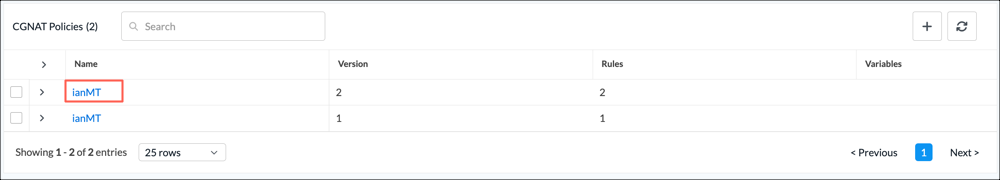

        A table listing the versions of the object displays.


     2. Click the object name in the Name column for the version that you want to edit. The Edit workflow displays.
     3. Continue to Step 3.
3. In the Edit workflow, select a workflow step in the top menu bar to modify the configuration. For example, in the screen below, select the Rules workflow step to modify the configured rules. Note that different object types might have different workflow steps.


4. After modifying the configuration values, select the workflow step for Review and Submit.
5. To save your changes:
   1. Click Next. This saves your changes.

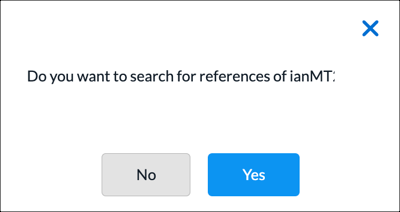

   2. In the popup window, select one of the following:
      • No—Skip searching for references.
      • Yes—Search for higher-level objects that reference the object.


   3. If you select Yes, search results for references display. If any references are found, the Propagate window displays.



   4. Select the main templates to which to propagate the object, and then click Submit. The propagation status displays on the screen.
      ​​​​​​

Manage Reusable Policies and Profiles

This section describes how to perform actions on the following types of SD-WAN configuration objects:

• Profiles
• Reusable policies

You can perform the following actions on these objects, except as noted:

• Clone
• Delete
• View references
• Propagate
• Copy to subtenant
• Compare versions
• View the audit log
• Enable and disable auto delete

To perform actions on configuration objects:

1. Navigate to the object table corresponding to the object's type.
2. Click the box to the left of the object name name. This activates the action menu bar in the upper-right portion of the screen.

   The example below shows an object table with a object selected and the action menu bar activated.



3. Select one of the following actions.


   Action	Description
   Clone	Click to make a copy of the selected object. The following popup window displays.     By default, Concerto names the copy by appending "Copy_of_" to the existing object name. Optionally, you can click the name and enter a different name for copy. Click Submit to save the copy of the object.
   Delete	Click to delete the selected object.
   Refresh	Click to refresh the table.

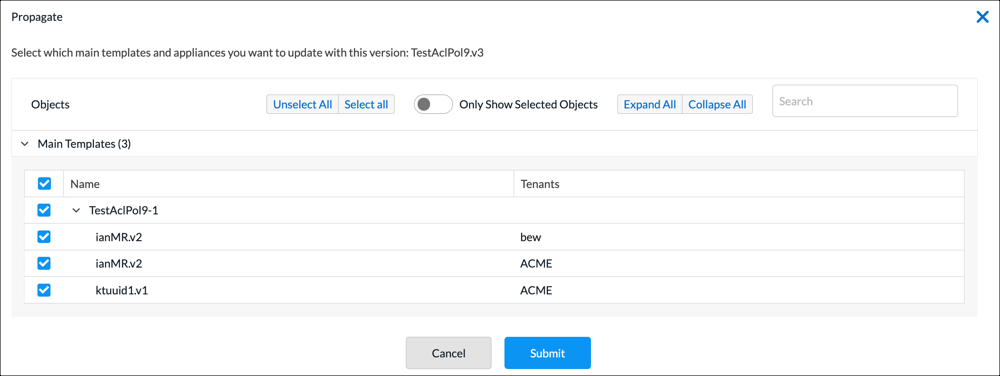

   Propagate	Manually propagate the object to one or more referencing objects. Propagation associates the selected version of an object with one or more referencing objects This overwrites any existing association between another version of the object and the referencing object.   The following popup window displays.   Select the referencing objects to which you want to propagate the object, and then click Submit.
   View References	Click to display the higher-level objects that reference the object.

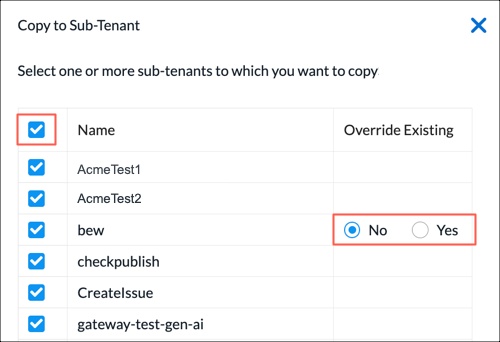

   Copy to Subtenant	Click to copy the object to one or more subtenants. The following popup window displays.   To copy the object: Click the box to the left of one or more subtenant names. To select all subtenants, click the box to the left of the Name column. If a subtenant has an existing object with the same name and version number, the Override Existing column displays Yes and No radio buttons. In this case, click Yes to overwrite the existing object, or click No to block copying the object in the next step.  Click Submit to copy the object to the selected tenants.
   Compare	Compare versions of the object.

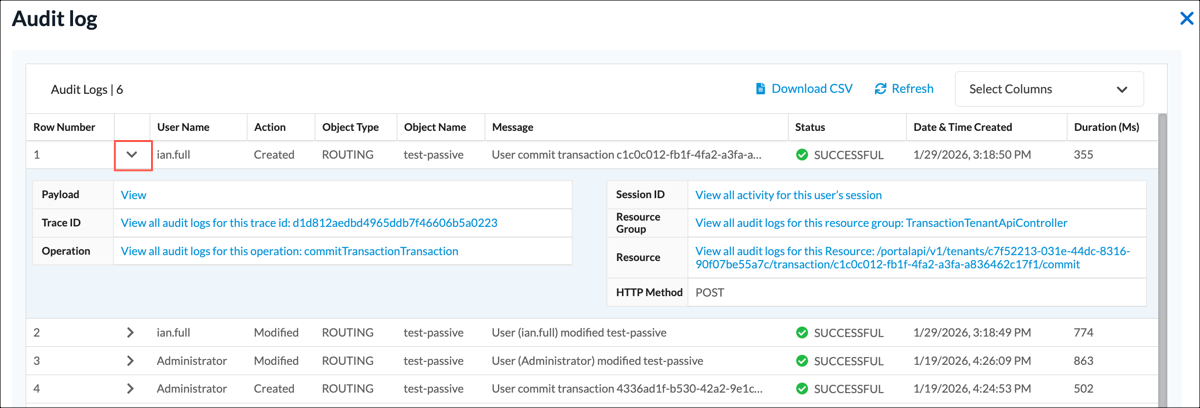

   View Audit Log	Display the audit log for the selected object. An audit log is a record of actions taken by users on the object.   Click the arrow in the second column to display details for an entry.
   Enable/Disable Auto Delete	Select to enable or disable the autodelete function for the selected object. See Auto Delete in Versa Concerto for SD-WAN.

Manage Non-Reusable Policies

Configuration objects can typically be reused, but you can configure an SD-WAN policy so that it cannot be reused. A non-reusable policy can only be referenced by one main template.

To create a non-reusable policy, you do the following:

• Add the policy through a main template workflow by selecting Add New Policy.
• In the Add Policy workflow, select the Not Reusable option from the Review and Submit screen. When you submit the policy, it is associated exclusively with the current main template.

You can view non-reusable policies only through the workflow for their associated main template.

You can perform the following actions on a non-reusable SD-WAN policy:

• Edit—Edit the policy. For non-reusable SD-WAN policies, the version number is always version 1.
• Delete—Delete the policy.
• Make Reusable—Designate the policy as reusable so that you can associate it with other main templates.

To view, edit, and perform other actions on a non-reusable policy:

1. Select Configure > Secure SD-WAN > Main Templates. A table of currently configured main templates displays.



2. To enter edit mode for a template:
   • If the template has only one version, click the template name in the Name column of the Main Templates table. The Edit Main Template window displays. Continue to Step 3.



   • If the template has multiple versions:
     1. Click the link in the Version field of the Main Templates table.



        A table listing the versions of the template displays.


     2.  Click the template name in the Name column. The Edit Main Template window displays. Continue to Step 3.
3. In the Edit Main Template workflow, select the step for the policy type as listed in the table below.



   Policy types are located in the following workflow steps.


   Workflow Step	Policy Types
   Network Interfaces	WAN Interface LAN Interface Site-to-Site Tunnel Interface Loopback Interface Paired Virtual Tunnel Cross-Connect Interface
   Topology and Routing Protocols	LAN WAN
   Network Services	CGNAT DNS Proxy
   QoS Traffic Steering & Traffic Monitoring	Traffic Steering Application QoS Stateless QoS Traffic Monitoring
   Authentication	User and Device Authentication
   Security	Access Control TLS Decryption DoS Protection Security Settings
   Servers & Settings	ALG  System Settings Syslog NTP DNS TACACS+  RADIUS SNMP Server VOS User Policies

4. For all policy types except User and Device Authentication, select the tab corresponding to the policy type to display the policy table. For User and Device Authentication policies, the policy table is displayed when you select the Authentication step in the workflow.

   For example, to display the Access Control Policies table, select the Security workflow step, and then click the Access Control tab. The example below displays the non-reusable policy named Non_reusable_AC_policy.




   Field	Description
   Name	Name of the policy.
   Version	For non-reusable policies, this field always displays 1|Not Reusable. This indicates that this is version number 1 of the template and the template is not reusable.
   Rules	Number of rules in the policy.
   Variables	Number of variables in the policy. To view a list of variable names and their assigned values, click the Eye icon.

5. To edit the policy, click the policy name. The Edit Policies workflow displays.

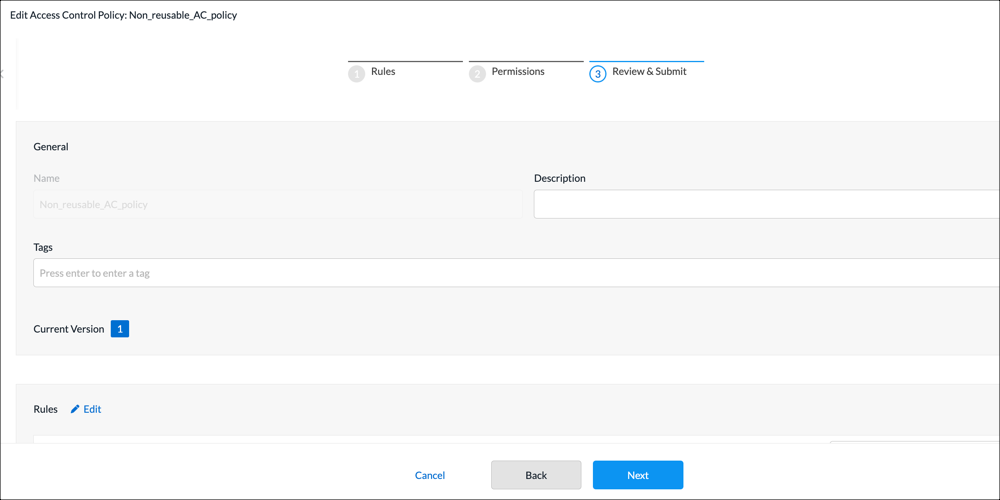

6. In the Edit Policies workflow, select a workflow step in the top menu bar to modify the configuration. For example, in the screen below, select the Rules workflow step to modify the configured rules. Note that the workflow steps might be different for different policy types.


7. After modifying the configuration values, select the workflow step for Review and Submit step.
8. Click Next to save your changes.
9. To perform actions on a non-reusable policy, click the box to the left of the policy name. This activates the action menu bar in the upper-right portion of the screen.

   The example below shows the Access Control Policies table with a policy selected and the action menu bar activated.



   Select one of the following actions:


   Action	Description
   Delete	Delete the policy.
   Make Reusable	Change the policy to be reusable by other main templates. If you select this option, you cannot switch the policy back to a non-reusable state.

Supported Software Information

Releases 13.1.1 and later support all content described in this article.
