Configure WiFi Radio Interfaces in Concerto

For supported software information, click here.

To configure a WiFi radio interface in Concerto:

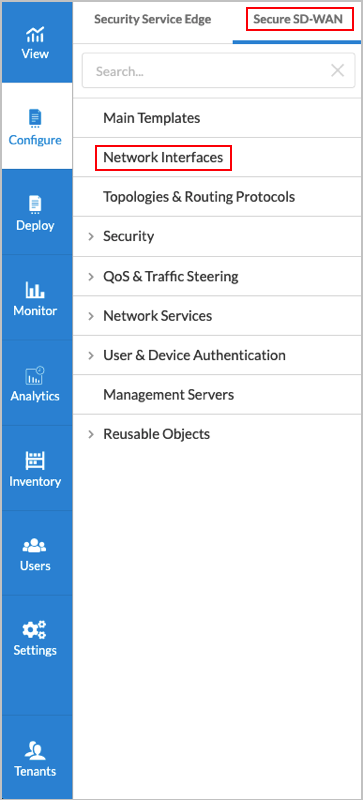

1. In Tenant view, select Configure > Secure SD-WAN > Network Interfaces.



   The Interfaces screen displays with the WAN tab selected by default.

2. Select the WiFi Radios tab. The screen displays WiFi radio interfaces that are configured.



3. Click the  Add icon. The workflow to add a WiFi radio interface displays, beginning with step 1, Settings.
4. Enter information for the following fields.




   Field	Description
   Regulatory Country	Select the country in which the device is located.
   Frequency	Enter the frequency for the WiFi radio interface: 2.4 GHz 5 GHz (Default)
   Operating Mode (Group of Fields)
   Protocol	Select the WiFi protocol to use: 802.11ac (Default) 802.11n
   Channel	Select the radio channel to use: Auto (Default) 36 40 44 48 149 153 157 161 165
   Channel Width	Select the channel width: 20 MHz 40 MHz (Default) 80 MHz 160 MHz 20/40 MHz
   Power	Select the power level: Low Medium (default) High

5. Click Next or select workflow step 2, Permissions.



6. Select or unselect permissions for each role, as needed.
7. Click Next or select workflow step 3, Review & Submit.



8. Enter a name for the interface in the Name field. You can also enter a description and tags. A tag is an alphanumeric text descriptor with no spaces or special characters that you use for searching objects.
9. Review the configuration. Click the  Edit icon in any section if you need to change the settings.
10. Click Submit to create the interface.
