Configure SD-WAN WAN-Facing Routing Protocols

Create a WAN-Facing Routing Protocols Configuration

You can create a WAN-facing routing protocols configuration as part of a main template, or you can create it separately and then associate it with a main template. For more information about main templates, see Configure Main Templates.

• To create a WAN-facing routing protocols configuration using the main template workflow:
  1. In Tenant view, select Configure > Secure SD-WAN > Main Templates.
  2. Click + Add, or select an existing main template for which you want to configure the WAN-facing routing protocols.
  3. Select workflow step 3, Topologies & Routing Protocols, in the top menu bar. The following screen displays.



  4. Select the WAN tab, and then click Add New WAN-Facing Routing Protocol. The Add WAN-Facing Routing Protocol workflow screen displays.
  5. Continue to Configure WAN-Facing Routing Protocols, below.

• To create a WAN-facing routing protocol configuration separately from a main template:

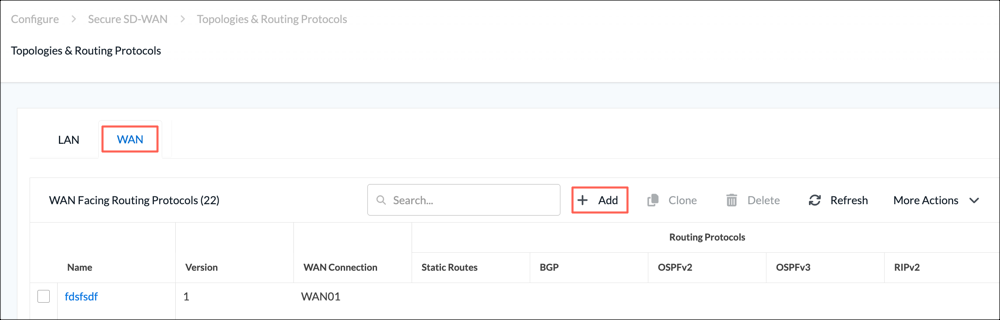

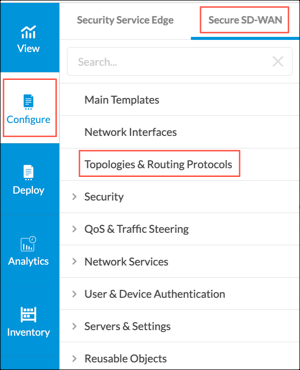

  1. In Tenant view, select Configure > Secure SD-WAN > Topologies & Routing Protocols.



     The following screen displays.


  2. Select the WAN tab, and then click + Add. The Add WAN Facing Routing Protocol workflow screen displays.
  3. Continue to Configure WAN-Facing Routing Protocols, below.

Configure WAN-Facing Routing Protocols

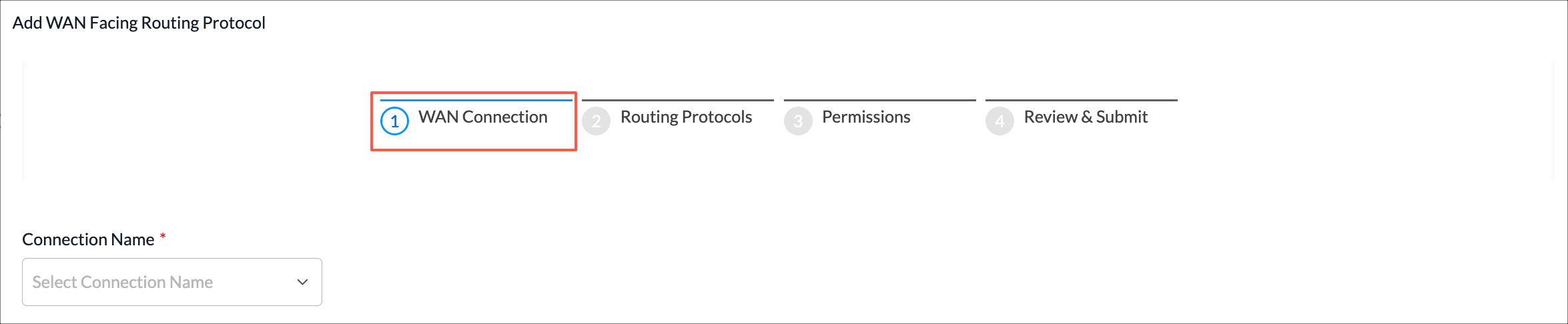

1. In the Add WAN-Facing Routing Protocol workflow, select step 1, WAN Connection.



2. In the Connection Name field, select a connection.
3. Click Next or select workflow step 2, Routing Protocols.

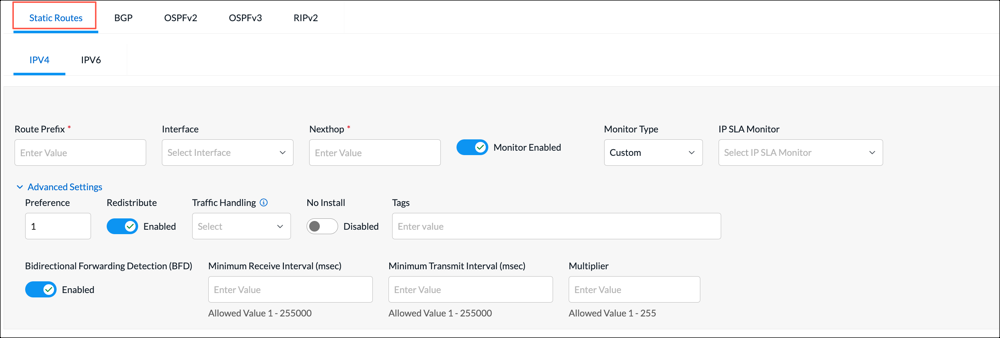

4. To add static routes, select the Static Routes tab, and then select the IPv4 or IPv6 tab. Enter information for the following fields.




   Field	Description
   Route Prefix	Enter the IPv4 or IPv6 subnet.
   Interface	Select an interface.
   Nexthop	Enter the IP address for the next hop.
   Monitor Enabled/Disabled	Click the toggle to enable or disable monitoring for the WAN connection.
   Monitor Type	Select the monitor type, Gateway or Custom.
   IP SLA Monitor	(For Custom monitor types) Select an IP SLA monitor or monitor group. To add a new IP SLA monitor, click +Add IP SLA Monitors. To add a new IP SLA monitor group, see IP SLA Monitor Groups in Configure Reusable Objects.
   Advanced Settings	Click to display the fields listed below.
   Preference	Enter the preference for the traffic route. A lower preference value indicates a higher preference for using the route. Range: 1 through 255
   Redistribute Enabled/Disabled	Click the toggle to enable or disable route redistribution. Route redistribution enables the exchange of routing information between different routing protocols. Concerto route redistribution is based on the personality of the device, such as hub, spoke, or Controller.
   Traffic Handling	Select one of the following traffic handling options: Discard—Drop packets marked for the destination. Do not send ICMP unreachable message. Reject—Drop packets marked for the destination. Send an ICMP unreachable message.
   No Install	Click the toggle to enable or disable the no-install option. When enabled, this option prohibits the installation of received routes in the forwarding table.
   Tags	Enter a route tag. Route tags can be used in static routing to avoid routing loops.
   Bidirectional Forwarding Detection (BFD)	Click the toggle to enable or disable bidirectional forwarding detection (BFD). BFD detects liveness for BGP peers, OSPF neighbors, and static route next hops.
   Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds. Range: 1 through 255000 milliseconds Default: 1000 milliseconds
   Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds. Range: 1 through 255000 milliseconds Versa recommended value: 500 ms or more
   Multiplier	Enter the multiplier value used to calculate the final minimum receive interval and minimum transmit interval. Range: 1 through 255 Default: 3

5. To configure the BGP routing protocol, select the BGP tab. The following screen displays.



6. Select the EBGP or IBGP tab to configure external BGP or internal BPG respectively.
7. Enter information for the following fields.

   Field	Description
   Local ASN	Enter the local AS number. Range: 0 through 4294967295
   Bidirectional Forwarding Enabled/Disabled	Click the toggle to enable or disable BFD.
   Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds. Range: 1 through 255000 milliseconds Default: 1000 milliseconds
   Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds. Range: 1 through 255000 milliseconds Versa recommended value: 500 ms or more
   Multiplier	Enter the multiplier value used to calculate the final minimum receive interval and minimum transmit interval. Range: 1 through 255 Default: 3
   Neighbor (Group of Fields)
   Enabled	Click the toggle to enable or disable the neighbor.
   Local Interface or Local Address	Click either Local Interface or Local Address, and then select a value from the drop-down list.
   Neighbor Address	Neighbor IPv4 or IPv6 address.
   Peer ASN	Enter the remote peer's AS number.  Range: 0 through 4294967295
   Password	Enter the password to authenticate the BGP instance.
   Import BGP Peer Policy	Select a BGP import policy. BGP import policies are applied to routes imported from external BGP peers and determine which routes are accepted into the routing table. To create a new BGP peer policy, see procedure step 10, below.
   Export BGP Peer Policy	Select a BGP export policy. BGP export policies are applied to routes exported from the routing table to external BGP peers and control the routes are advertised to other peers. To create a new BGP peer policy, see procedure step 10, below.
   Advanced Settings (Group of Fields)	Click to configure the following three fields.
   Suppress Peer ASN	Click to enable or disable suppression of advertised routes received from an EBGP neighbor to another neighbor that is in the same AS as originating neighbor.
   Hold Time	Enter the hold time, in seconds, to negotiate with a peer. Range: 3 through 65535 seconds
   TTL	Enter the time-to-live value, which is the number of hops that a packet can travel in a network before the packet expires. Range: 1 through 255 Default for EBGP: 64 (Note that you do not need to enable EBGP multihop.) Default for IBGP: 64
   + Add Another	Click to add another neighbor.

8. To configure BGP peer policies, select + Create New in the Import BGP Peer Policy or Export BGP Peer Policy drop-down list. The Add BGP Peer Policy workflow displays.



   For information about adding a BGP peer policy, see Add a BGP Peer Policy in Configure Reusable Objects.

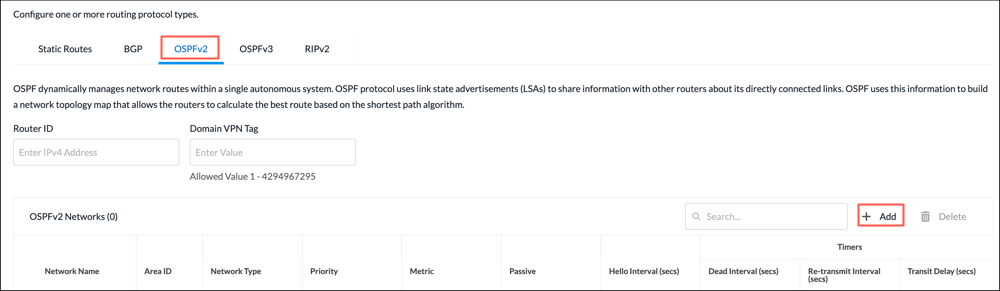

9. To configure OSPFv2, select the OSPFv2 tab.



   1. In the Router ID field, enter an IPv4 address. In the Domain VPN Tag field, enter a Domain VPN tag.
   2. Click + Add. In the Add OSPFv2 Network popup window, enter information for the following fields.



      Field	Description
      Network Name (Required)	Select a network name from the drop-down list.
      Area ID (Required)	Enter an ID for the area. A backbone area has an area ID of 0.0.0.0. Areas with non-zero IDs are non-backbone areas.
      Network Type	Enter the network type: Broadcast Loopback Point to Point
      Priority (Required)	Enter a priority value to use in the election of the designated router (DR) and the backup designated router (BDR). On a multiaccess network, the OSPF router with the highest priority becomes the designated router, and the OSPF router with the second-highest priority becomes the backup router. If you set the priority to 0, the device does not participate in designated router and backup designated router election process. Default: 1
      Metric (Required)	Enter a value for the OSPF interface cost, which is used to calculate the total cost to reach a destination. Range: 1 through 65535 Default: 1
      Passive	Click to mark the router as a passive listener. A passive router sends no advertisement messages.
      Timers (Group of Fields)
      Hello Interval	Enter the interval, in seconds after which router sends advertisement messages. Range: 1-255
      Dead Interval	Enter the time to wait, in seconds, before the router declares a neighbor to be dead because it has received no advertisements within that amount of time. Range: 1-65,535
      Retransmit Interval	Enter the retransmit interval, in seconds, after which the router can retransmit a message. Range: 1-3600
      Transit Delay	Enter the delay, in seconds, for retransmitting a message. Range: 1-3600
      Authentication (Group of Fields)
      Type	Select how to authenticate OSPF router traffic: None MD5—Use encrypted authentication Simple Password—Use simple password-based authentication.
      Key ID (Required)	For MD5, enter the key ID. Range: 0-255
      MD5 Auth Key (Required)	For MD5, enter the authorization key. Range: 4-16 characters
      Simple Password Auth Key	For Simple Password, enter the password.
      Bidirectional Forwarding Enabled/Disabled	Click the toggle to enable or disable BFD.
      Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds. Range: 1-255000
      Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds. Range: 1-255
      Multiplier	Enter the multiplier value used to calculate the final minimum receive interval and minimum transmit interval. Range: 1-255000

   3. Click Add OSPFv2 Network.

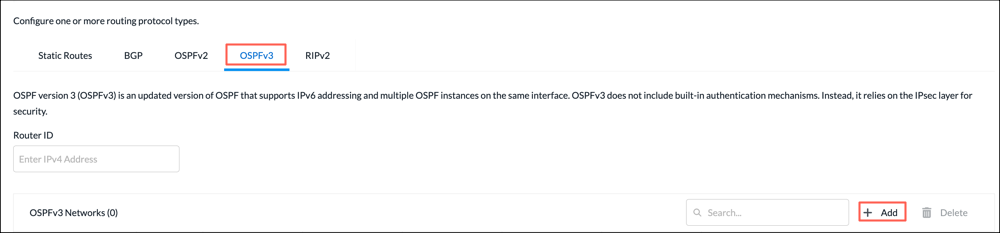

10. To enable OSPFv3 ,select the OSPFv3 tab.



    1. In the Router ID field, enter an IPv4 address.

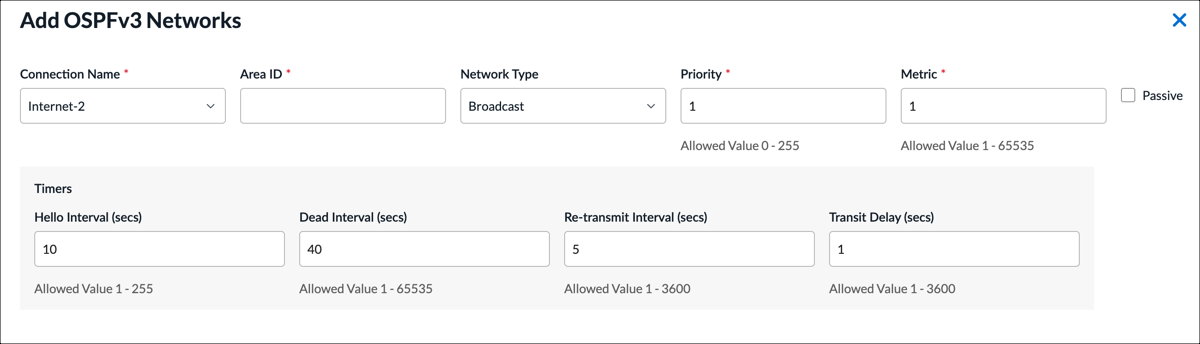

    2. Click + Add. In the Add OSPFv3 Networks popup window, enter information for the following fields.




       Field	Description
       Connection Name (Required)	Select a connection name from the drop-down list.
       Area ID (Required)	Enter an ID for the area. A backbone area has an area ID of 0.0.0.0. Areas with non-zero IDs are non-backbone areas.
       Network Type	Enter the network type: Broadcast Loopback Point to Point
       Priority (Required)	Enter a priority value to use in the election of the designated router (DR) and the backup designated router (BDR). On a multiaccess network, the OSPF router with the highest priority becomes the designated router, and the OSPF router with the second-highest priority becomes the backup router. If you set the priority to 0, the device does not participate in designated router and backup designated router election process. Range: 0 through 255
       Metric (Required)	Enter a value for the OSPF interface cost, which is used to calculate the total cost to reach a destination. Range: 1 through 65535
       Passive	Click to mark the router as a passive listener. A passive router sends no advertisement messages.
       Timers (Group of Fields)
       Hello Interval	Enter the interval, in seconds after which router sends advertisement messages. Range: 1 through 255
       Dead Interval	Enter the time to wait, in seconds, before the router declares a neighbor to be dead because it has received no advertisements within that amount of time. Range: 1 through 65535
       Retransmit Interval	Enter the retransmit interval, in seconds, after which the router can retransmit a message. Range: 1 through 3600
       Transmit Delay	Enter the delay, in seconds, for retransmitting a message. Range: 1 through 3600

    3. Click Add OSPFv3 Network.

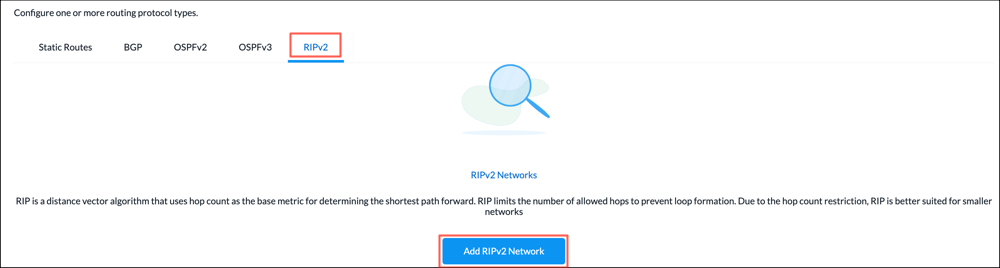

11. To enable RIPv2, select the RIPv2 tab.

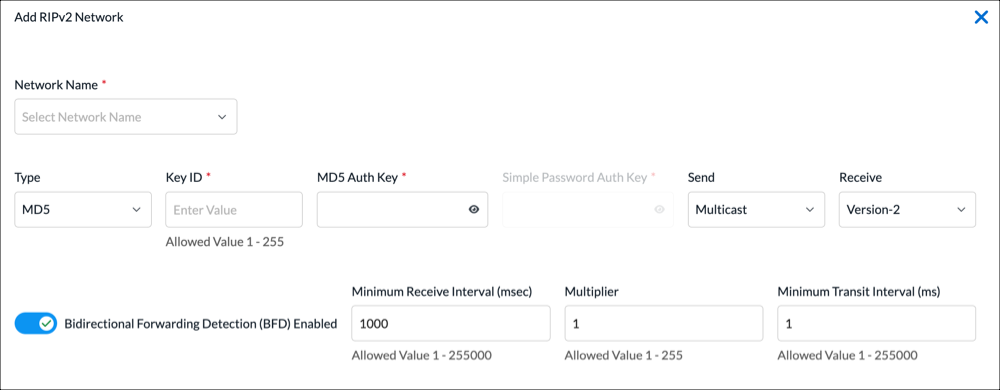

    1. Click Add RIPv2 Network. The Add RIPv2 Network popup window displays.


       ​​​​​​
    2. Enter information for the following fields.


       Field	Description
       Network Name	Select a network name from the drop-down list.
       Type	Select how to authenticate router traffic: None MD5—Use encrypted authentication Simple Password—Use simple password-based authentication.
       Key ID	For authentication type MD5, enter the key ID.
       MD5 Auth Key	For authentication type MD5, enter the authorization key.
       Simple Password Auth Key	For authentication type Simple Password, enter the password.
       Send	Selection how to send request messages: None Version 2
       Receive	Select how to receive response message from neighboring routers: Multicast None
       Bidirectional Forwarding Enabled/Disabled	Click the toggle to enable or disable BFD.
       Minimum Receive Interval	Enter the minimum time interval to receive routes, in milliseconds.
       Multiplier	Enter the multiplier value used to calculate the final minimum receive interval and minimum transmit interval.
       Minimum Transmit Interval	Enter the time after which routes can be retransmitted, in milliseconds.

    3. Click Add RIPv2 Network.

12. Click Next or select workflow step 3, Permissions.

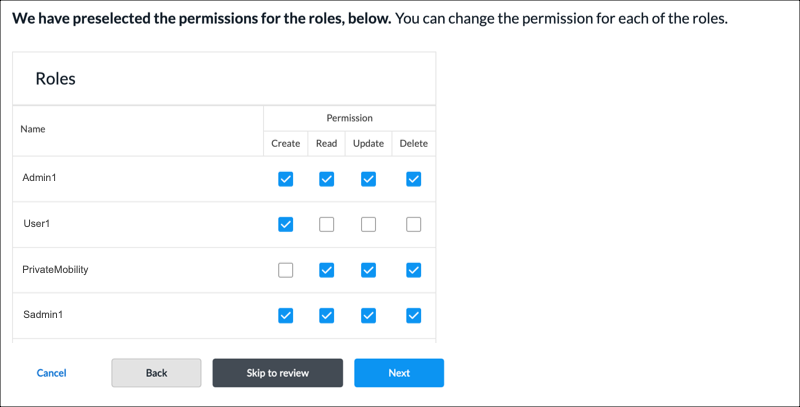

13. To change the permissions for a role, select Create, Read, Update, or Delete in the Permissions column. These permissions apply to this specific policy; see Object Permissions in Versa Concerto for SD-WAN.
14. Click Next or select workflow step 4, Review & Submit.
15. In the General section, enter information for the following fields.




    Field	Description
    Name	Enter a name for the WAN-facing routing protocols configuration.
    Description	Enter a text description.
    Tags	Enter a tag, and then press the Enter key. You can enter multiple tags. A tag is an alphanumeric text descriptor with no spaces or special characters. The tags are used for searching the objects.
    Reuse Options	(For configurations added through the Main Templates workflow.) Click Reusable on Other Templates to make the configuration usable in other main templates. Otherwise, click Not Reusable.

16. Review the settings you have selected. Click the  Edit icon to change a setting, as needed.
17. Click Submit.

Manage SD-WAN WAN-Facing Routing Configurations

You can perform the following actions on SD-WAN WAN-facing routing configurations:

• Edit
• Clone
• Delete
• View references
• Propagate
• Compare versions
• View the audit log
• Enable and disable auto delete

For information about these actions, see Manage SD-WAN Policies and Profiles.

Supported Software Information

Releases 13.1.1 and later support all content described in this article.
