Configure DNS Proxy for Concerto

Create a DNS Proxy Policy

You can create a DNS proxy policy as part of a main template, or you can create it separately and then associate it with a main template. For more information on main templates, see Configure Main Templates.

• To create a DNS proxy policy for an existing main template:
  1. In Tenant view, select Configure > SD-WAN > Main Templates.
  2. Select the main template for which you want to configure the policy.
  3. Click the workflow step for Network Services (here, step 4). The screen displays Carrier Grade NAT (CGNAT) tab selected by default.
  4. Click DNS Proxy tab, and then click Add New DNS Proxy Policy.


  5. Continue to Configure DNS Proxy Policies, below.
• To create a DNS proxy policy separately from a main template:
  1. In Tenant view, select Configure > Secure SD-WAN > Network Services > DNS Proxy.


     • If you have not yet configured a DNS proxy policy, click Add New DNS Proxy Policy.
     • If you have configured one or more DNS proxy policies, the following screen displays.


  2. Select the Policy tab, and click the + Add icon.
  3. Continue to Configure DNS Proxy Policies, below.

Configure a DNS Proxy Policy

Complete the following workflow to configure a DNS proxy policy.

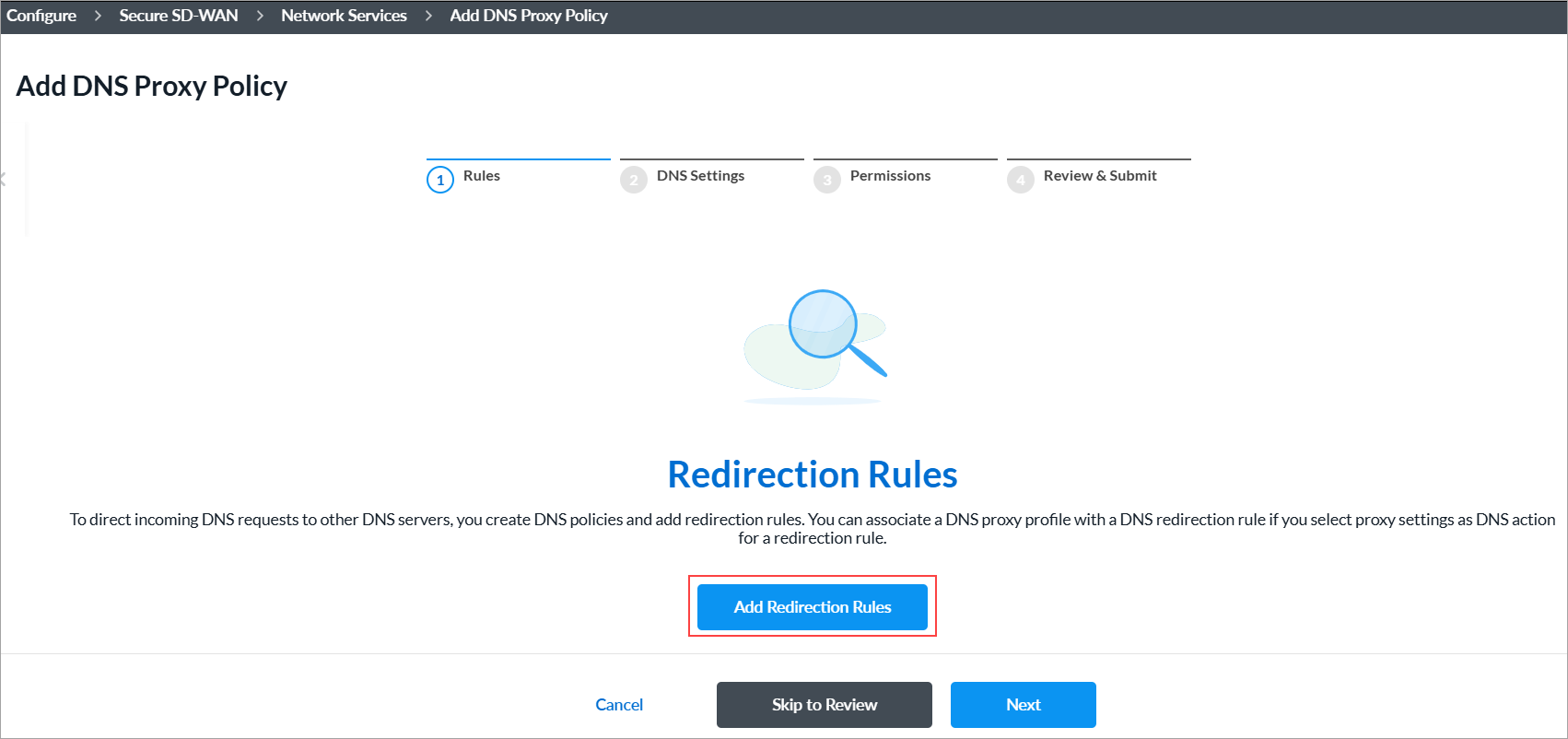

1. In workflow step 1, Rules, click Add Redirection Rules.


2. Complete the following workflow to add a redirection rule.


   1. Select step 1, Source and Destination Traffic.
      1. Select the Source Addresses tab, and enter information for the following fields. By default, all source and destination traffic is included. You can specify the source and destination addresses and zones from which traffic originates.




         Field	Description
         Address Groups	Select one or more source address groups from which traffic originates, or use the search box to find a source address group. To add a new address group, click the + Add icon. See Configure Reusable Objects.
         Address Objects	Select one or more source address objects from which traffic originates, or use the search box to find a source address object. To add a new address object, click the + Add icon. See Configure Reusable Objects.
         IP Range	Enter one or more IP address ranges, for example, 10.2.1.1-10.2.2.2.
         Subnets	Enter one or more IP subnets, for example, 10.1.1.0/24
         Wildcards	Enter one or more IP wildcard, for example, 192.168.0.56/255.255.0.255

      2. Click the Destination Addresses tab, select one or more destination address groups and address objects from which traffic originates, or use the search box to find destination address groups and address objects. You can also enter values for the IP range, subnets, and the wildcard for the rule to match. The fields are the same as for the Source Addresses, described above.

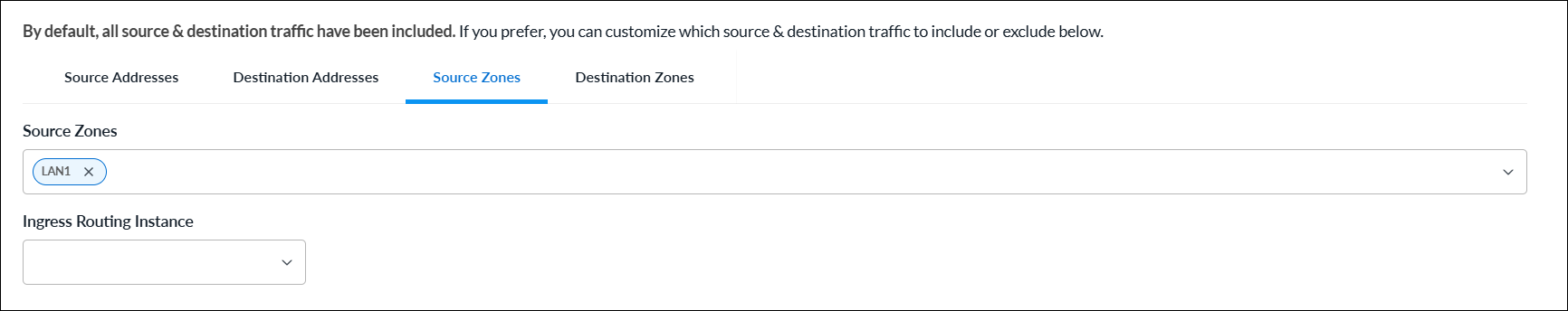

      3. Select the Source Zones tab and enter information for the following fields.




         Field	Description
         Source Zones	Select one or more source zones.
         Ingress Routing Instance	Select an ingress routing instance.

      4. Select the Destination Zones tab, and then enter the information for the destination zone. The fields are the same as for the Source Zones, described above.

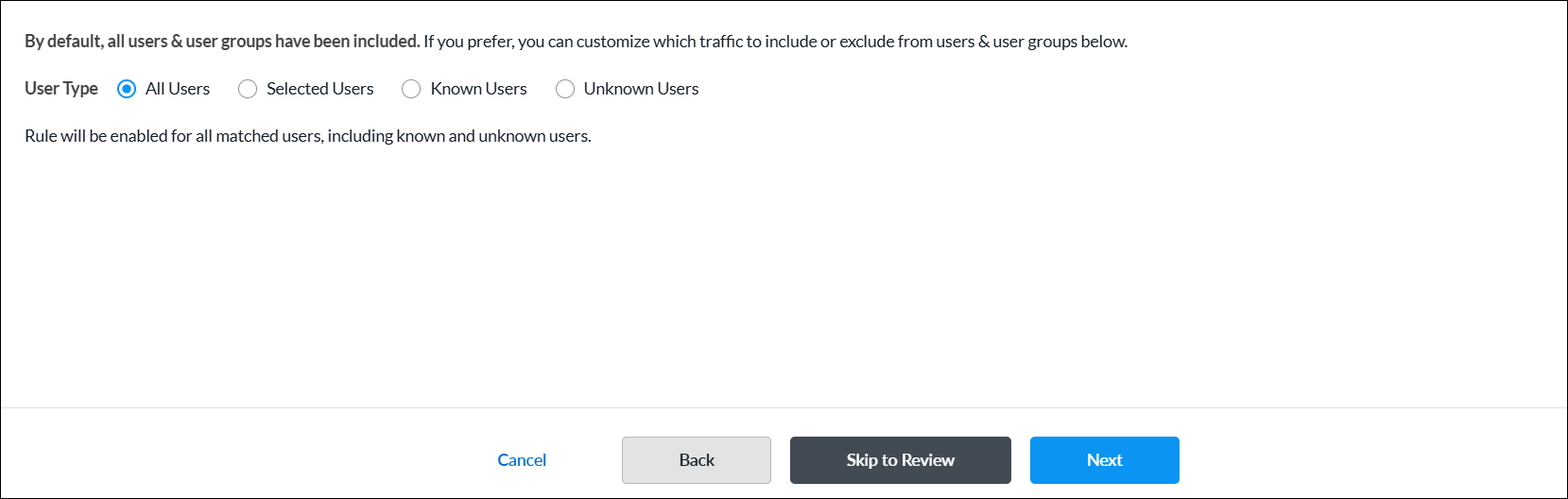

   2. Click Next or select step 2, Users and User Groups. By default, all users and user groups are included. To customize the specific users or groups to be included, enter the following information.



      1. Select the user type to match from All Users, Known Users, Unknown Users, and Selected Users.

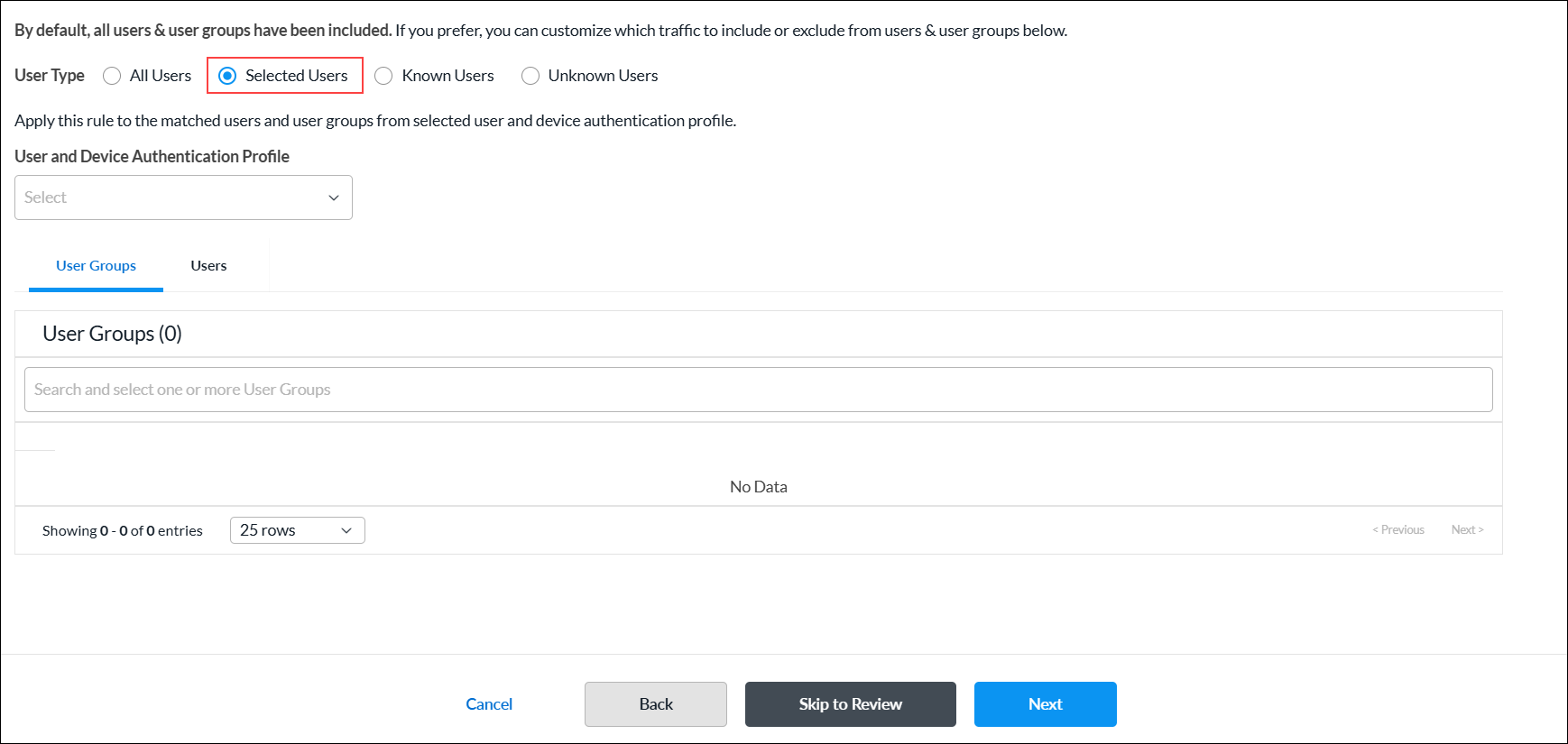

      2. If you select Selected Users, the following options display.


      3. Select a Users and Groups Profile. For more information, see Configure User and Device Authentication.
      4. Select the User Groups tab to search for and select user groups.
      5. Select the Users tab to search for and select users.
   3. Click Next or select step 3, Source and Destination Geo Location, to specify the geographic regions for source and destination traffic source. Geolocation refers to the use of location technologies such as IP addresses to identify and track the whereabouts of connected electronic devices. By default, we have included devices in all locations. You can customize, by selecting which country, state, city to include.
      1. On the Source Address tab, click Select Country to select one or more countries.
      2. Click the Destination tab, and then click Select Country to select one or more countries.


   4. Click Next or select step 4, DNS Headers, to define DNS operation codes and matching criteria for incoming packets.


      1. In the Operating Code field, select the type of DNS operation code to which the rule applies:
         • IQuery—Send a request for an inverse DNS query command.
         • Notify—Send a request for a DNS notify command.
         • Query—Send a request for a DNS query command.
         • Status—Send a request for a DNS status command.
         • Update—Send a request for a DNS update command.
      2. For each request type, you must enter additional information, as described in the following steps.

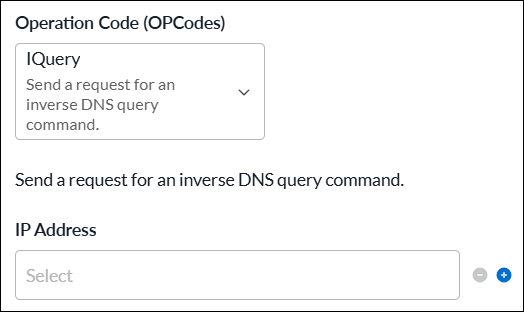

         • If you select the IQuery request type, enter IPv4 or IPv6 addresses to which to send an inverse query. Click the  Add icon to add one or more IP addresses.


         • If you select the Query request type, enter information for the following fields.




           Field	Description
           Query Type	Select the DNS resource record (RR) types to query: A A6 AAAA—IPv6 address AFSDB—AFS database location ALL—All resource record types APL—Address prefix list ATM—ATM address AXFR—Asynchronous Transfer Full Range  CAA—Certification Authority Authorization CERT—Certificates CNAME—Canonical name for an alias DHCID—DHCP ID DNSKEY—DNS key DS—Delegation signer EID—Endpoint identifier GPOS—Geographical position HINFO—Host information HIP—Host identity protocol ISDN—ISDN address ISECKEY—IPsec key IXFR—Incremental transfer KEY—Security key KX—Key exchanger LOC—Location information MAILA—Mail agent route records MAILB—Mailbox-related route records (MB, MG, or MR) MB—Mailbox domain name MD—Mail destination MF—Mail forwarder MG—Mail group member MINFO—Mailbox or mail list information MR—Mail rename domain name MX—Mail exchange NAPTR—Naming authority pointer NIMLOC—Nimrod locator NINFO—Identical to TXT RR [RR56] NS—Authoritative name server NSAP NSAP-PTR—Domain name pointer for an NSAP style NSEC—Authenticated denial of existence NSEC3—Authenticated denial of existence NSEC3PARAM—NSEC3 parameters NULL—Null resource record NXT—Next domain OPT—Options PTR—Domain name pointer PX—X.400 mail mapping information RKEY—Record key RP—Responsible person RRSIG—Resource resource digital signature RT—Route through SIG—Security signature SINK—Kitchen sink SOA—Marks the start of a zone of authority SPF—Sender policy framework SRV—Server selection SSHFP—SSH key fingerprint TALINK—Trusted anchor link TKEY—Transaction key TSIG—Transaction signature TXT—Text strings WKS—Well-known service description X25—X.25 PSDN address
           Domain Name	Enter the domain name.
           Negate	Click to apply the rule to any query type and domain name, except those selected.

         • If you select the Notify or Status request type, click the  Add icon to add zone names.


         • If you select the Update request type, click the  Add icon to add domain names.


   5. Click Next or select step 5, DNS Action, to define the proxy settings for the rule.
      1. For Use Proxy Profile Settings action, enter information for the following fields.




         Field	Description
         DNS Proxy Profile	Select a DNS proxy profile to associate with the redirection rule. Click  Create New to add a proxy profile. For more information, see Configure DNS Proxy Profiles, below.
         Number of Domains To Cache	Enter the number of DNS domains to cache. The DNS server uses information in its cache to respond to DNS queries. When a DNS domain entry in the DNS domain name cache times out depends on the TTL value in the DNS response, as defined in the DNS protocol.  Range: 0 through 65535
         DNS-64 Prefix	Enter the DNS extensions for network address translation from IPv6 clients to IPv4 servers.
         Cache TTL Upper Limit	Enter the upper limit of the time to live for the network obfuscation cache, in seconds.
         Override Question	Enter the domain name to have DNS proxy override the domain name in the question section with the configured domain name before it sends the query to the server. When DNS forwards the response to the client, it restores the original domain name.
         Only IPv4 WAN Available	Click when the WAN uses only IPv4. Click the  toggle to enable logging. Default: Disabled.
         Apply Policy-Based Forwarding	Click to look up SD-WAN policy rules to determine the path on which to send the DNS query. Click the  toggle to enable logging. Default: Disabled.

      2. If you select Use Server Settings, enter information for the following fields.



         Field	Description
         IP Address	For type A/AAAA DNS queries only, enter the static IPv4 or IPv6 address to send in the response to a DNS query.
         IP SLA Monitor	Select a monitor object to evaluate the state of the IP addresses configured in the resolver. The evaluation is done when checking the availability of the DNS server using the method configured in the Mode field. Based on the results of the evaluation, the traffic is sent accordingly. Click the  Add icon to add a monitor. If you do not select a monitor object, all the IP addresses configured in the resolver appear active regardless of their actual status.

      3. To take no action, select None (this is the default).
   6. Click Next or select step 6, Review and Submit.
      1. In the General section, enter information for the following fields.




         Field	Description
         Name	Enter the name or the rule.
         Description	(Optional) Enter a description for the rule.
         Tags	(Optional) Enter one or more tags. A tag is an alphanumeric text descriptor with no spaces or special characters. You can specify multiple tags added for the same object. The tags are used for searching the objects.
         Logging Enabled	Click the  toggle to enable logging for the rule. Default: Disabled.

      2. For all other sections, review the information. To make changes, click the  Edit icon.
      3. Click Add Redirection Rules. The Redirection Rules screen displays the saved rule.


3. Click Next or select step 2, DNS Settings, to configure DNS cache details.




   Field	Description
   Enabled Domain Cache	Click to disable domain cache. By default, Enable Domain Cache is enabled.
   Cache Size	Enter the domain cache size, in GB.
   Maximum TTL	Enter the maximum TTL to cache (in seconds). When a DNS domain entry in the DNS domain name cache times out depends on the TTL value in the DNS response, as defined in the DNS protocol.

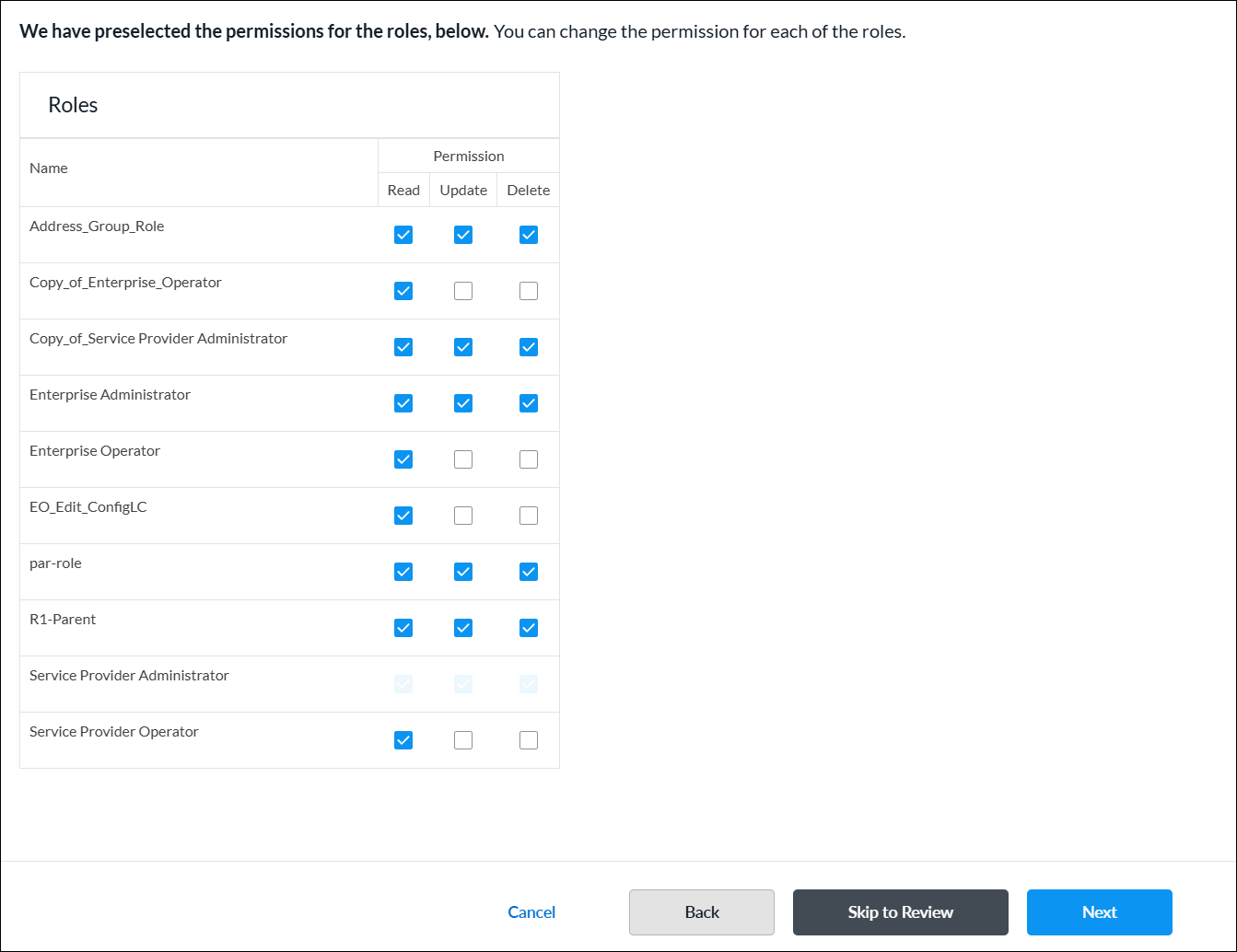

4. Click Next or select step 3, Permissions. Change the permissions for one or more roles, if needed.


5. Click Next or select step 4, Review and Submit.
6. In the General section, enter a name for the DNS proxy policy and, optionally, a description and a tag.


7. For all other sections, review the information. To make changes, click the  Edit icon.
8. Click Submit.

Configure a DNS Proxy Profile

1. In Tenant view, select Configure > Secure SD-WAN > Network Services > DNS Proxy.


   • If you have not yet configured a DNS proxy profile, select the Profile tab, and then click Add New DNS Proxy Profile.
   • If you have configured one or more DNS proxy profiles, select the Profile tab. The following screen displays.


2. Click the  Add icon. The Add DNS Proxy Profile screen displays.

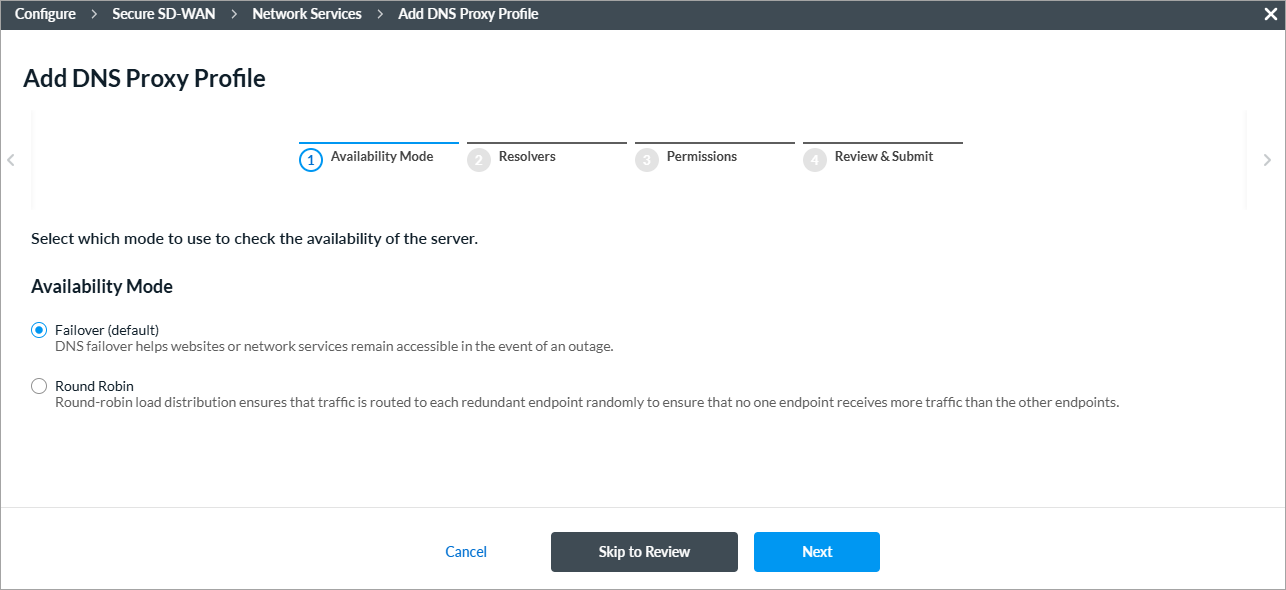

3. In the Add DNS Proxy Profile screen, click workflow step 1, Availability Mode, to select the mode to use to check the availability of the server:
   • Failover (default)—Click to redirect the traffic through another resolver if the resolver fails or is not reachable. This is the default.
   • Round Robin—Click to use a round-robin method to distribute traffic among the resolvers. This ensures that no one endpoint receives more traffic than the other endpoints.

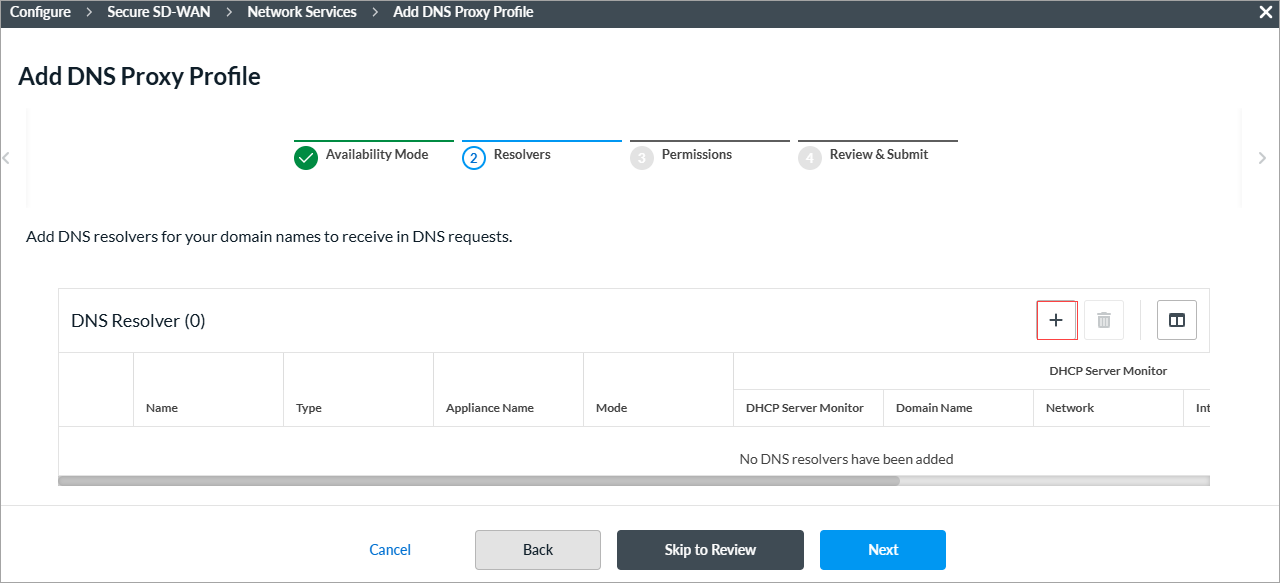

4. Click Next or select step 2, Resolvers, to add DNS resolvers for your domain names to receive in DNS requests.


   1. In the DNS Resolver table, click the  Add icon. The Create DNS Resolver window displays.


   2. In step 1, Settings, enter information for the following fields.


      Field	Description
      Resolver Type	Select the resolver type to use.
      Remote SD-WAN Site	Click, and then in the Appliance field,  select an SD-WAN site from which to send traffic for DNS resolution. Configuring a site name is commonly used to optimize direct internet access (DIA) and direct cloud access (DCA). Then, go to step 3-d below.

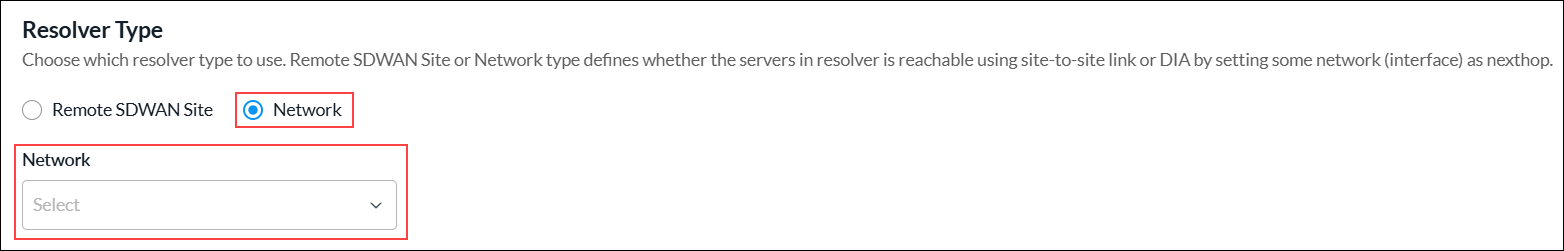

      Network	Click, and then in the Network field, select which local WAN or LAN networks to use to proxy a DNS request.   When you select Network field, the step 2, DHCP-Learned DNS Server Monitors is added to the workflow.
      Mode	Select the mode to use to check the availability of the DNS server: Failover—Click to redirect the traffic through another resolver server if the server configured in resolver fails or not reachable. This is the default. Round-robin—Click to use a round-robin method to send traffic among the resolvers. Default: Failover

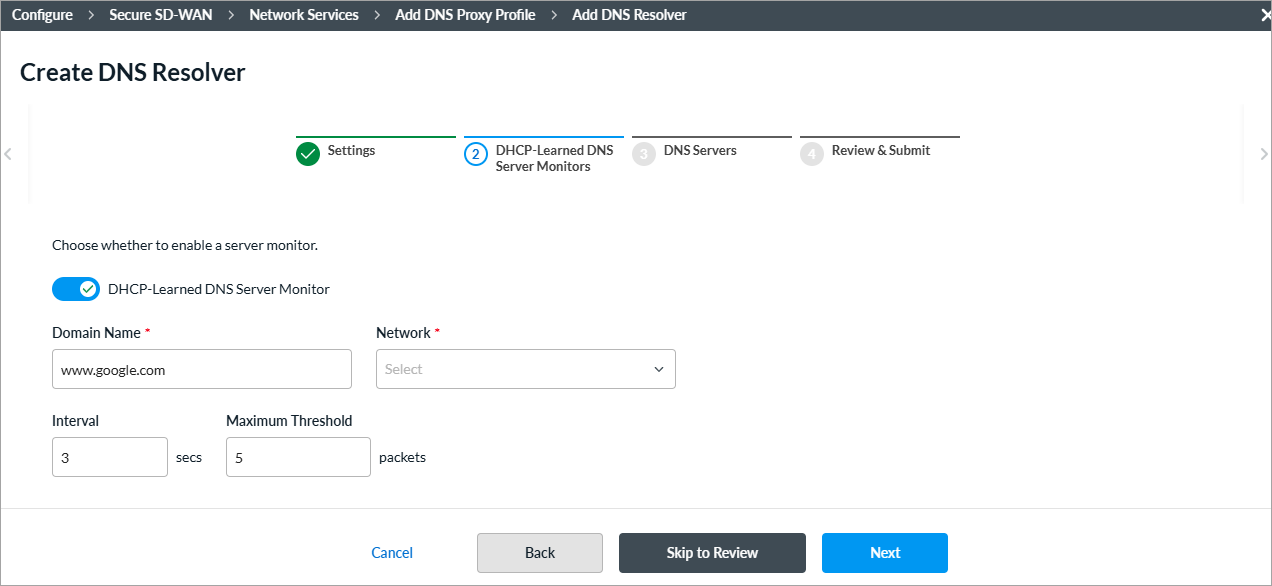

   3. Click Next or select step 2, DHCP-Learned DNS Server Monitors, to configure a server monitor for the server assigned by Dynamic Host Configuration Protocol (DHCP). Enter information for the following fields.



      Field	Description
      DHCP-Learned DNS Server Monitor	Click the  toggle button to enable DHCP-learned DNS server monitor. When a WAN on which DHCP is configured uses DNS servers from a service provider to resolve IP addresses, the DHCP server monitor checks whether the DNS servers are incorrect or unreachable. Default: Disabled
      Domain Name (Required)	Enter the domain name for the DNS server.
      Network (Required)	Enter the network used to derive the source interface.
      Interval	Click and enter the interval between monitor packets, in seconds. Default: 1 second Range: 1 through 60 seconds
      Maximum Threshold	Enter the maximum number of monitor packet retransmissions before the node is declared as down. Default: 1 second Range: 1 through 60

   4. Click Next or select step 3, DNS Servers, to add one or more DNS servers for the resolver. Enter information for the following fields.



      Field	Description
      IP Address	Enter the IPv4 or IPv6 address of the DNS server.
      Port	Enter the port number to use to connect to the DNS server.
      IP SLA Monitor	Select an IP SLA monitor object to evaluate the state of the IP addresses configured in the resolver. The evaluation is done when checking the availability of the DNS server using the method configured in the Mode field. Based on the results of the evaluation, the traffic is sent accordingly. Click the  Add icon to add an IP SLA monitor. If you do not select an IP SLA monitor object, all the IP addresses configured in the resolver appear active regardless of their actual status.

   5. Click Next or select step 4, Review and Submit.
   6. In the General section, enter a name for the DNS resolver. You can also add a description and tags.


   7. For all other sections, review the information. To make changes, click the  Edit icon.
   8. Click Add DNS Resolver.

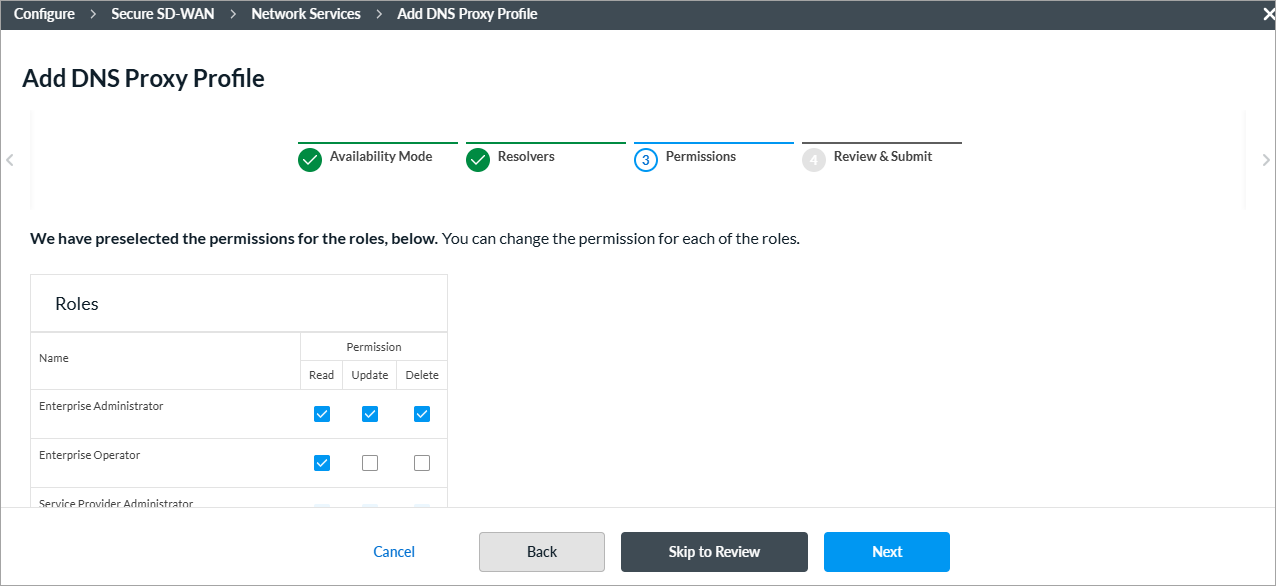

5. Click Next or select step 3, Permissions, to set or update the permission for each role. The permission for each role is selected by default, and you can update it. The role permissions are Read, Update, and Delete.



6. Click Next or select step 4, Review and Submit, to review the information.


7. In the General section, enter a name for the DNS proxy profile, description and tags.
8. For all other sections, review the information. To make changes, click the  Edit icon.
9. Click Submit.

Manage DNS Proxy Policies

You can perform the following actions on DNS proxy policies:

• Edit
• Clone
• Copy to subtenant
• Delete
• View references
• Propagate
• Compare versions
• View the audit log
• Enable and disable auto delete

For information about these actions, see Manage SD-WAN Policies and Profiles.

Supported Software Information

Releases 13.1.1 and later supports all content described in this article.
