Configure Captive Portal for SD-WAN

  1. Last updated
  2. Save as PDF

Versa-logo-release-icon.pngFor supported software information, click here.

To control which URLs users can view when they are accessing internet webpages, you can configure captive portal. For the URLs whose access you want to control, you redirect users to a captive portal webpage on which you can display standard or customized messages that provide information about the webpage. For these webpages, you can control access or or you can block access completely.

For the URLs whose access you want to control, you redirect users to a captive portal page (a user intercept page) on which you can display a standard or customized message that provides information about the page. As part of URL-filtering policy enforcement, you can redirect users to captive portal pages. For the captive portal page itself, you can display one of the standard Versa Operating SystemTM (VOSTM) pages, or you can upload and use a custom page. When you select the ask, block, or justify action in a URL-filtering profile, the captive portal page for the selected action displays.

Configure Captive Portal Pages

To display the default VOS captive portal pages with default messages, you configure predefined captive portal actions. You can also customize messages on the default captive portal pages or upload custom captive portal pages.

To configure captive portal pages:

  1. In Tenant view, select Configure > Secure SD-WAN > Security > Captive Portal.

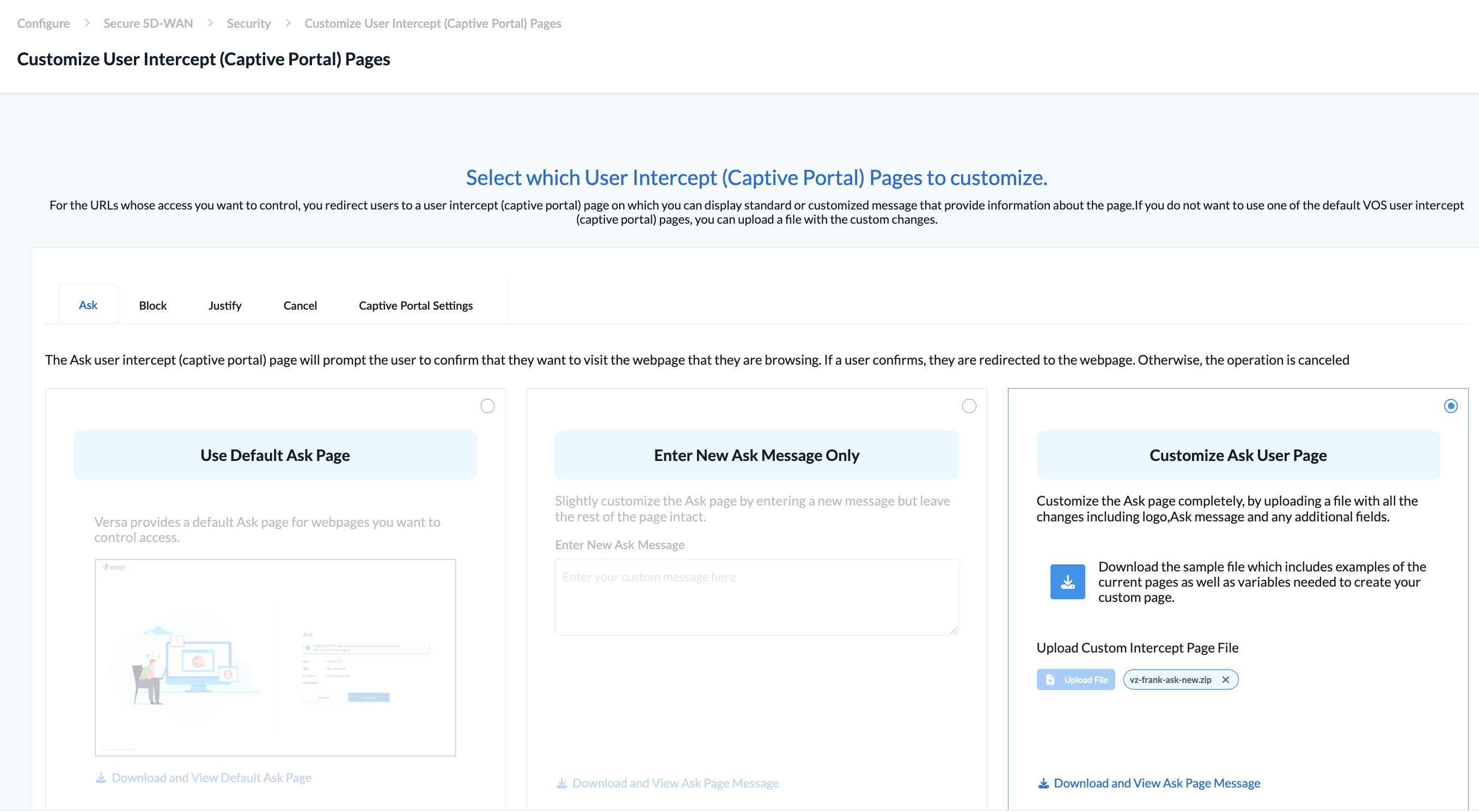

  2. The Customize User Intercept (Captive Portal) Pages screen displays. From here, you can configure a captive portal page for one of the following actions:
    • Ask—The captive portal page prompts the user to confirm that they want to visit the webpage that they are browsing. If a user confirms, they are redirected to the webpage. Otherwise, the operation is canceled.
    • Block—The captive portal page denies the user access to the webpage.
    • Justify—The captive portal page prompts the user to enter a justification message before allowing them to continue to the requested webpage.
    • Cancel—The captive portal page prompts the user to confirm that they want to visit the webpage that they are browsing. If the user confirms, they are redirected to the webpage. Otherwise, the operation is canceled.


Configure the Ask Action

  1. On the Customize User Intercept (Captive Portal) Pages screen, select the Ask tab.
  2. To display the default Ask captive portal page that Versa provides, click Use Default Ask Page.

  3. To view the default Ask page, click Download and View Default Page to download the file. The file is in .zip format.
  4. To edit the Ask message on the default page, click Enter New Ask Message Only.

  5. Enter the message in the Enter New Ask Message field.
  6. To view the updated Ask captive portal page, click Download and View Page Changes. To view the updates, you can also save the .zip file.
  7. To upload and display a custom Ask captive portal page, which can include a different logo, a message, and new fields, click Customize Ask User Page.

  8. To download the sample page, which is a .zip file, click the download-icon.png Download icon.
  9. To upload a custom Ask captive portal page, click Upload File and then select the file. The files for the captive portal webpage must be in a single .zip file. The main index file in the .zip file must be named index.htm, and it must contain the HTML, CSS, and image files for the custom captive portal page.
  10. To view the custom Ask page, click Download and View Custom Page.
  11. Click Submit.

Configure the Custom Portal Page for a Block Action

  1. On the Customize User Intercept (Captive Portal) Pages screen, select the Block tab.
  2. To display the default Block captive portal page that Versa provides, click Use Default Block Page.

  3. To view the default Block page, click Download and View Default Page to download the file. The file is in .zip format.
  4. To edit the Block message on the default page, click Enter New Block Message Only.

  5. Enter the message in the Enter New Block Message field.
  6. To view the updated Block captive portal page, click Download and View Page Changes. To view the updates, you can also save the .zip file.
  7. To upload and display a custom Block captive portal page, which can include a different logo, a message, and new fields, click Customize Block User Page.

  8. To download the sample page, which is a .zip file, click the download-icon.png Download icon.
  9. To upload a custom Block captive portal page, click Upload File and then select the file. The files for the captive portal webpage must be in a single .zip file. The main index file in the .zip file must be named index.htm, and it must contain the HTML, CSS, and image files for the custom captive portal page.
  10. To view the custom Block page, click Download and View Custom Page.
  11. Click Submit.

Configure the Custom Portal Page for a Justify Action

  1. On the Customize User Intercept (Captive Portal) Pages screen, select the Justify tab.
  2. To display the default Justify captive portal page that Versa provides, click Use Default Justify Page.

  3. To view the default Justify page, click Download and View Default Page to download the file. The file is in .zip format.
  4. To edit the justify message in the default page, click Enter New Justify Message Only.

  5. Enter the message in the Enter New Justify Message field.
  6. To view the updated Justify captive portal page, click Download and View Page Changes. To view the updates, you can also save the .zip file.
  7. To upload and display a custom Justify captive portal page, which can include a different logo, a message, and new fields, click Customize Justify User Page.

  8. To download the sample page, which is a .zip file, click the download-icon.png Download icon.
  9. To upload a custom Justify captive portal page, click Upload File and then select the file. The files for the captive portal webpage must be in a single .zip file. The main index file in the .zip file must be named index.htm, and it must contain the HTML, CSS, and image files for the custom captive portal page.
  10. To view the updated Justify captive portal page, click Download and View Page Changes. You can save the .zip file to view the updates.
  11. Click Submit.

Configure the Custom Portal Page for a Cancel Action

  1. On the Customize User Intercept (Captive Portal) Pages screen, select the Cancel tab.
  2. To display the default Cancel captive portal page that Versa provides, click Use Default Cancel Page.

  3. To view the default Cancel page, click Download and View Default Page to download the file. The file is in .zip format.
  4. To edit the Cancel message in the default page, click Enter New Cancel Message Only.

  5. Enter the message in the Enter New Cancel Message field.
  6. To view the updated Cancel captive portal page, click Download and View Page Changes. To view the updates, you can also save the .zip file.
  7. To upload and display a custom Cancel captive portal page, which can include a different logo, a message, and new fields, click Customize Ask User Page.

  8. To download the sample page, which is a .zip file, click the download-icon.png Download icon.
  9. To upload a custom Justify captive portal page, click Upload File and then select the file. The files for the captive portal webpage must be in a single .zip file. The main index file in the .zip file must be named index.htm, and it must contain the HTML, CSS, and image files for the custom captive portal page.
  10. To view the updated Cancel captive portal page, click Download and View Page Changes. You can save the .zip file to view the updates.
  11. Click Submit.

View or Add CA Certificates for Captive Portal

You can select the certificate authority (CA) certificate to use for the captive server portal over SSL.

To select a CA certificate:

  1. On the Customize User Intercept (Captive Portal) Pages screen, select the Captive Portal Settings tab.

  2. To associate an existing CA certificate with the captive portal, select a certificate in the Previously Uploaded Certificates field. The certificate details display.

  3. Click Download Certificate to save and view the certificate.
  4. To add a new CA certificate, select + Create New in the Previously Uploaded Certificates field.
  5. In the Add Certificate/CA-Chain/Private Key window, enter information for the following fields.


    Field Description
    Select Certificate Type Select CA Certificate.
    Certificate Name Enter a name for CA certificate.
    CA Chain Name Select a name for the CA chain. A certificate chain is an ordered list of certificates, containing an SSL/TLS certificate and CA certificates, that allow the receiver to verify that the sender and all CAs are trustworthy.
    Pass Phrase Enter the pass-phrase key, or password, to use to encrypt the certificate file.
    Upload Certificate/Key Bundle File Click to upload the CA certificate. The file must be in .zip format and must contain a key file and a certificate file.
  6. Click Add.

Supported Software Information

Releases 13.1.1 and later support all content described in this article.
