For supported software information, click here.

This article describes how to monitor Concerto.

You can monitor the following components of Concerto from the Concerto UI:

Concerto nodes—Monitor node reachability and current node status.
Concerto database—Monitor the status of the Concerto database. To provide distribution and high availability for the database across nodes, Concerto uses the PostgreSQL distributed database system and the Patroni tool. Patroni works in conjunction with Apache ZooKeeper to provide database node monitoring and automatic failover services.
Service processes—Monitor the state of Concerto service processes, such as the GlusterFS distributed file system and Apache ZooKeeper.

View Concerto Node Status

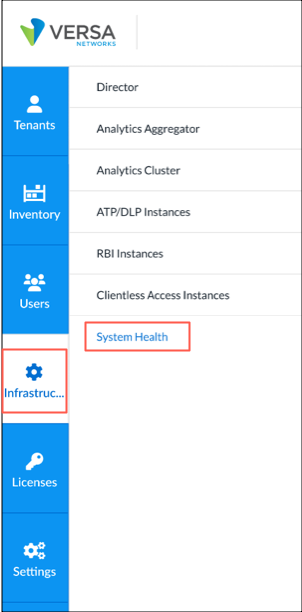

To view the status of Concerto nodes, in service provider view, select Infrastucture > System Health.

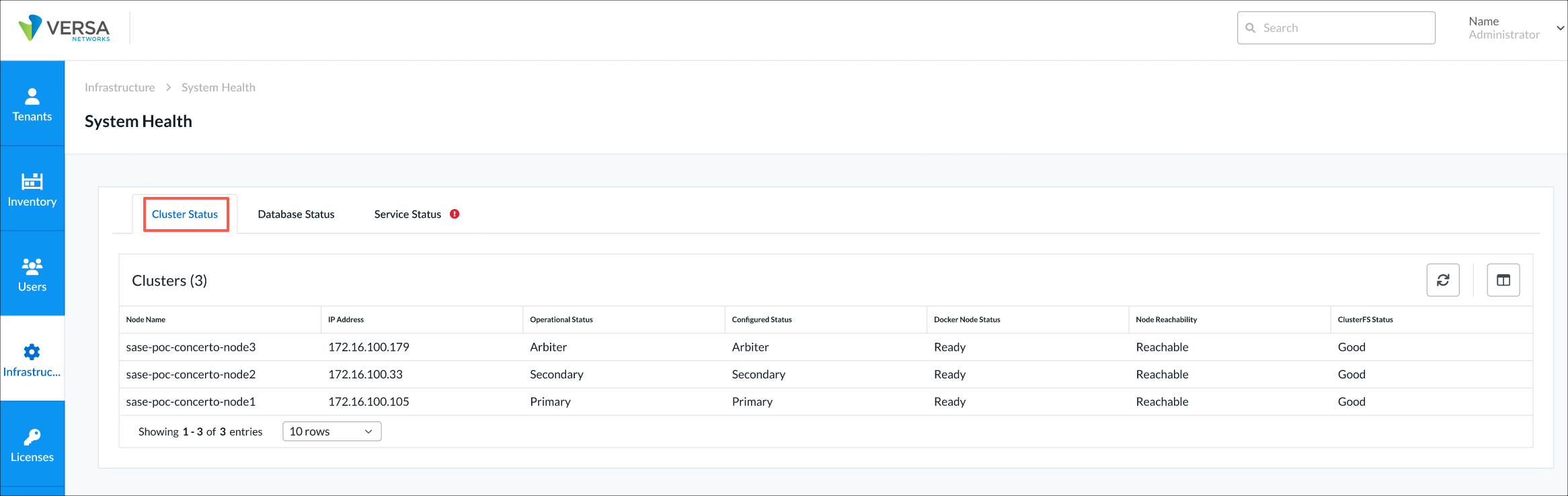

The following screen displays.

Field	Description
Node Name	Name of the Concerto node.
IP Address	IP address of the Concerto node.
Operational Status	Current role of the node: Primary Secondary Arbiter For more information about roles, see Install Concerto.
Configured Status	Role assigned to the node during initial installation: Primary Secondary Arbiter
Docker Node Status	Docker node status: Down Ready
Node Reachability	Reachability of the node.
Cluster FS Status	Status of the file system on the node. Concerto uses the GlusterFS distributed file system.

View Concerto Database Status

Database status includes information for the Patroni PostgreSQL cluster that runs on the nodes in the Concerto instance. Patroni provides high availability and automatic failover for PostgreSQL.

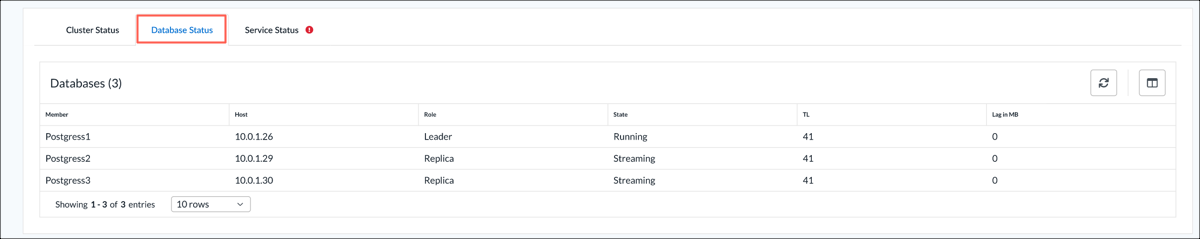

To view the status of the Concerto database, in service provider view, select Infrastructure > System Health > Database Status.

The following fields display:

Field	Description
Member	Patroni member name.
Host	IP address where the member is located.
Role	Current Patroni role of the member: Leader—Current leader of Patroni cluster Standby & Leader—Current leader of Patroni standby cluster Sync & Standby—Synchronous standby of Patroni cluster, with synchronous mode enabled Replica—Regular standby of Patroni cluster
State	Patroni replication state: Running Streaming—Connected to leader, which streams records as they are generated
TL	Timeline for the Patroni member.
Lag in MB	Replication lag, in megabytes.

View the Status of Concerto Service Processes

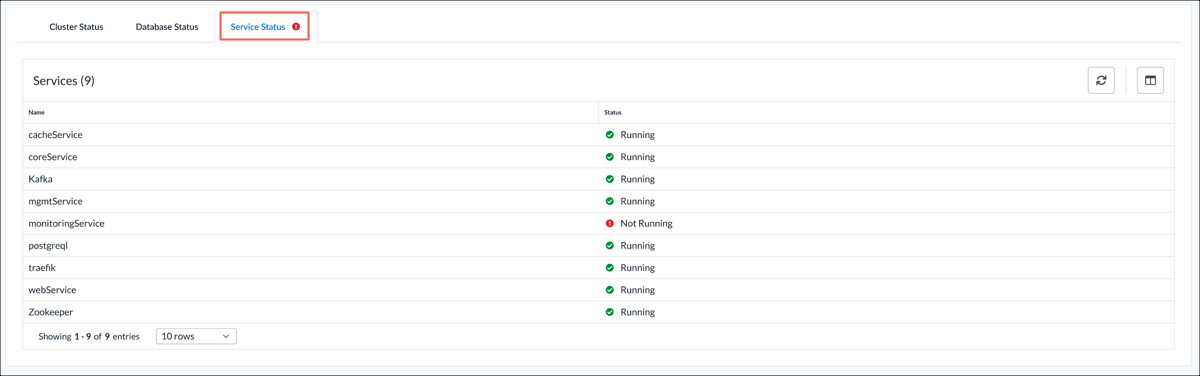

In service provider view, select Infrastructure> System Health > Service Status.

Supported Software Information

Releases 13.1.1 and later support all content described in this article.

Additional Information

Install Concerto
