Install Concerto in Releases 12.2.2 and Earlier

Before You Begin

Before you install a Concerto node, you should set up the Versa Director, Controller, and Analytics (DCA) complex.

To set up the Versa DCA complex:

1. Create and initialize a Versa Director node with or without high availability (HA]. See Set Up Director in Perform Initial Software Configuration.
2. Create a provider organization. See Create Provider Organizations in Configure Basic Features.

3. Create and deploy the Controller nodes. See Set Up an SD-WAN Controller in Perform Initial Software Configuration.
4. Create an Analytics cluster. See Set Up Analytics in Perform Initial Software Configuration.

Install a Concerto Node in Standalone Mode

1. Install a Concerto node on bare metal servers using the ISO file, or create a virtual machine using the qcow2 or OVA file. Each node must have two network interfaces:
   • One interface for northbound communication, which allows access to the portal UI from the internet. On the northbound interface, configure firewalls to allow only TCP ports 80 and 443 to be used to access the portal UI from the internet.
   • One interface for southbound communication, which is used for docker overlay communications and for communication with Versa Director and Versa Analytics nodes.
2. Log in to the node with the username and password.
3. In the shell, configure the hostname of the Concerto node:

   admin@concerto-1:~$ sudo hostnamectl set-hostname hostname


   For example:

   admin@concerto-1:~$ sudo hostnamectl set-hostname Concerto-1


4. Map that hostname to IP address 127.0.1.1 in the /etc/hosts file:

   admin@concerto-1:~$ sudo vi /etc/hosts


   For example:

   127.0.1.1    Concerto-1

   # The following lines are desirable for IPv6 capable hosts
   ::1     localhost ip6-localhost ip6-loopback
   ff02::1 ip6-allnodes
   ff02::2 ip6-allroutes

5. Configure the management IP address of the Concerto node and gateway in the /etc/network/interfaces file:

   admin@concerto-1:~$ sudo vi /etc/network/interfaces


6. Initialize the Concerto node by issuing the vsh cluster init command and entering the required information. Enter 1 in response to the "Enter the number of nodes needed for the cluster" prompt to set the Concerto node to run in standalone mode.

admin@concerto-1:~$ vsh cluster init

ARE YOU SURE, YOU WANT TO INITIALIZE THE CONCERTO SETUP? OLD CONFIGS WILL BE DELETED - Y/N: y
Enter the number of nodes needed for the cluster: 1
--------------------------------------------------------------------------------
Enter the IP address for node 1: 10.40.159.181
Enter the Public/External IP address or FQDN for node 1 [Press enter to reuse the node IP]:
Enter the username for node 1: admin
Enter the password for node 1: *****
Enter the number of replicas of core services to run in the cluster [Press enter to use default settings]:

4. Start the Concerto services by issuing the vsh start command. It takes a few minutes for all the services to initialize.

admin@concerto-1:~$ vsh start
     __     __                     ____                          _
    \ \   / /__ _ __ ___  __ _   / ___|___  _ __   ___ ___ _ __| |_ ___
     \ \ / / _ \ '__/ __|/ _` | | |   / _ \| '_ \ / __/ _ \ '__| __/ _ \
      \ V /  __/ |  \__ \ (_| | | |__| (_) | | | | (_|  __/ |  | || (_) |
       \_/ \___|_|  |___/\__,_|  \____\___/|_| |_|\___\___|_|   \__\___/

=> Initializing Docker Swarm
=> Creating Docker Networks
=> Deploying Traefik loadbalancer...
=> Deploying Zookeeper and Kafka...
=> Deploying Miscellaneous services...
=> Deploying PostgreSQL service...
=> Waiting for PostgreSQL to start...
=> Deploying Flyway service...
=> Flyway migration suceeded
=> Cleaning stale consumer groups in kafka...
=> Deploying Hazelcast cache service...
=> Deploying Solr search service...
=> Deploying System Monitoring service...
=> Deploying Concerto services...

5. Check the status of the Concerto services to ensure that they are all in the Running state.

admin@concerto-1:~$ vsh status
postgresql            is Running
zookeeper             is Running
kafka                 is Running
solr                  is Running
glances               is Running
mgmt-service          is Running
web-service           is Running
cache-service         is Running
core-service          is Running
monitoring-service    is Running
traffic               is Running

6. Display information about the Concerto node.

admin@concerto-1:~$ vsh cluster info

Concerto Cluster Status
---------------------------------------------------
   Node Name:              concerto-1
   IP Address:             10.40.159.181
   Operational Status:     primary
   Configured Status:      primary
   Docker Node Status:     ready
   Node Reachability:      reachable
   GlusterFS Status:       good

Install Concerto Nodes in Cluster Mode

You can deploy Concerto cluster nodes in two modes:

• All nodes in the cluster are of the same type and have the same role. This mode is recommended for deployments in which all the Concerto nodes are colocated in a single availability zone or data center, as shown in the following figure.



• Nodes are categorized as primary, secondary, and arbiter. This mode is recommended for deployments that require geographic redundancy and in which the nodes are spread across different availability zones or data centers, as shown in the following figure.



The following points are recommended when deploy Concerto cluster nodes:

• Network  latency between nodes in milliseconds—Versa recommends latency between all node types to be less than 40ms.
• Provisioning an arbiter node—Since an arbiter node is mainly used to break the tie in a quorum, usually they are provisioned with low CPU, memory and disk. For that reason, we suggest that you do not keep the replica, even when the latency is below 40ms. If an arbiter node has an equal level of resources matching the primary/secondary nodes, then a Postgres replica can be configured for region-based redundancy, since we recommend that nodes types (primary/secondary/arbiter) be kept in three different regions.
• Enter the number of replicas of core services to run in the cluster—This value is proportional to number of primary nodes.
  • 3-node cluster with 1 primary node, 1 secondary node, and 1 arbiter node can have a maximum of 1 core service replica
  • 5-node cluster with 2 primary nodes, 2 secondary nodes, and 1 arbiter node can have a maximum of 2 core service replicas
• Postgres—Concerto needs a minimum of three Postgres containers, spread across the primary, secondary, and arbiter node types. In case the cluster is provisioned with more nodes, such as a 9-node cluster with 4 primary nodes, 4 secondary nodes, and 1 arbiter node, you can deploy Concerto with just three Postgres replicas, one in the primary node, one in the secondary node, and one in the arbiter node. The key point to keep in mind when installing Concerto nodes in cluster mode is to distribute the Postgres across different zones/regions for disaster recovery.

To install Concerto cluster nodes:

1. Create a Concerto instance for each of the nodes using the Concerto ISO or qcow2 image. Each node must have two network interfaces:
   • One interface for northbound communication, which allows access to the portal UI from the internet. On the northbound interface, configure firewalls to allow only TCP ports 80 and 443, which are used to access the portal UI from the internet.
   • One interface for southbound communication, which is used for Docker overlay communications and for communication with Versa Director and Versa Analytics nodes.
2. Initialize the cluster by logging into any of the Concerto nodes and then issuing the vsh cluster init command. The following table describes the prompts displayed by the vsh cluster init command.


   Prompt	Description
   Enter the number of nodes needed for the cluster	Enter the number of nodes in the cluster. In cluster mode, a minimum of three nodes are required. Setting the value to 1 sets the Concerto node to run in standalone mode.
   Enter the Public/External IP address or FQDN for node x	If the Versa Director node communicates with the Concerto cluster using a public (external) IP address or FQDN, enter the IP address or FQDN.
   Enter the username for node x Enter the password for node x	Enter the user credentials for SSH login to the node.
   Select the node type: Primary Secondary Arbiter Select the value:	Label each node for a particular role. For a simpler deployment, you can label all nodes as type Primary. For deployments requiring geographic redundancy, you label the nodes differently based on the role assigned to them. For example, in a deployment that has three availability zones (AZ-1, AZ-2, and AZ-3), you can assign two nodes as Primary node types (AZ-1), two nodes as Secondary node types (AZ-2), and one node as an Arbiter node type (AZ-3). Nodes of the same node type must be colocated in the same availability zone.
   Enter the number of replicas of core services to run in the cluster	Determines the number of instances of core services, web services, and monitoring services to deploy in the cluster. All these attributes are included in the /var/versa/ecp/share/config/clusterconfig.json file. Note: The number of replicas is proportional to the number of primary nodes. For example: 3-node cluster with 1 primary node, 1 secondary node, and 1 arbiter node can have a maximum of 1 core service replica 5-node cluster with 2 primary nodes, 2 secondary nodes, and 1 arbiter node can have a maximum of 2 core service replicas

admin@concerto-1:~$ vsh cluster init
ARE YOU SURE, YOU WANT TO INITIALIZE THE CONCERTO SETUP? OLD CONFIGS WILL BE DELETED - Y/N: y
Enter the number of nodes needed for the cluster: 3
--------------------------------------------------------------------------------
Enter the IP address for node 1: 10.48.7.81
Enter the Public/External IP address or FQDN for node 1 [Press enter to reuse the node IP]: concerto-1.versa-networks.com
Enter the username for node 1: admin
Enter the password for node 1: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 1
--------------------------------------------------------------------------------
Enter the IP address for node 2: 10.48.7.82
Enter the Public/External IP address or FQDN for node 2 [Press enter to reuse the node IP]: concerto-2.versa-networks.com
Enter the username for node 2: admin
Enter the password for node 2: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 1
--------------------------------------------------------------------------------
Enter the IP address for node 3: 10.40.30.80
Enter the Public/External IP address or FQDN for node 3 [Press enter to reuse the node IP]: concerto-3.versa-networks.com
Enter the username for node 3: admin
Enter the password for node 3: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 1
Enter the number of replicas of core services to run in the cluster [Press enter to use default settings]:

admin@concerto-1:~$ vsh cluster info
Concerto Cluster Status
---------------------------------------------------
    Node Name:              concerto-3
    IP Address:             10.40.30.80
    Operational Status:     primary
    Configured Status:      primary
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good

    Node Name:              concerto-1
    IP Address:             10.48.7.81
    Operational Status:     primary
    Configured Status:      primary
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good

    Node Name:              concerto-2
    IP Address:             10.48.7.82
    Operational Status:     primary
    Configured Status:      primary
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good
---------------------------------------------------

admin@concerto-1:~$ vsh cluster init
ARE YOU SURE, YOU WANT TO INITIALIZE THE CONCERTO SETUP? OLD CONFIGS WILL BE DELETED - Y/N: y
Enter the number of nodes needed for the cluster: 3
--------------------------------------------------------------------------------
Enter the IP address for node 1: 10.48.7.81
Enter the Public/External IP address or FQDN for node 1 [Press enter to reuse the node IP]: concerto-1.versa-networks.com
Enter the username for node 1: admin
Enter the password for node 1: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 1
--------------------------------------------------------------------------------
Enter the IP address for node 2: 10.48.7.82
Enter the Public/External IP address or FQDN for node 2 [Press enter to reuse the node IP]: concerto-2.versa-networks.com
Enter the username for node 2: admin
Enter the password for node 2: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 2
--------------------------------------------------------------------------------
Enter the IP address for node 3: 10.40.30.80
Enter the Public/External IP address or FQDN for node 3 [Press enter to reuse the node IP]: concerto-3.versa-networks.com
Enter the username for node 3: admin
Enter the password for node 3: *****
Select the node type:
1. Primary
2. Secondary
3. Arbiter
Select the value: 3
Enter the number of replicas of core services to run in the cluster [Press enter to use default settings]:

admin@concerto-1:~$ vsh cluster info
Concerto Cluster Status
---------------------------------------------------
    Node Name:              concerto-2
    IP Address:             10.48.7.82
    Operational Status:     secondary
    Configured Status:      secondary
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good

    Node Name:              concerto-1
    IP Address:             10.48.7.81
    Operational Status:     primary
    Configured Status:      primary
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good

    Node Name:              concerto-3
    IP Address:             10.40.30.80
    Operational Status:     arbiter
    Configured Status:      arbiter
    Docker Node Status:     ready
    Node Reachability:      reachable
    GlusterFS Status:       good

---------------------------------------------------

Attach a Concerto Portal to a Versa DCA Complex

If multiple Versa Director complexes are attached to the same Concerto portal, configure each Director node with non-overlapping overlay address prefixes, device ID ranges, and Controller ID ranges after the Director nodes are installed but before any Controller nodes are created on the Director nodes.

1. In Director view, select the Administration tab in the top menu bar.
2. Select SD-WAN > Settings in the left menu bar. The Settings dashboard screen displays.



3. Click the Add icon in the Overlay Address Prefixes pane. The Overlay Address screen displays.



4. In the Prefix field, enter a non-overlapping overlay address prefix.
5. Click OK.
6. Select SD-WAN > Global ID Configuration in the left menu bar. The following screen displays.

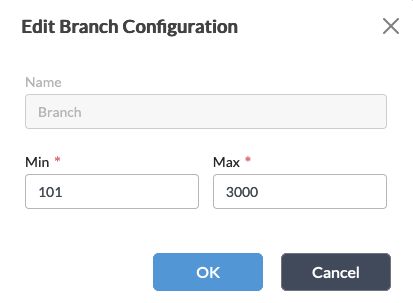

7. To configure the device ID range on the Director node, click Branch in the main pane.
8. In the Edit Branch Configuration popup window, enter the Minimum and Maximum device ID range values.


9. Click OK.

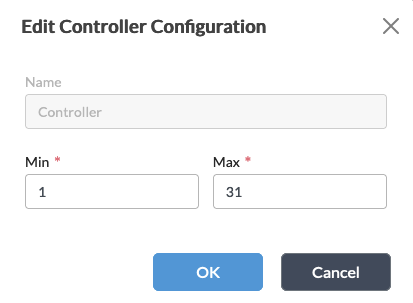

10. To configure the Controller ID range on the Director node, click Controller in the main pane.
11. In the Edit Controller Configuration popup window, enter the Minimum and Maximum Controller ID range values.


12. Click OK.
13. (For releases 21.2.3 and earlier.) Configure the device and Controller ID ranges on the Director node using the CLI.
    1. To configure the device ID range, issue the following CLI command:

       admin@Director% set nms sdwan global-config branch-id-range

    2. To configure the Controller ID range, issue the following CLI command:

       admin@Director% set nms sdwan global-config controller-id-range​​​

Create a Director Cluster

A Director cluster is a pair of Director nodes that are configured for HA. Each pair of Director nodes in a cluster operates in active–standby mode.

To add a Director cluster in the Concerto portal:

1. Log in to Concerto as an administrator. The Tenants home screen displays.

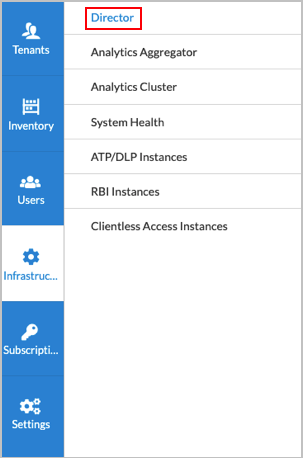

2. In the left menu bar, select Infrastructure > Director.



   The following screen displays.




3. Click the  Add icon. In the Add Director screen, enter information for the following fields.



   Field	Description
   Name	Enter a name for the Director.
   Is Default	Click the Is Default slide bar to have the new Director node be the default Director node. The default Director node authenticates all Administrator users, whether the users are local or internal to the Director node.
   View Summary
   Username
   Password	Enter a password that the Concerto orchestrator uses to enable server-to-server communication with the Director node using REST API calls. You can configure a separate password for each Director cluster. The password should have at least one uppercase character, one digit, and one special character. Note that this password is not the password for the Director cluster or for the Concerto orchestrator. It is used solely to enable communication between the Concerto orchestrator and the Director cluster.
   Services Provided by Director	(For Releases 11.3.2 and later.) Select the services that the Director provides: Secure SD-WAN—Director supports only Secure SD-WAN gateways. Security Service Edge (SSE)—Director supports only Security Service Edge gateways. When you later create a tenant and select the services for that tenant, you can select only the Directors that support that service. For example, if you select only the Secure SD-WAN service for tenant and then select the Director or Directors for the tenant, only the Directors that support Secure SD-WAN are displayed.
   Primary Address	Enter the IP addresses of the primary Director.
   Secondary Address	Enter the IP addresses of the secondary Director.

4. Click Submit. The Director cluster is created.
5. On the Infrastructure screen, select the listing for the Director you just created, then click the More Actions menu in the upper right corner and select Discover Tenants to have Concerto discover the provider tenants.


6. In the Discover Tenants popup window, enter the username and password for the provider. The screen then displays the discovered Controller nodes and the solution tiers for the new Director node.



7. To verify that the tenants have been discovered, select Tenants in the left navigation bar and view the list of tenants.
8. To check connectivity to the Director, select the listing for the Director you just created, then click the More Actions menu in the upper right corner and then select Check Connectivity.



   The screen shows whether the connection to the Director was successful.
