Cloud Services Modem 64 Series

At a Glance

The Cloud Services Modem 64 (CSM64) series enables high performance 5G WAN connectivity for enterprises connected with Versa secure SD-WAN. The CSM64 series supports FR1/sub-6 class 5G-based connectivity and can operate in standalone or non-standalone mode for deployments that require high performance, flexibility, and agility.

The CSM64 series is powered by Power over Ethernet (PoE) with selected CSG series appliances and CSG NICs. The CSM64 appliance can connect to the PoE-enabled CSG appliance with a standard Ethernet cable, consume power from the network appliance, and does not need any alternative power source. Other PoE sources, such as a PoE Ethernet switch or a PoE injector, can also be used to connect to CSM64 series appliances. You can connect the CSM64 series appliance to a VOS appliance for WAN connectivity. Depending on the network topology and power requirements, you can also connect a CSM64 series appliance to the switch infrastructure.

The Kensington security lock on the left-side panel of a CSM64 series appliance is a small metal-enforced hole for attaching a physical lock to secure the appliance.

Table 1 lists the functions and features of the CSM64 series:

Table 1: CSM64 Series Functions and Features

Function	Features
RF	3G/4G 5G mm W supports TDD and 64 QAM for UL/DL 5G sub-6 GHz supports 256 QAM for UL/DL
SIM card slot	Dual nano SIM card holder
Application processor (embedded M.2 module)	32 bit ARM Cortex-A7 up to 1.5 GHz running the Linux operating system 4-Gigabit NAND Flash + 4-Gigabit LPDDR4 MCP
Ethernet	100/1000/2500G Base-T One RJ-45 Power over Ethernet (PoE) port
Power	802.3at PoE+ 12v DC-Jack power adapter
USB	USB 3.1 Gen2 10-Gbps One Type C port
RESET	Remote reset capability
LED	RJ-45 integrated link and activity LED System power LED Software-driven system status LED Software-driven cloud LED

CSM64 series appliances with the installed 5G module are certified to be operated across different geographic regions. These appliances are firmware-based smart modems that allow updates to cover patches, introduce new features, and adapt to changes in carrier network deployments. The embedded 5G module supports in-device upgrades driven by the CLI or GUI, or over the air (OTA) upgrades to facilitate easy firmware updates. Firmware-based operation allows Versa Networks modems to connect to 5G, LTE-A Pro, LTE-A, LTE, and 4G networks with flexibility.

The Versa Networks 5G module also supports security features such as secure boot for anti-tamper protection.

CSM64 Appliance Models

The CSM64 series appliance is available in the following models:

CSM64—For indoor deployments
CSM64b—For outdoor deployments

Chassis Views

Front Panel

The front panel of a CSM64 series appliance has two inputs for RF connector antennas and two nano-SIM card slots, as shown in Figure 1:

Figure 1: Front Panel of CSM64 Series Appliance

SIM Card Slots

The CSM64 series appliance has two externally accessible nano-SIM card slots, while only one SIM card is active and connected. If you insert SIM cards in SIM1 and SIM2, administrators can configure the SIM slot for connecting to the mobile network. The SIM card chosen for 5G connection can be switched dynamically based on predefined criteria.

Note: It is recommended that you use only preactivated 5G SIMs in the SIM card slots. After you insert the SIM cards, they are auto-detected by the platform, and the platform connects to the recognized 5G (or LTE-A Pro/LTE-A/ LTE/4G) network.

Rear Panel

Figure 2 shows the rear panel of the CSM64 series appliance.

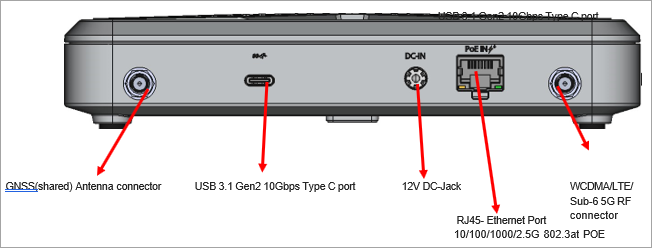

Figure 2: Rear Panel of CSM64 Series Appliance

Side Panel

The Kensington security lock is used to physically lock down the appliance. Figure 3 shows the location of the lock on the left-side panel of the CSM64 series appliance.

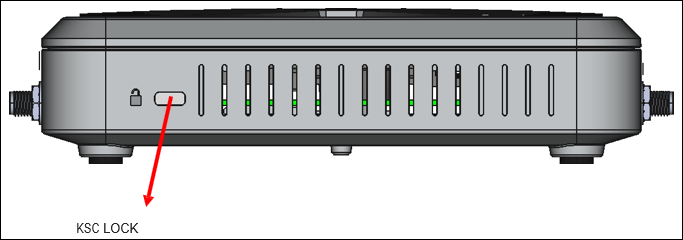

Figure 3: Left-side Panel of CSM64 Series Appliance

LEDs

Status LEDs provide the operational status of the appliance and interfaces. Table 2 lists the LEDs, their colors and states, and the status they indicate.

Table 2: LED Status in a CSM64 Series Appliance

LED	Color/State	Status
Network	White Solid	Solid white—LTE/4G connection is established (independent of VOS connection). Off—LTE/4G is not installed or not connected.
Status	Green, Red	Solid green—System connection is up and running. This indicates that the Dynamic Host Configuration Protocol (DHCP) lease with the vendor option and VOS IP address connectivity are up. Blinking green—The DHCP lease connection is in the process of being established. Solid red—Ethernet cable is not connected or link is down. Blinking red—The device has acquired the DHCP lease connection but the DHCP lease is not connected with the vendor option and VOS IP address.
Cloud	Green, Red	Solid green—The device is connected to VOS. Blinking green—The device is trying to connect to VOS after loosing connection. Solid red—The device is not connected to VOS.

Chassis Specifications

CSM64 Appliance

Table 3 lists the chassis specifications and mobile frequency band coverage specifications for a CSM64 series chassis.

Table 3: CSM64 Series Chassis Specifications

Item	Specifications
Wired interface	One RJ45 management port 10/100/1000/2500 NBASE-T
USB	USB 3.0 Type-A
Modem	Sub-6 FR1 (3GPP Release 15) with CAT-20/CAT-18 LTE-A Pro, HSPA+ support
5G category	Sub-6, FR1 120 MHz, 2CC CA DL
5G bands (NSA & SA)	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
LTE category	CAT20
LTE cands (FDD & TDD combined)	B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71
UMTS/WCDMA bands	B1, B2, B3, B4, B5, B6, B8, B19
5G maximum speed	5G FR1 NSA DL: 3.4 Gbps, UL: 460 Mbps 5G FR1 SA: DL: 2.5 Gbps, UL: 900 Mbps
Antenna	4 x 4 MIMO
Global positioning	GNSS support
Tx power	Up to 26 dBm 23 dBm (power class 3) 26 dBm (power class 2) in B41/n41
Power supply unit (optional)	Mid-span PoE injector
PoE input	PoE class 0 mid-span PoE injector
Mechanical Specifications
Length	180 mm (+/- 0.15 mm tolerance)
Width	140 mm (+/- 0.15 mm tolerance)
Thickness	36 mm (+/- 0.15 mm tolerance)
Weight	TBD
Cooling	Convection Cooled
Mounting	Wall mount, desktop, and shelf placement options
Operating temperature	-5 to 40⁰ C
Storage temperature	-40 to 80⁰ C
FCC classification	FCC Class B

CSM64b Appliance

Table 4 lists the chassis specifications and mobile frequency band coverage specifications for a CSM64b series chassis.

Table 4: CSM64b Series Chassis Specifications

Item	Specifications
Wired interface	One RJ45 management port 10/100/1000/2500 NBASE-T
USB	USB 3.0 Type-A
Modem	Sub-6 FR1 (3GPP Release 15) with CAT-20/CAT-18 LTE-A Pro, HSPA+ support
5G category	Sub-6, FR1 120 MHz, 2CC CA DL
5G bands (NSA & SA)	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
LTE category	CAT20
LTE cands (FDD & TDD combined)	B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71
UMTS/WCDMA bands	B1, B2, B3, B4, B5, B6, B8, B19
5G maximum speed	5G FR1 NSA DL: 3.4 Gbps, UL: 460 Mbps 5G FR1 SA: DL: 2.5 Gbps, UL: 900 Mbps
Antenna	Bolt-on
Global positioning	GNSS support
Tx power	Up to 26 dBm 23 dBm (power class 3) 26 dBm (power class 2) in B41/n41
Power supply unit (optional)	Mid-span PoE injector
PoE input	PoE class 0 mid-span PoE injector
Mechanical Specifications
Length	180 mm (+/- 0.15 mm tolerance)
Width	140 mm (+/- 0.15 mm tolerance)
Thickness	36 mm (+/- 0.15 mm tolerance)
Weight	TBD
Cooling	Convection cooled
Mounting	Wall mount, pole mount, and desktop
Operating temperature	-25 to 70 C
Storage temperature	-40 to 80 C
FCC classification	FCC Class A

CSM64 Appliance SKUs

The CMS64 series appliance is available in the following SKUs, which differ in terms of accessories and packaging:

USB SKU
- Four 5G/LTE antennas
- 1-meter USB cable
- 12V DC power supply or PoE injector
- Ceiling mount bracket
Ethernet SKU
- Four 5G/LTE antennas
- Ceiling mount bracket

Power Supply Requirements

The CMS64 series appliances are powered using a 12V 1A DC adapter or a PoE injector. The appliance supports 802.3 at PoE+ (30 W).

Installation Guidelines

You can install the CSM64 series appliance within the site to enhance signal coverage, subject to Ethernet distance limitations. Typical deployment preference for CSM64 is closer to windows facing signal reception path and façade.

You can mount a CSM64 appliance on a wall or ceiling, or you can keep it on a desk. For mounting on a wall or ceiling, the appliance is shipped with a wall/ceiling mount accessory and four M3 screws.

To mount a CSM64 appliance on a wall or ceiling, and to connect:

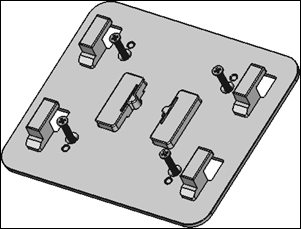

Attach the mount accessory to the wall or ceiling using the four M3 screws that are shipped with the appliance. Do not overtighten the screws.

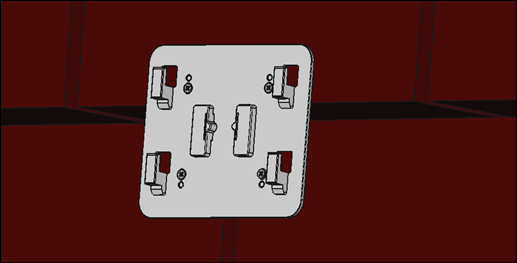

Apply the mount accessory to the wall or ceiling.

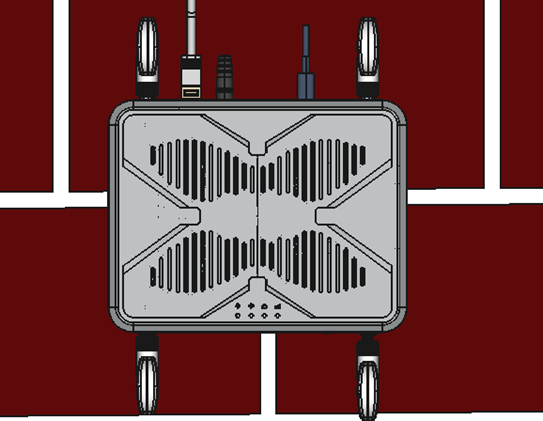

Attach the CSM64 appliance to the mount accessory using the provided hooks, and gently press down to complete the pairing procedure. You should hear a mechanical click sound indicating that the appliance is correctly joined to the mount accessory.
Install the antennas and Ethernet cable for the PoE injector to a router or switch with PoE.

Or use the 12V DC adapter and the Ethernet cable to provide connectivity to other equipment.

After mounting and connecting the CSM64 series appliance, you can check the operation and status of the appliance. See LEDs.

FCC Regulatory Notices

Interference Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation of the device.

Modification Statement

Versa Networks has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user‘s authority to operate the equipment.

FCC Class B Digital Device Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Supplier's Declaration of Conformity

Product Name: Cloud Services Modem
Model No: CSM64
Company Name: Versa Networks
Address: 2550 GREAT AMERICA WAY SUITE 350 SANTA CLARA, CA 95054
Contact Name: Rahul Vaidya
Contact Phone Number: (408)385-7660

FCC Antenna Information

This radio transmitter has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Table 5: Maximum Antenna Gain for FCC in dBi

Frequency Band	Frequency (MHz)	CSM64A0
WCDMA Band 2	1850-1910 (UL), 1930-1990 (DL)	3.08
WCDMA Band 4	1710-1755 (UL), 2110-2155 (DL)	3.34
WCDMA Band 5	824-849 (UL), 869-894 (DL)	2.28
LTE Band 2	1850-1910 (UL), 1930-1990 (DL)	3.08
LTE Band 4	1710-1755 (UL), 2110-2155 (DL)	3.34
LTE Band 5	824-849 (UL), 869-894 (DL)	2.28
LTE Band 7	2500-2570 (UL), 2620-2690 (DL)	3.04
LTE Band 12	699-716 (UL), 729-746 (DL)	3.04
LTE Band 13	777-787 (UL), 746-756 (DL)	2.99
LTE Band 14	788-798 (UL), 758-768 (DL)	2.02
LTE Band 17	704-716 (UL), 734-746 (DL)	3.04
LTE Band 25	1850-1915 (UL), 1930-1995 (DL)	3.08
LTE Band 26	814-849 (UL), 859-894 (DL)	2.28
LTE Band 30	2305-2315 (UL), 2350-2360 (DL)	0.94
LTE Band 38	2570-2620 (TDD)	3.33
LTE Band 41	2496-2690 (TDD)	3.61
LTE Band 42	3400-3600 (TDD)	0.44
LTE Band 43	3600-3800 (TDD)	0.42
LTE Band 48	3550-3700 (TDD)	0.44
LTE Band 66	1710-1780 (UL), 2110-2200 (DL)	3.34
LTE Band 71	663-698 (UL), 617-652 (DL)	2.08
5G NR n2	1850-1910 (UL), 1930-1990 (DL)	3.08
5G NR n5	824-849 (UL), 869-894 (DL)	2.28
5G NR n7	2500-2570 (UL), 2620-2690 (DL)	3.04
5G NR n12	699-716 (UL), 729-746 (DL)	3.04
5G NR n13	777-787 (UL), 746-756 (DL)	2.99
5G NR n14	788-798 (UL), 758-768 (DL)	2.02
5G NR n25	1850-1915 (UL), 1930-1955 (DL)	3.08
5G NR n26	814-849 (UL), 859-894 (DL)	2.28
5G NR n30	2305-2315 (UL,) 2350-2360 (DL)	0.94
5G NR n38	2570-2620 (TDD)	3.33
5G NR n41	2496-2690 (TDD)	3.61
5G NR n48	3550-3700 (TDD)	0.44
5G NR n66	1710-1780 (UL,) 2110-2200 (DL)	3.34
5G NR n71	633-698 (UL,) 617-652 (DL)	2.8
5G NR n77	3300-4200 (TDD)	2.28
5G NR n78	3300-3800 (TDD)	1.19

Radio Frequency Exposure Information

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

IC Regulatory Notices

Interference Statement/Déclaration d'interférence

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

L’appareil ne doit pas produire de brouillage.
L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

IC Antenna Information

This radio transmitter has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Innovation, Sciences et Développement économique Canada a approuvé l'utilisation de ce transmetteur radio avec les types d'antenne énumérés ci-dessous, le gain maximal admissible étant indiqué. Les types d'antennes non inclus dans cette liste qui ont un gain supérieur au gain maximal indiqué pour tout type listé sont strictement interdits pour une utilisation avec cet appareil.

Table 6: Maximum Antenna Gain for IC in dBi/Gain d'antenne max pour ISED en dBi

Frequency Band	Frequency (MHz)	CSM64A0
WCDMA Band 2	1850-1910 (UL), 1930-1990 (DL)	3.08
WCDMA Band 4	1710-1755 (UL), 2110-2155 (DL)	3.34
WCDMA Band 5	824-849 (UL), 869-894 (DL)	2.28
LTE Band 2	1850-1910 (UL), 1930-1990 (DL)	3.08
LTE Band 4	1710-1755 (UL), 2110-2155 (DL)	3.34
LTE Band 5	824-849 (UL), 869-894 (DL)	2.28
LTE Band 7	2500-2570 (UL), 2620-2690 (DL)	3.04
LTE Band 12	699-716 (UL), 729-746 (DL)	3.04
LTE Band 13	777-787 (UL), 746-756 (DL)	2.99
LTE Band 14	788-798 (UL), 758-768 (DL)	2.02
LTE Band 17	704-716 (UL), 734-746 (DL)	3.04
LTE Band 25	1850-1915 (UL), 1930-1995 (DL)	3.08
LTE Band 26	814-849 (UL), 859-894 (DL)	2.28
LTE Band 30	2305-2315 (UL), 2350-2360 (DL)	0.94
LTE Band 38	2570-2620 (TDD)	3.33
LTE Band 41	2496-2690 (TDD)	3.61
LTE Band 42	3400-3600 (TDD)	0.44
LTE Band 43	3600-3800 (TDD)	0.42
LTE Band 48	3550-3700 (TDD)	0.44
LTE Band 66	1710-1780 (UL), 2110-2200 (DL)	3.34
LTE Band 71	663-698 (UL), 617-652 (DL)	2.08
5G NR n2	1850-1910 (UL), 1930-1990 (DL)	3.08
5G NR n5	824-849 (UL), 869-894 (DL)	2.28
5G NR n7	2500-2570 (UL), 2620-2690 (DL)	3.04
5G NR n12	699-716 (UL), 729-746 (DL)	3.04
5G NR n13	777-787 (UL), 746-756 (DL)	2.99
5G NR n14	788-798 (UL), 758-768 (DL)	2.02
5G NR n25	1850-1915 (UL), 1930-1955 (DL)	3.08
5G NR n26	814-849 (UL), 859-894 (DL)	2.28
5G NR n30	2305-2315 (UL,) 2350-2360 (DL)	0.94
5G NR n38	2570-2620 (TDD)	3.33
5G NR n41	2496-2690 (TDD)	3.61
5G NR n48	3550-3700 (TDD)	0.44
5G NR n66	1710-1780 (UL,) 2110-2200 (DL)	3.34
5G NR n71	633-698 (UL,) 617-652 (DL)	2.08
5G NR n77	3300-4200 (TDD)	2.28
5G NR n78	3300-3800 (TDD)	1.19

Radio Frequency Exposure Information/Informations d'Exposition RF

This device has been tested and meets applicable limits for Radio Frequency (RF) exposure.
This equipment must be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Cet appareil a été testé et répond aux limites applicables en matière d'exposition aux radiofréquences (RF).
Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
